A new, high-performance standard for belt-drive analog turntables, the TN-3B delivers precision sound for your favorite records using state-of-the-art engineering.
The TN-3B-SE is a stylish, sleek-looking belt-driven turntable with a built-in MM-type PHONO EQ amplifier.
It employs a new tonearm with a knife-edge, pivot-point bearings, collaborated with SAEC, the high-end tonearm manufacturer, for superlative stability and resolution. The belt-drive mechanism, meanwhile, helps mitigate any unwanted cogging effects (ie fine pulsing) from the operation of the motor, to ensure a precise and smooth platter rotation. The TN-3B-SE also employs a VM-type cartridge the AT-VM95E manufactured by Audio-Technica and a high-precision NJM8080 op-amp in its in-built Phono EQ amplifier, allowing the user to enjoy the sound of their vinyl records with low distortion and in high quality.
The TN-3B-SE delivers natural and well-balanced sound quality and is quick and easy to set up and start enjoying. We believe it sets a new standard that will satisfy the needs of both audiophiles and ardent record collectors.

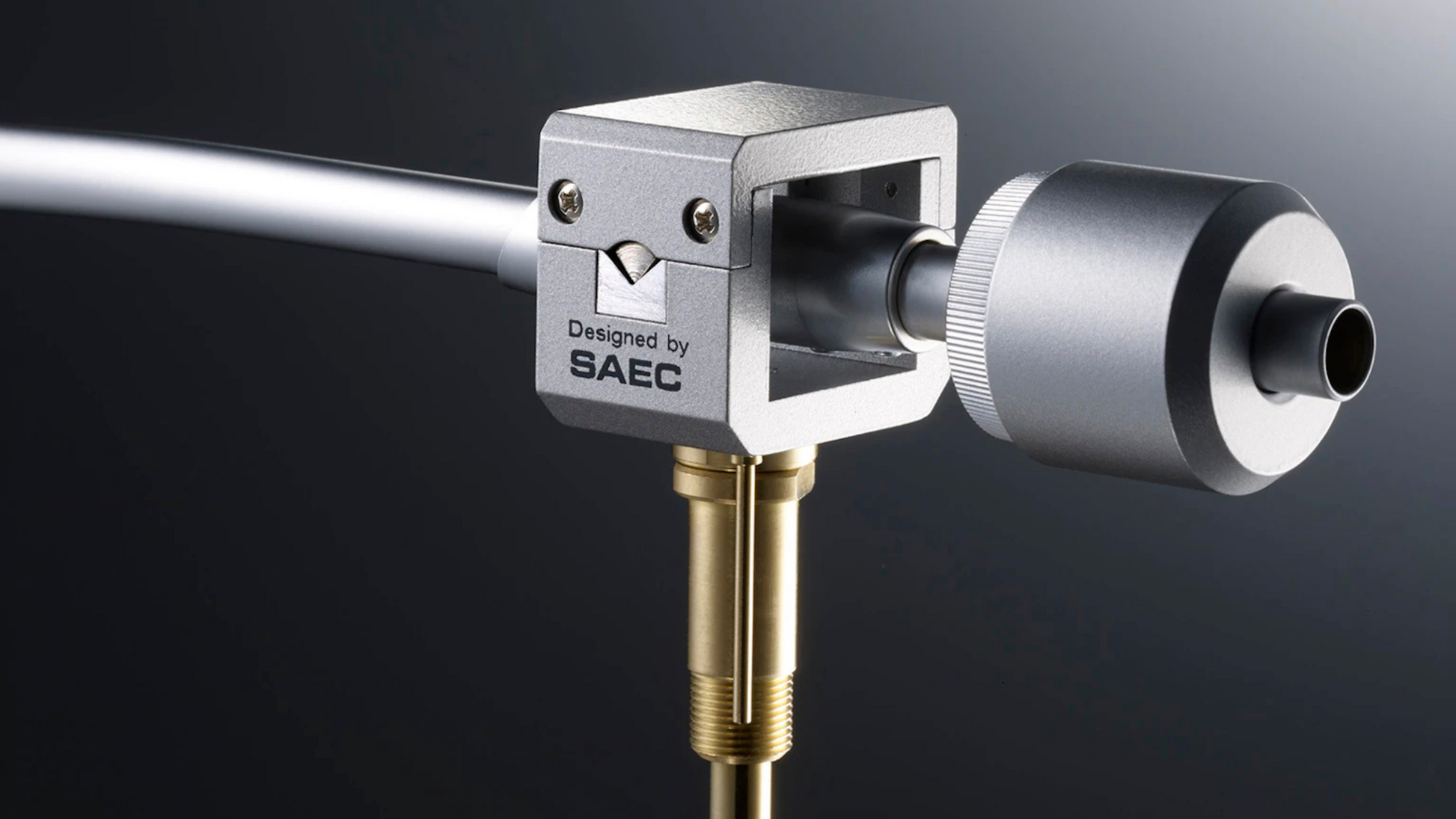

Knife-edge, pivot-point tone-arm bearings
The TN-3B-SE's tone-arm from SAEC employs a knife-edge, pivot-point bearing. Unlike the case for tonearms with conventional bearings, any fine vertical movements that take place in this tone-arm actually help in delivering a more dynamic sound with excellent resolution. The S-shaped tone-arm also employs a universal head-shell fitting, allowing users to quickly and easily swap cartridges/head-shells, and supports a wide range of cartridge weights (from 14 - 23g / 0.5 - 0.8 oz.)。
Precision anti-skating and stylus-pressure adjustment
The static-balanced, S-shape tone-arm is equipped with a counterweight for precise stylus-pressure adjustment, as well as an anti-skating mechanism for accurate tracking force adjustment, allowing the cartridge to accurately play any quality vinyl disc.
Pre-installed VM-series cartridge
A VM-type cartridge the AT-VM95E manufactured by audio-Technica with an elliptical-shaped stylus tip comes pre-installed on the head-shell for convenience. After you’ve opened the box, set up the platter, and mounted the head-shell on the tonearm, you'll be ready to enjoy your records.
* Replacement styli should be available at the retail store where you purchased the unit, or via the TEAC Online store. (TEAC On-line store is available in selected countries.)
* The VM-series cartridge is a MM (Moving Magnet) type design and is compatible with all conventional MM-type phono EQ amplifiers.
Built-in MM-type phono EQ amplifier
The TN-3B-SE incorporates an MM-type phono EQ amplifier, allowing you to connect the turntable to a conventional amplifier/hi-fi system that lacks a PHONO input. A low distortion, hi-fi-grade op-amp, the NJM8080, is employed to boost the low-level signals from the phono cartridge up to LINE level.
External belt-drive with an aluminum die-cast platter
A belt-drive arrangement is employed in order to minimize any motor cogging effects by driving the outer rim of the platter (which has a larger diameter, mass, and surface area).
Luxurious, multi-layer lacquer paint finish
All internal components are mounted on a robust and high-density MDF plinth for rigidity and vibration-deadening. Thanks to its sleek and stylish design, the TN-3B-SE looks at home in most domestic environments, creating the perfect setting for listening to vinyl records.
2-speed turntable for 33-⅓ and 45 rpm
The TN-3B-SE supports 33-⅓ and 45 rpm for LP and EP records. Our insistence on quality engineering can even be seen in the construction of the rotary control for start-up/speed selection, formed of machined aluminum.
Insulating feet with excellent shock absorption
The insulating feet comprise a machined aluminum shell, topped with a rubber cushion that is fixed to the high-density MDF plinth. Thanks to their excellent shock absorption characteristics, the TN-3B-SE is very resistant to acoustic feedback.
Honeycomb patterned bottom panel
In order to achieve a sleek cabinet design without compromising rigidity, the bottom panel is imprinted with a honeycomb pattern that minimizes unwanted vibrations.
