SVS SB-5000 Subwoofer

SVS PB-5000 R|Evolution – High-Performance Ported Subwoofer for Deep, Immersive Bass

The SVS PB-5000 R|Evolution subwoofer redefines what’s possible in low-frequency reproduction with a massive 15-inch high-excursion driver, 2,000W RMS amplifier, and precision digital control. Designed for audiophiles and home theater enthusiasts, this ported subwoofer delivers cinematic depth, musical precision, and room-filling power with total control from the SVS app.

Uncompromising Power & Refined Bass

• 15" High-Excursion Glass Fiber Composite Driver – Built with a lightweight, ultra-rigid membrane, dual voice coils, and a powerful motor structure, delivering commanding bass with extreme accuracy and low distortion, even at high output levels.

• 2000W RMS Dual Mono STA-1200D Amplifier – Class D amplifier design delivers clean, dynamic power, with over 5000W peak output and independent control for each coil to maintain precision at any volume.

• Advanced 295 MHz Analog Devices DSP – Provides real-time signal processing with 120 dB SNR, thermal, voltage, and current monitoring, and support for Auto-EQ tuning via the SVS app for customized room integration.

Tunable for Any Room or System

• Three Bass Tuning Modes – Selectable modes include:

  • Standard (15–180 Hz) – Ideal for reference-level cinema and music listening.

  • Extended (13–180 Hz) – For maximum depth and room-shaking bass.

  • Sealed (16–270 Hz) – For tight, fast transients in smaller rooms or critical listening setups.

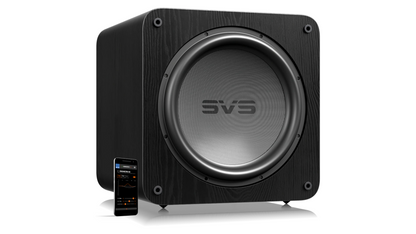

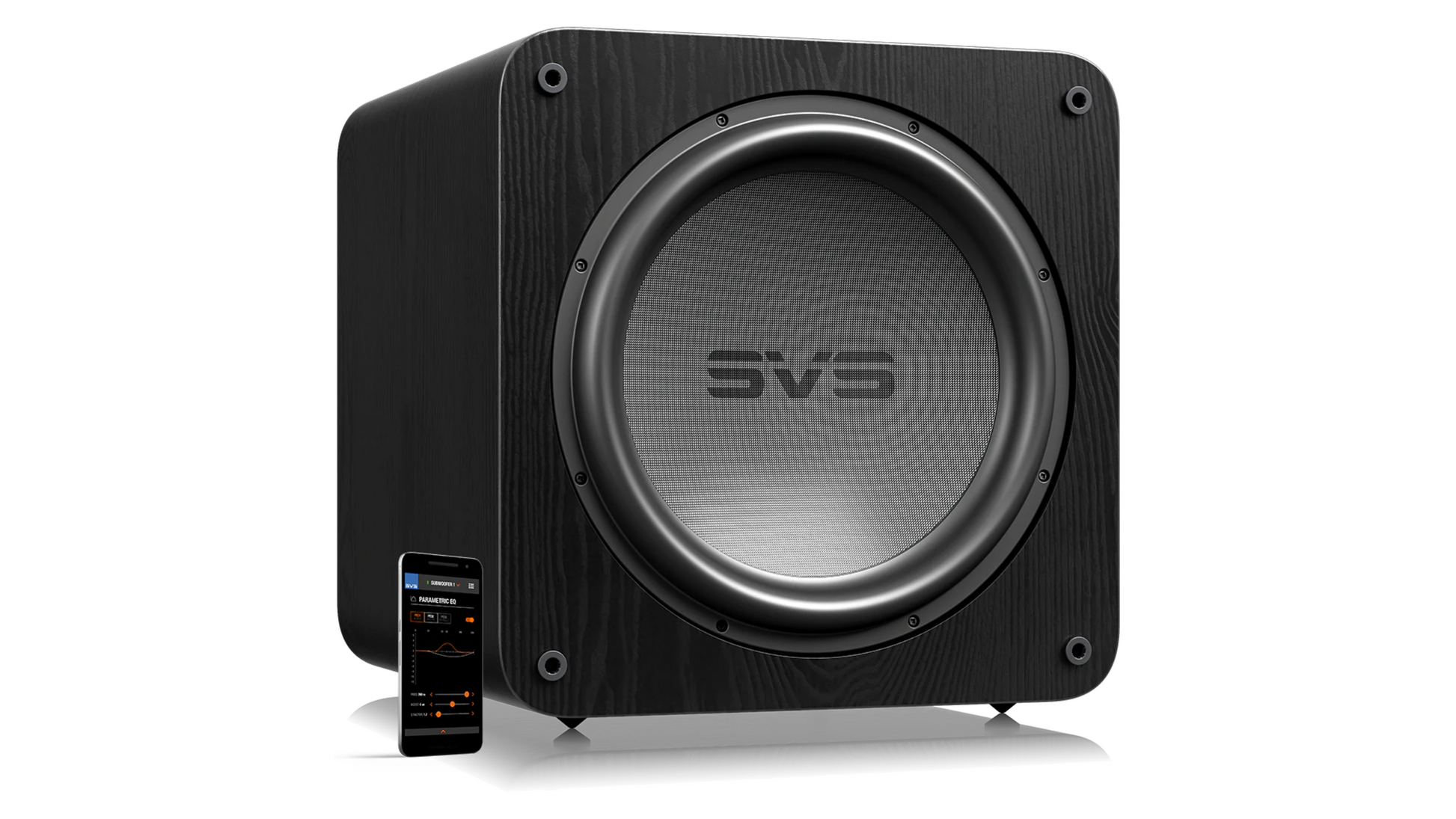

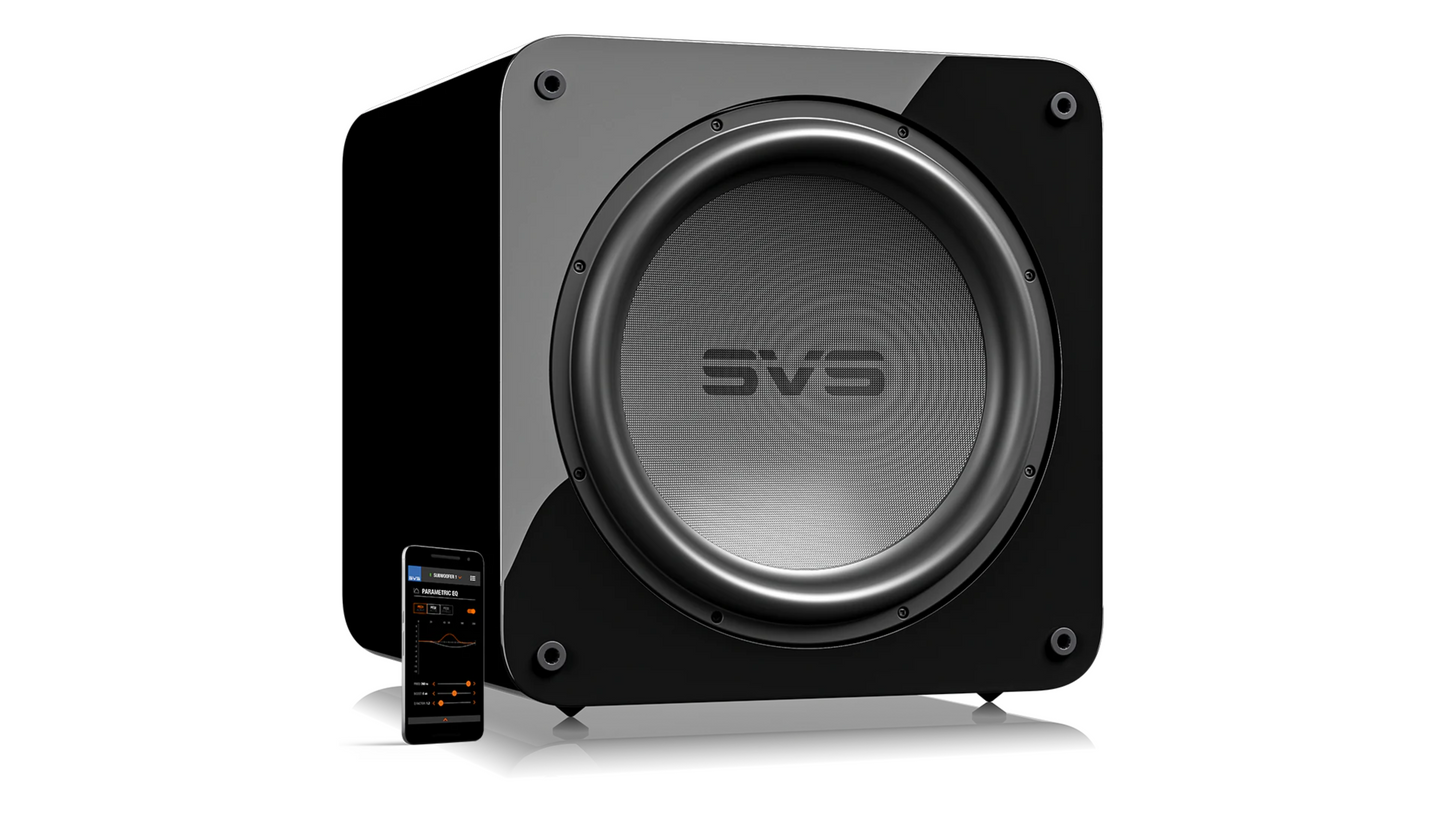

• SVS App Control – Full Bluetooth app control for volume, crossover, phase, 6-band parametric EQ, presets (Movie, Music, Night), and firmware updates, all from your listening position.

Advanced Cabinet & Construction

• Triple-Vented MDF Cabinet with Double Front Baffle – Features a rigid 2-inch thick front panel, heavy-duty internal bracing, and three optimized ports, designed to minimize coloration and resonance for accurate, powerful bass.

• Elastomer Isolation Feet – Reduces vibration transfer to floors and surrounding surfaces, ensuring cleaner bass and greater placement flexibility.

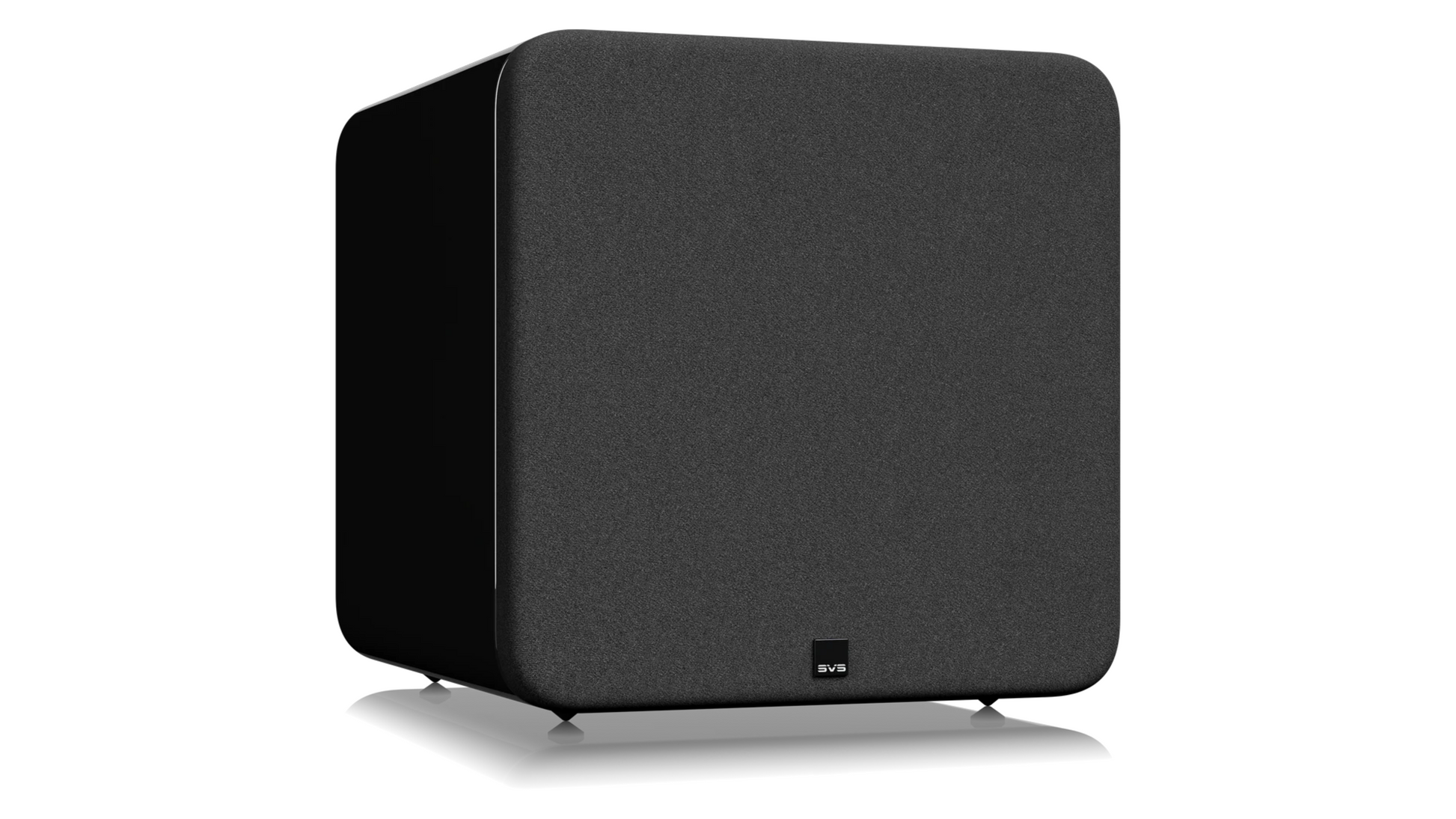

• Premium Finishes & Modern Design – Available in piano gloss black or black ash, complemented by a sculpted metal grille, creating an aesthetic that looks as good as it sounds.

Technical Specifications

• Driver Size: 15" high-excursion glass fiber composite

• Amplifier Power: 2000W RMS / 5000+W Peak (Class D STA-1200D)

• Tuning Modes: Standard (15–180 Hz), Extended (13–180 Hz), Sealed (16–270 Hz)

• App Control: SVS app via Bluetooth (iOS, Android, Fire OS)

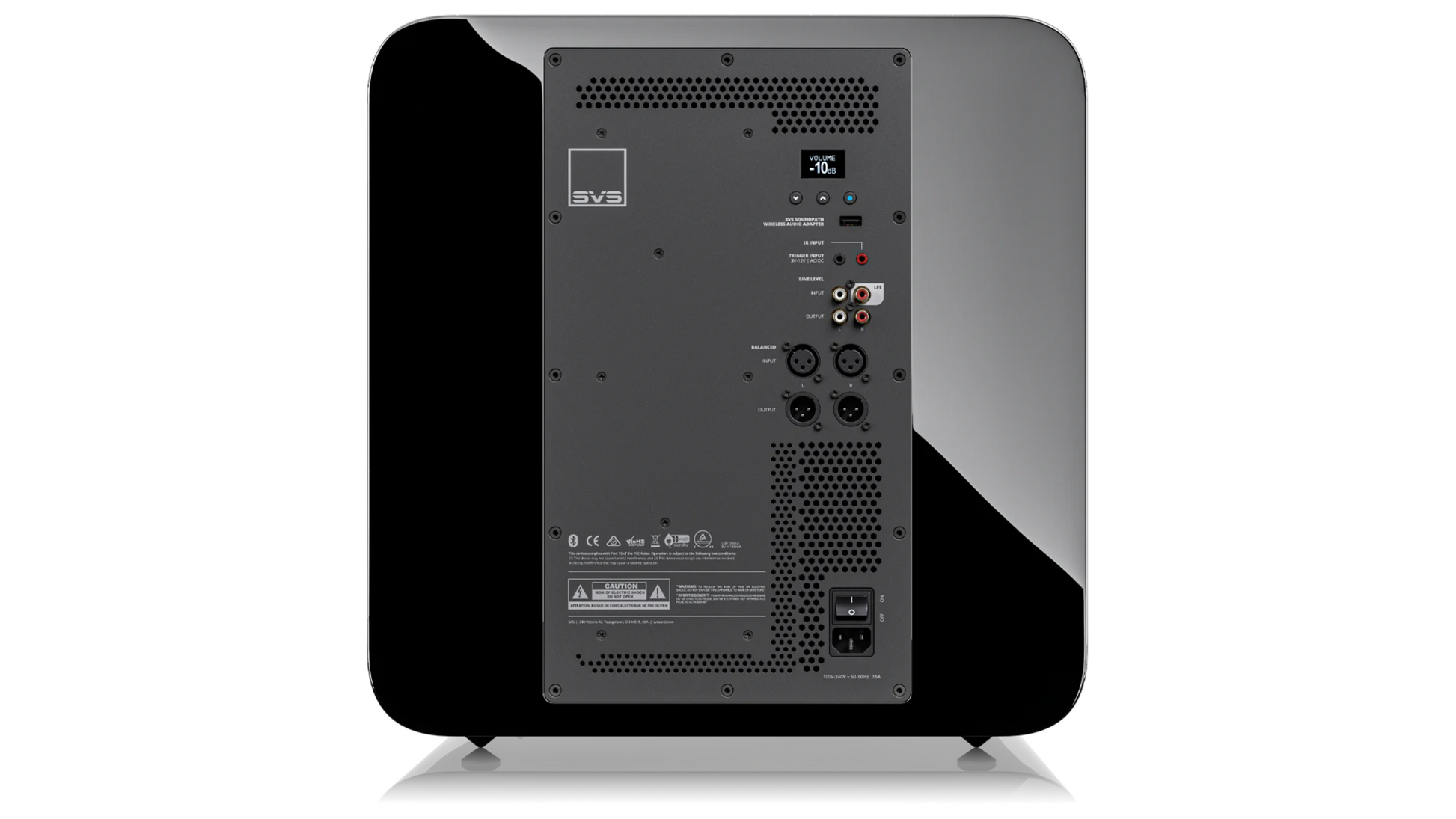

• Inputs: Stereo RCA, LFE

• Dimensions (H x W x D): 23.4" x 20.5" x 28.7" (with grille and feet)

• Weight: 92.6 lbs

• Finishes: Piano Gloss Black or Black Ash

The SVS PB-5000 R|Evolution delivers jaw-dropping low-end performance, combining brute power, refined tuning, and smart control—a must-have for anyone building a reference-grade music or home theater system.
