Matrix Audio X-Sabre 3 Music Streaming DAC

Matrix Audio X‑SABRE 3

A reference-level streaming DAC combining a high-performance ES9038PRO converter with full network capabilities for uncompromising digital playback.

The Matrix Audio X-SABRE 3 is built for audiophiles demanding top-tier resolution, timing precision, and flexibility. It integrates a streamer and DAC in one sleek chassis, supporting formats up to 32-bit/768 kHz PCM and native DSD up to 22.4 MHz.

With its ultra-low-noise Crystek CCHD-950 femtosecond clock, fully isolated analog/digital sections, and asynchronous/synchronous mode switching, the X-SABRE 3 elevates digital signal purity and timing accuracy.

The X-SABRE 3 delivers premium analog outputs (4.8 Vrms XLR, 2.4 Vrms RCA), ultra-high SNR (134 dB for XLR), and negligible distortion (<0.00010% THD+N) for critically-listened systems.

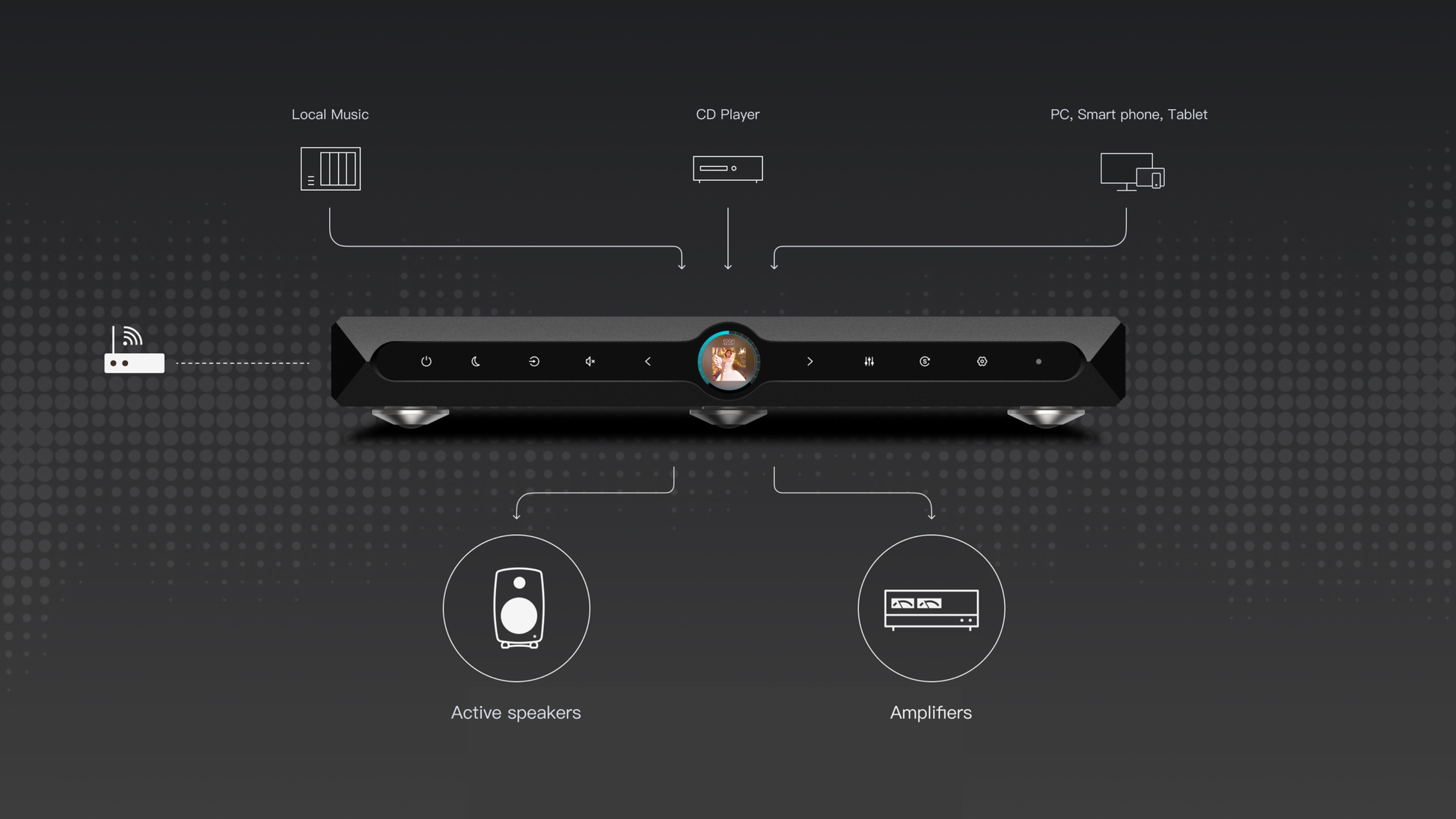

Perfect for high-end two-channel systems or active speaker setups, the Matrix Audio X-SABRE 3 functions as a central hub for modern streaming and high-resolution playback.

Key Specifications

• D/A Chip: ESS ES9038PRO

• Clock Source: Crystek CCHD-950 femtosecond clock

• PCM Support (USB/IIS): Up to 32-bit/768 kHz

• DSD Support (Native): Up to DSD 22.4 MHz

• XLR Line Output: SNR 134 dB, THD+N < 0.00010% at 1kHz

• RCA Line Output: SNR 128 dB, THD+N < 0.00015% at 1kHz

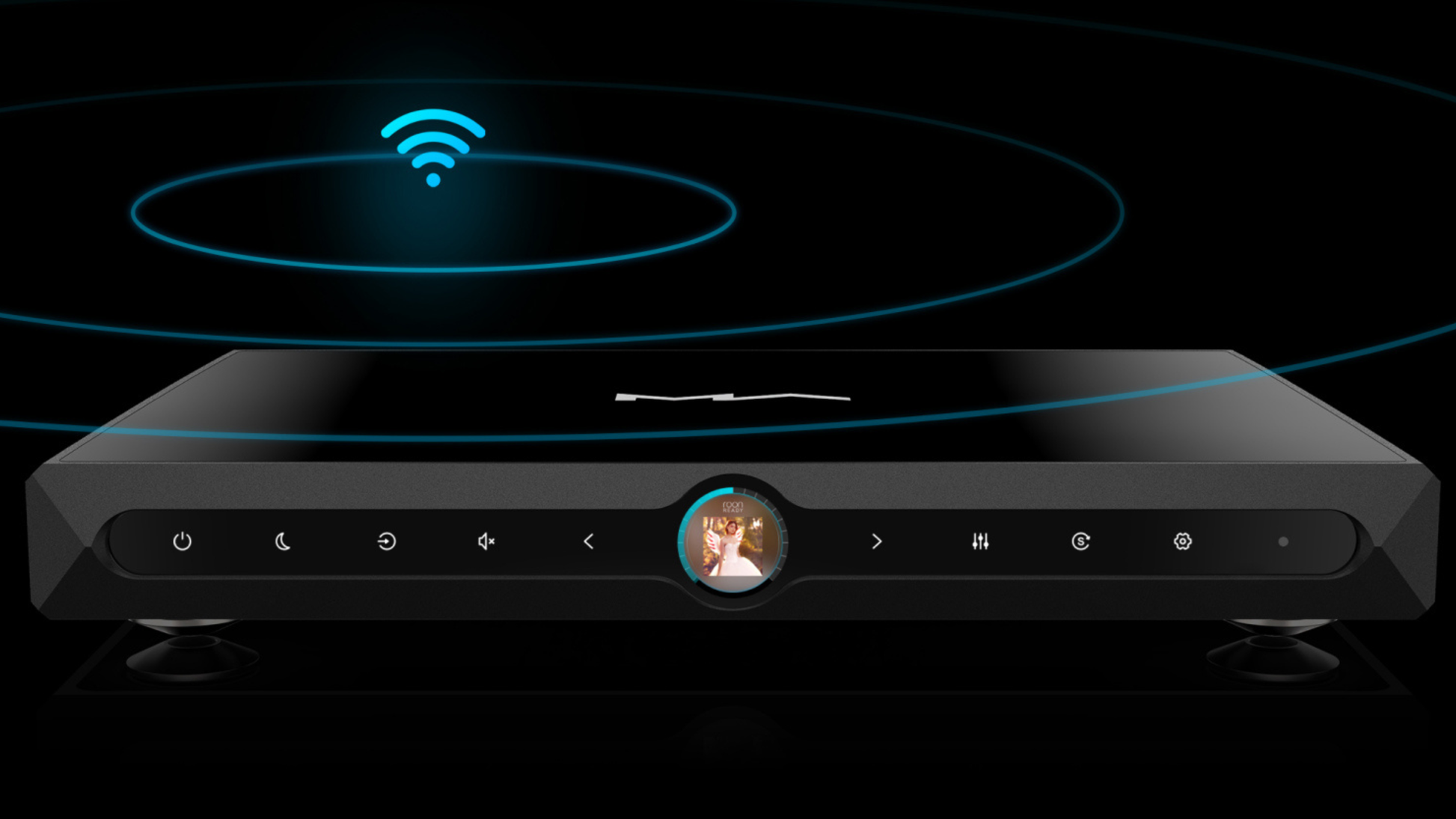

• Network: Gigabit Ethernet + dual-band WiFi (2.4 GHz/5 GHz)

• Dimensions/Weight: ~310 mm × 218 mm × 43 mm, weight ~3.4 kg


Top 20 Questions About Matrix Audio X-SABRE 3

What is the Matrix Audio X-SABRE 3?
It is a high-end network streaming DAC that combines advanced digital-to-analog conversion with modern streaming capability in one unit.

How does the X-SABRE 3 handle formats?
The X-SABRE 3 supports PCM up to 32-bit/768 kHz and native DSD up to 22.4 MHz via USB/IIS, and also supports high-res over network.

Which D/A converter chip does the X-SABRE 3 use?
It uses the ESS ES9038PRO, a premium 32-bit converter known for high performance.

Does the X-SABRE 3 offer streaming capability?
Yes. It functions as a network endpoint with support for Roon Ready, AirPlay 2, TIDAL Connect, Spotify Connect and UPnP/DLNA.

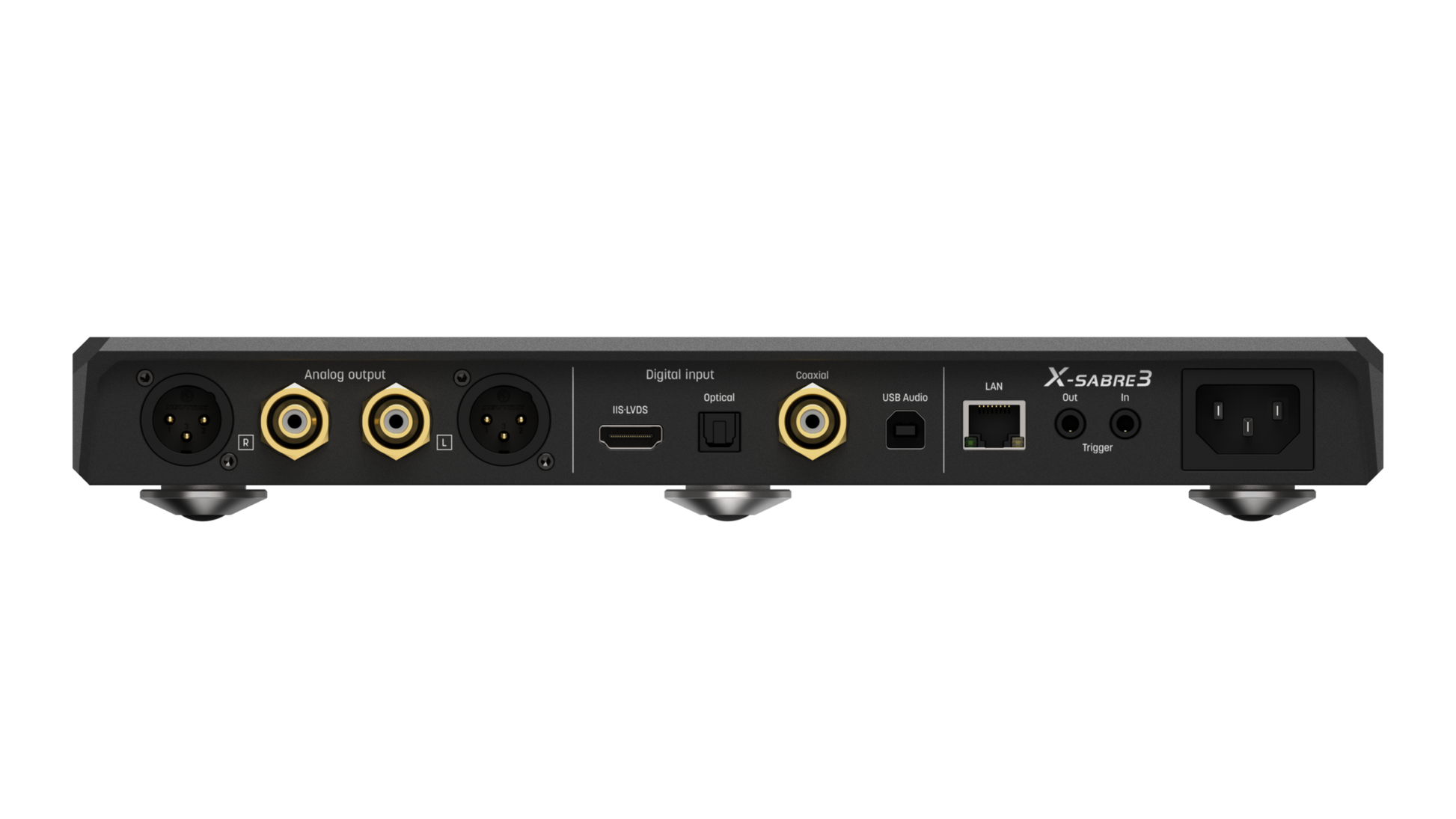

What output options are available on the X-SABRE 3?
It has balanced XLR and unbalanced RCA line outputs with fixed or variable output levels.

Can I use the X-SABRE 3 with my power amplifier or active speakers?
Yes. With its variable output option, you can connect directly to a power amplifier or active speakers and use it as a source + volume control.

What makes the X-SABRE 3’s clocking special?
It features a Crystek CCHD-950 ultra-low-phase-noise clock and supports async or sync mode to tailor timing based on your system.

What is the difference between async and sync mode on the X-SABRE 3?
Async mode uses the internal clock for conversion, while sync mode allows the front-end device’s clock to dictate timing. Users typically see better performance in async.

Is the build quality of the X-SABRE 3 up to premium standard?

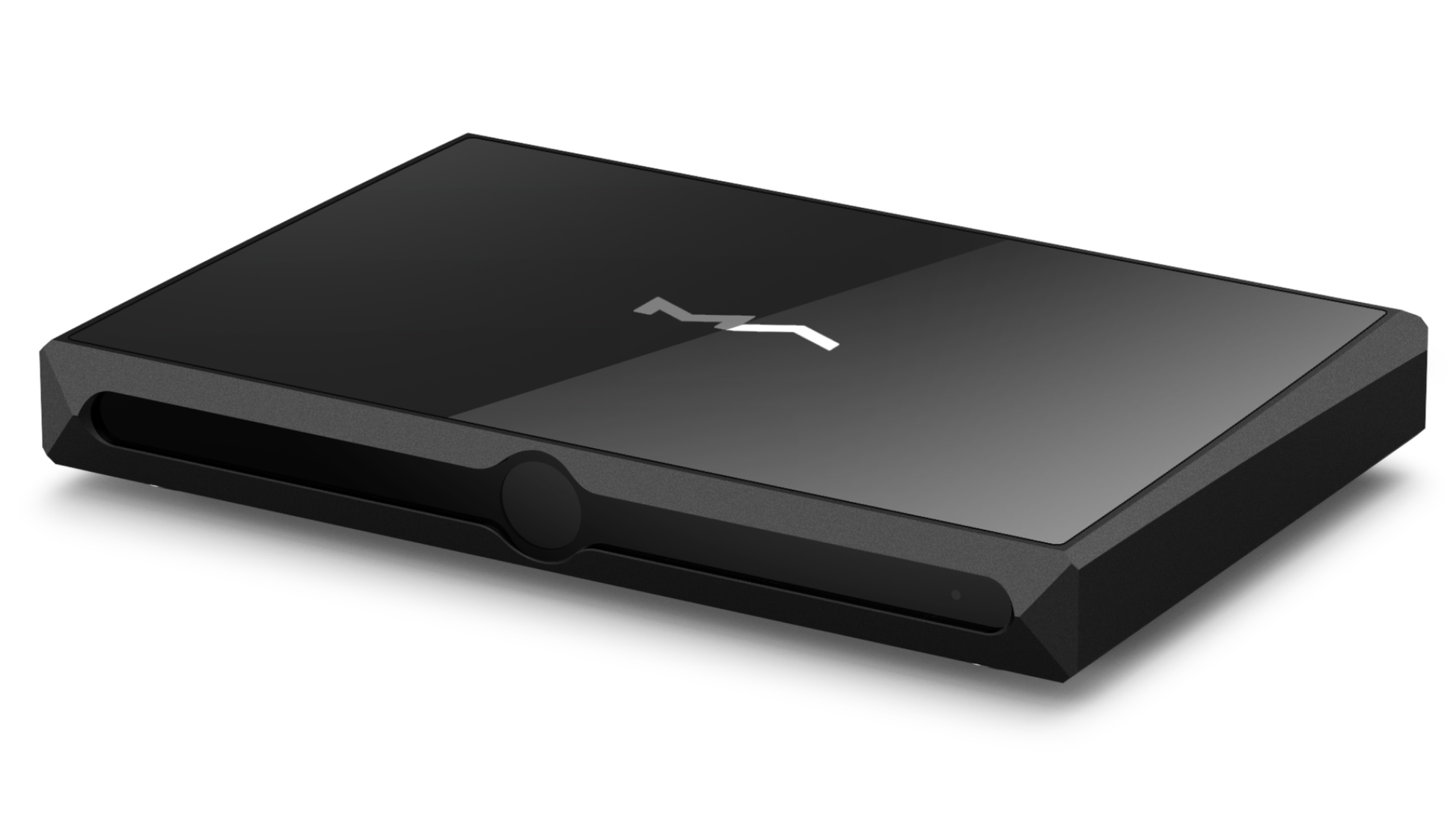

Yes. It uses machined aluminum chassis, glass top panel, separated compartments for power, digital and analog sections for optimal isolation.

What network connectivity does the X-SABRE 3 include?
It offers a gigabit Ethernet port and built-in dual-band WiFi for streaming.

Does the X-SABRE 3 support USB audio?
Yes. It supports USB-B input (and possibly USB-C on certain variants) for direct connection to a computer, with high resolution and MQA support.

What is the typical power consumption of the X-SABRE 3?
Standby is <4W and max operational consumption is <33W according to specs.

Is the X-SABRE 3 easy to control?
Yes. It includes remote control, touch panel on front, and works with a dedicated MA Remote app.

Who is the X-SABRE 3 intended for?
High-end audio enthusiasts with quality speakers/amps who want one high-performance source/processor stream/DAC unit in their system.

Can I use the X-SABRE 3 with a legacy CD transport or external DAC?
While it is a full streamer/DAC itself, you can use its digital inputs (coaxial/optical/IIS) for legacy digital sources if desired.

Does the X-SABRE 3 support volume control?
Yes — it includes a volume stage allowing use as a preamp when desired (variable output mode).

What improvements might I hear with the X-SABRE 3?
Enhanced timing, deeper clarity, lower noise floor, more refined detail, improved soundstage and dynamics compared to standard DAC/streamer units.

What size is the X-SABRE 3?
Approximately 310 mm width × 218 mm depth × 43 mm height and weighs around 3.4 kg.

Is the X-SABRE 3 worth the investment?
If your system is capable and you value high performance streaming + conversion in one box, then yes — it offers strong value in the premium segment.

Where can I get help setting up the X-SABRE 3?
For assistance or product questions, call 443-402-5055 or text 443-402-5064 to reach our team at All Elite Audio. We’re an authorized Maryland dealer with a full home-audio showroom.
