Matrix Audio TS-1 Music Streamer

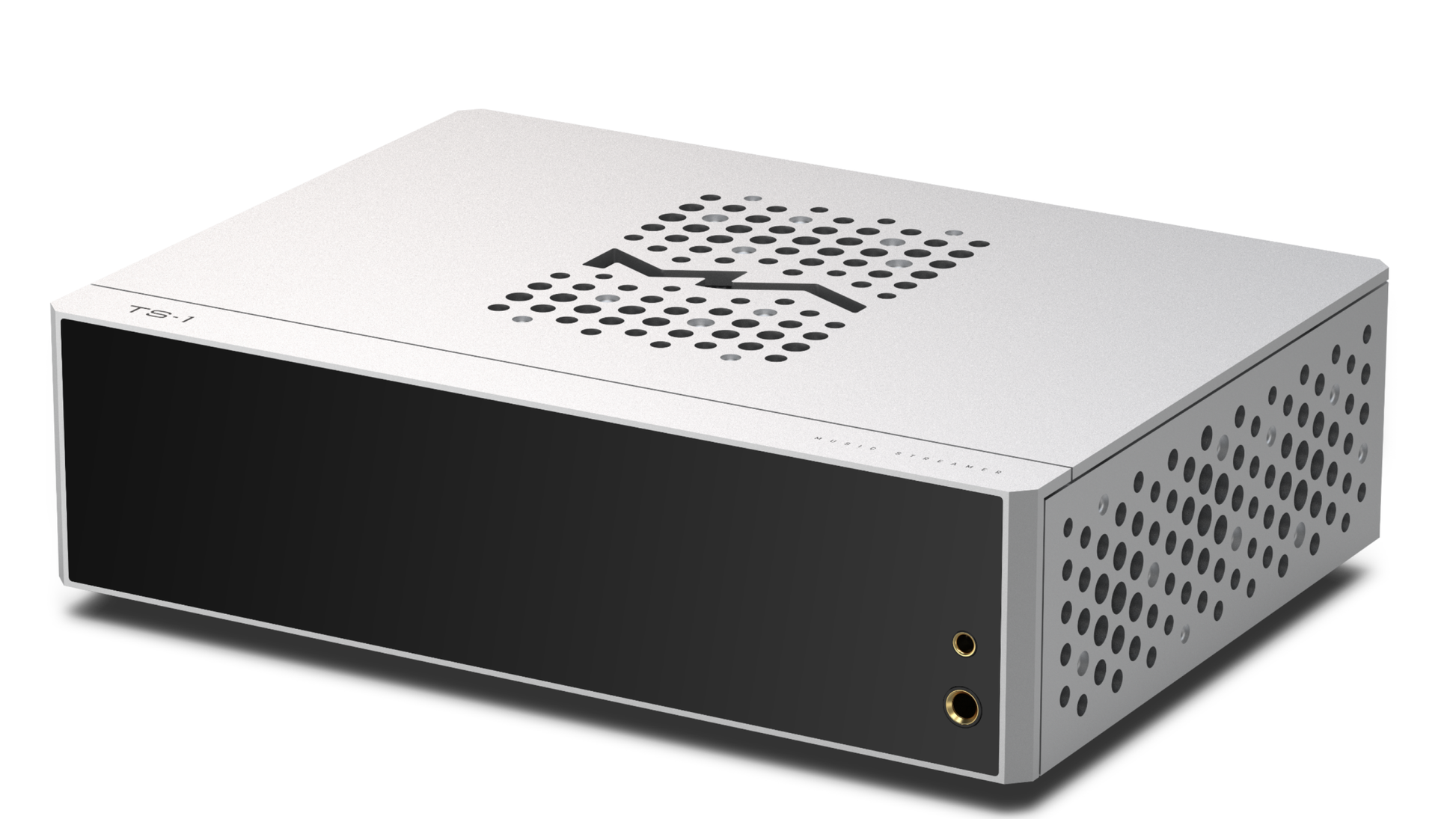

Matrix Audio TS-1

High-performance all-in-one network streamer, DAC, and headphone amplifier built for audiophiles who want uncompromising clarity and versatility in a single compact component.

The Matrix Audio TS-1 merges premium streaming, advanced digital-to-analog conversion, and powerful headphone amplification into one elegant chassis. It is designed for listeners who demand reference-grade sound with simplified setup, capable of driving both headphones and active speakers directly.

Inside, the Matrix Audio TS-1 features a sophisticated triple-DAC architecture using two AK4499 chips and one AK4493, a configuration that delivers exceptional transparency, dynamic range, and tonal accuracy. Dual femtosecond clocks independently manage the 44.1 kHz and 48 kHz families, reducing jitter and ensuring precise timing. The analog stage provides balanced (4.4 mm) and unbalanced (6.35 mm) headphone outputs, plus balanced XLR and single-ended RCA line outputs with selectable output levels for flexible system integration.

The Matrix Audio TS-1 supports Roon Ready, TIDAL Connect, Qobuz, AirPlay 2, and DLNA/UPnP playback over Ethernet or Wi-Fi. An NVMe slot allows local music storage directly inside the chassis, creating a self-contained streaming source. Its internal power supply ensures clean operation, and an optional external 12 V linear supply can further enhance performance.

Ideal for headphone enthusiasts, desktop audio users, and those building minimalist two-channel systems, the Matrix Audio TS-1 delivers reference sound without the complexity of multiple boxes.

For assistance or product questions, call 443-402-5055 or text 443-402-5064 to reach our team. All Elite Audio is an authorized dealer for Matrix Audio with a full home audio showroom.

Key Specifications — Matrix Audio TS-1

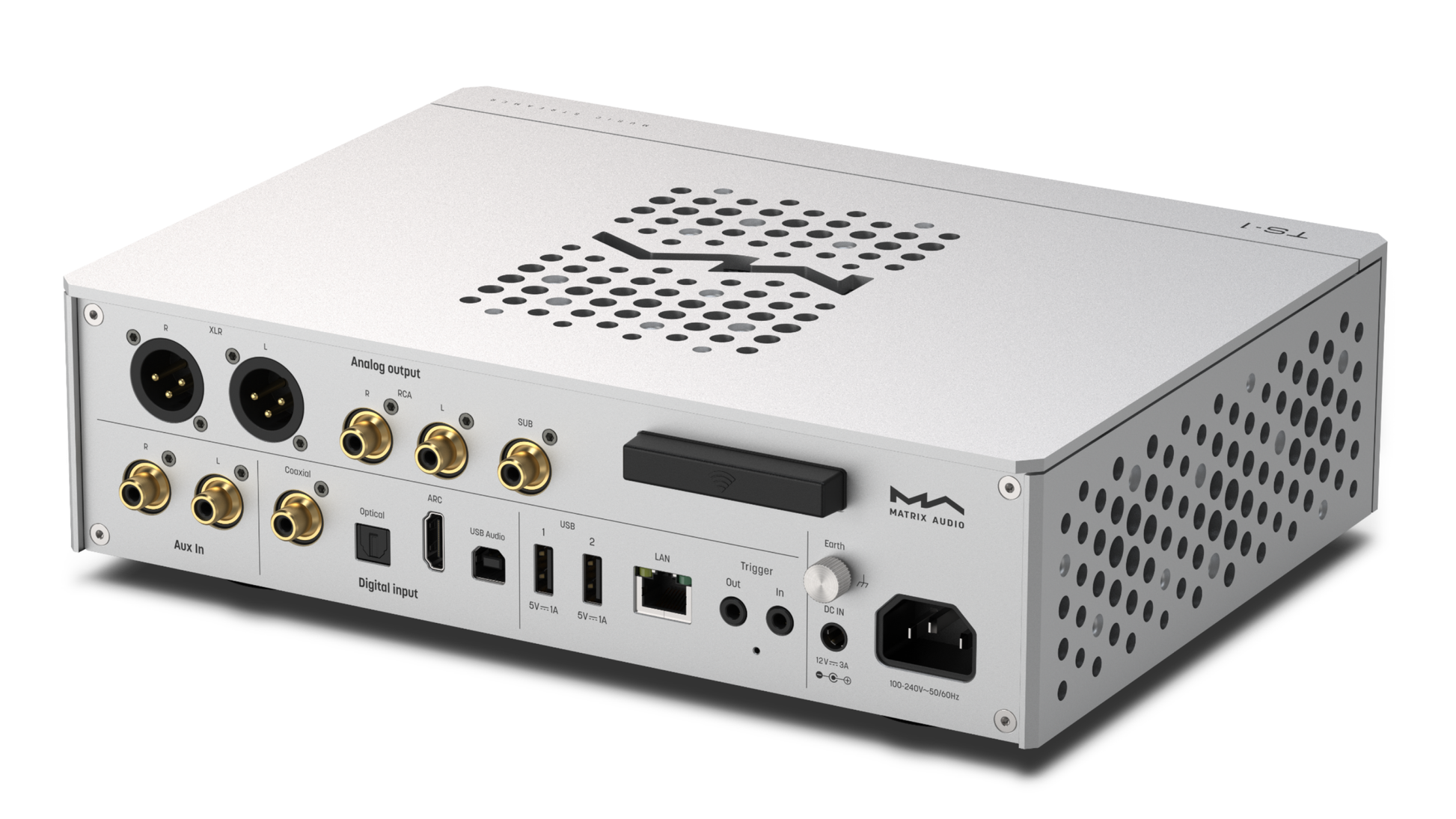

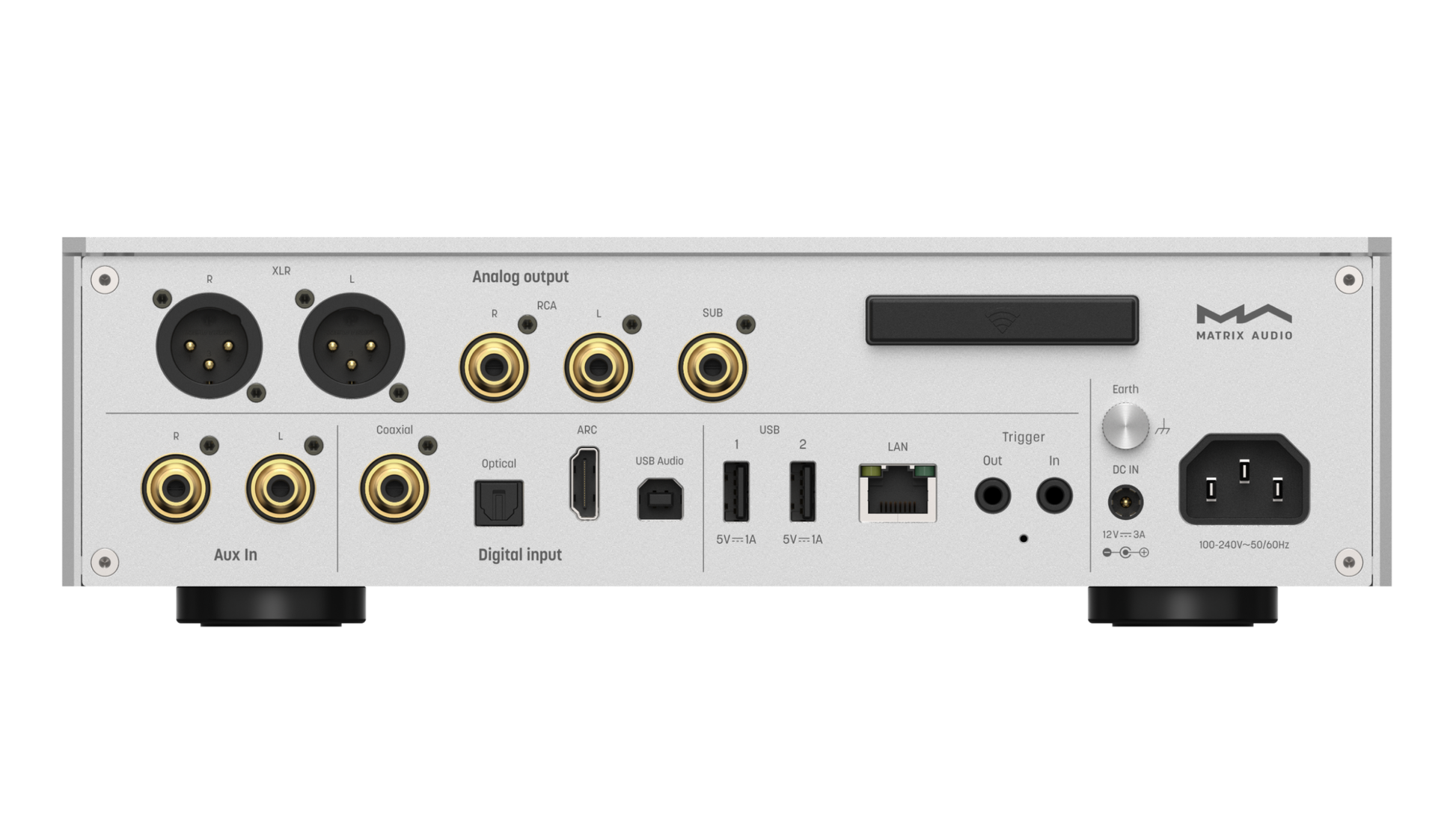

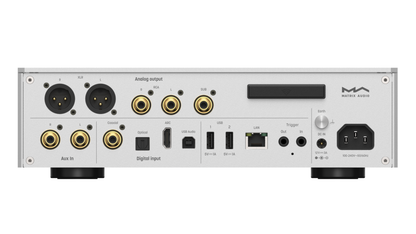

• Digital Inputs: USB Audio, coaxial, optical, HDMI ARC

• Analog Input: RCA line-level

• Line Outputs: Balanced XLR and single-ended RCA (adjustable output level)

• Subwoofer Output: RCA, fixed low-frequency roll-off

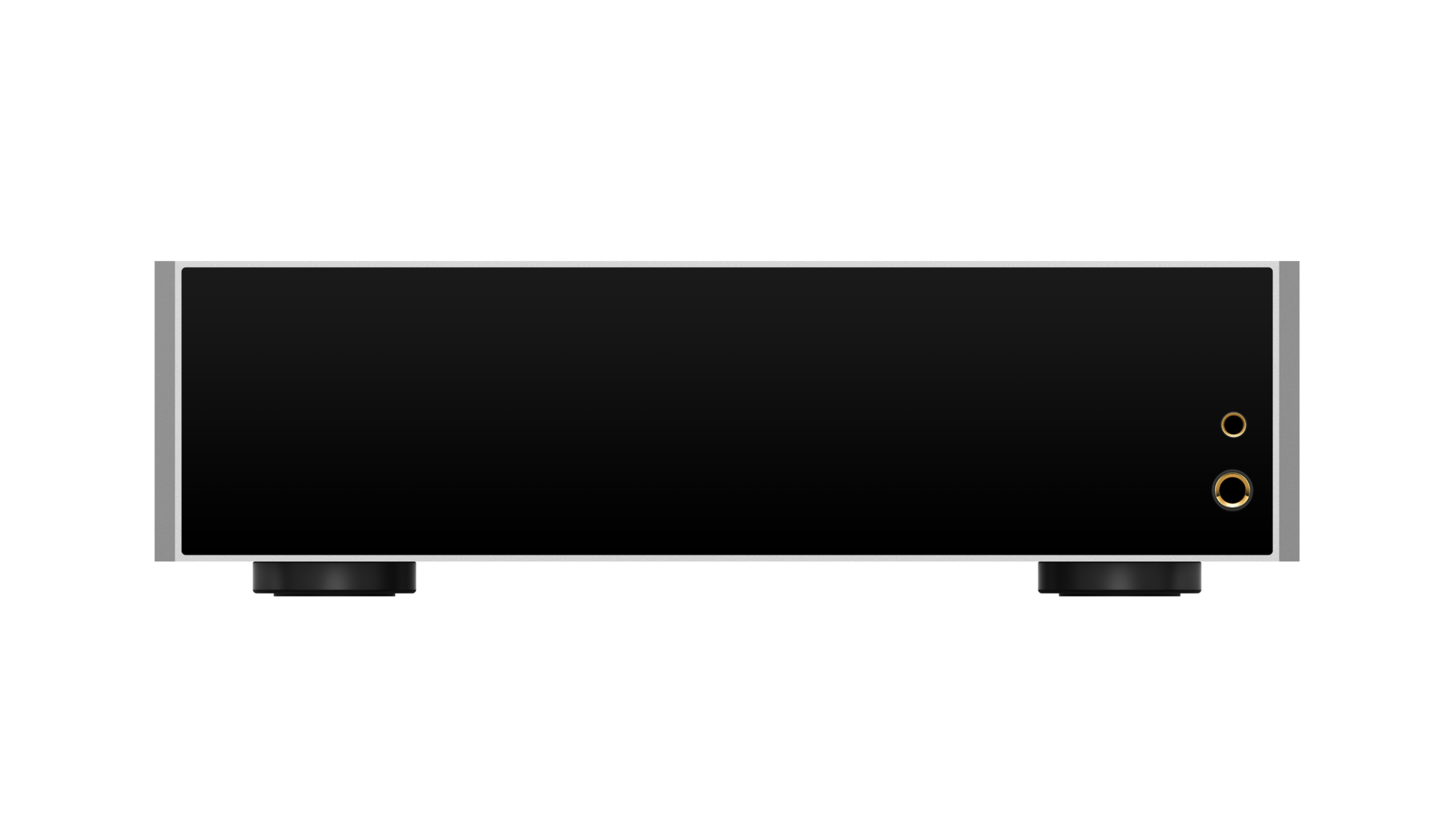

• Headphone Outputs: 4.4 mm balanced and 6.35 mm unbalanced

• Headphone Power: Up to 1000 mW @ 33 Ω

• Output Impedance: ≤ 1 Ω unbalanced, ≤ 2 Ω balanced

• DAC Configuration: Two AK4499 chips plus one AK4493 chip

• Clock System: Dual femtosecond oscillators for 44.1 k and 48 k families

• Streaming Support: Roon Ready, TIDAL Connect, Qobuz, AirPlay 2, DLNA/UPnP

• Storage: NVMe SSD slot for internal library

• Network: Ethernet and dual-band Wi-Fi

• Control: Front-panel interface, IR remote, and MA Remote App

• Power Supply: Internal switching, external 12 V DC optional

• Dimensions: Approximately 28 × 21 × 8.5 cm

• Weight: Approximately 3 kg

Top 20 Questions About Matrix Audio TS-1

What is the Matrix Audio TS-1?
The Matrix Audio TS-1 is a combined network streamer, DAC, and headphone amplifier designed to deliver high-end sound in one versatile chassis.

Which DAC chips are used in the Matrix Audio TS-1?
The Matrix Audio TS-1 features two AK4499 chips and one AK4493, providing a rich, detailed, and dynamic sound signature.

Can the Matrix Audio TS-1 drive demanding headphones?
Yes. Its powerful headphone stage delivers up to 1000 mW into 33 Ω and handles both low- and high-impedance headphones with precision.

Does the Matrix Audio TS-1 support active speakers?
Yes. With balanced XLR and RCA line outputs, it can drive active monitors or feed an external power amplifier.

Is the Matrix Audio TS-1 Roon Ready?
Yes. It integrates seamlessly with Roon for networked music playback.

What streaming services are compatible with the Matrix Audio TS-1?
It supports TIDAL Connect, Qobuz, AirPlay 2, DLNA/UPnP, and internet radio.

Can the Matrix Audio TS-1 store music locally?
Yes. It includes an NVMe SSD slot to store and play music files directly from internal storage.

How does the Matrix Audio TS-1 reduce jitter?
Dual femtosecond clocks manage digital timing separately for 44.1 kHz and 48 kHz frequencies, reducing phase noise and timing errors.

Is Wi-Fi supported on the Matrix Audio TS-1?
Yes, with both 2.4 GHz and 5 GHz Wi-Fi alongside Ethernet.

Can I use an external power supply with the Matrix Audio TS-1?
Yes. It accepts a 12 V DC linear supply for enhanced sonic performance.

Does the Matrix Audio TS-1 support HDMI ARC?
Yes. It can receive audio from compatible TVs through its HDMI ARC input.

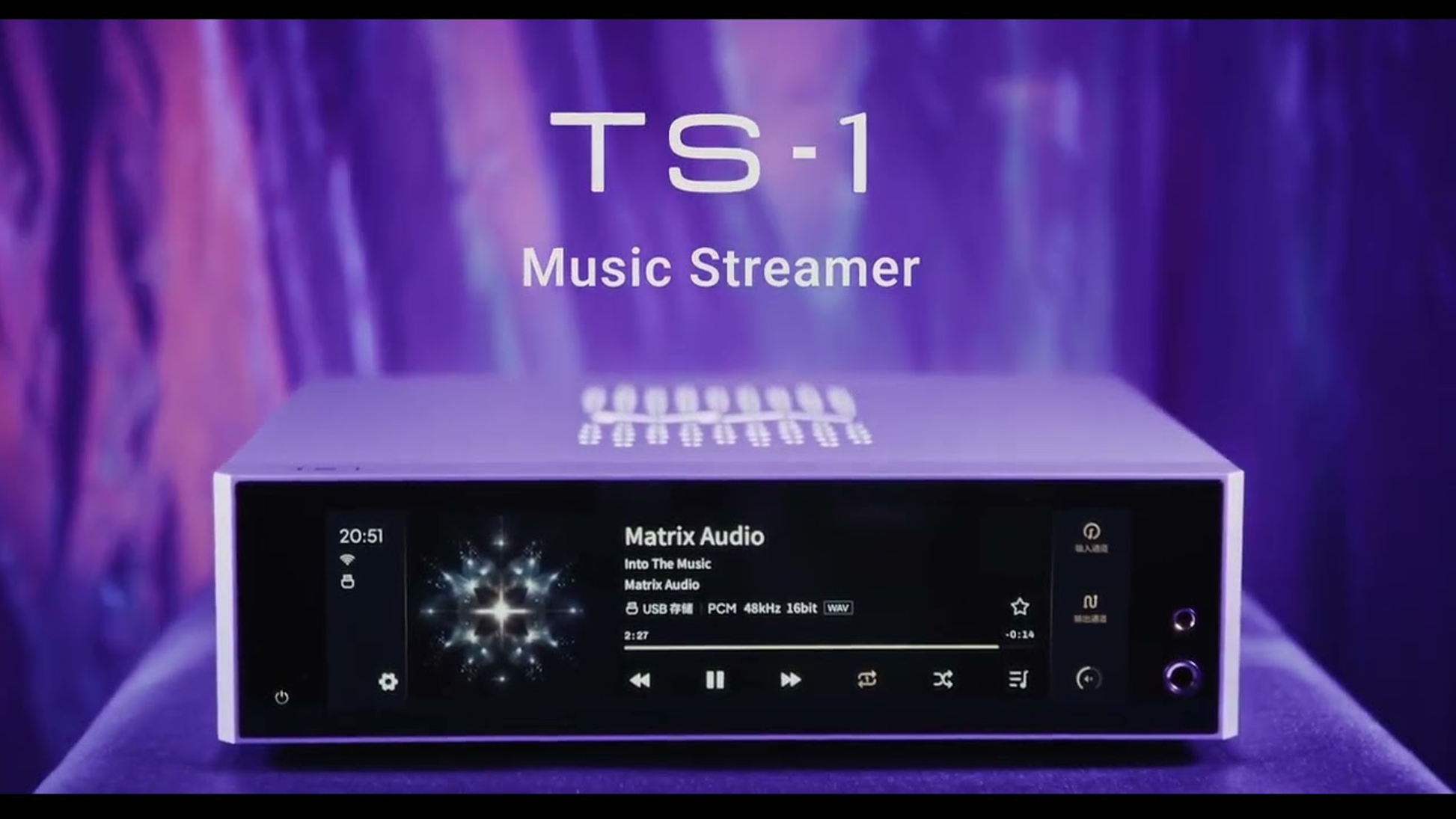

How do I control the Matrix Audio TS-1?
You can operate it via its touch interface, included remote control, or the MA Remote App for mobile devices.

Does the Matrix Audio TS-1 play DSD files?
Yes. It supports DSD via DoP and native playback modes.

What is the output impedance of the headphone section?
The balanced output measures under 2 Ω and the unbalanced under 1 Ω for excellent control of any headphone.

Can the Matrix Audio TS-1 serve as a preamplifier?
Yes. It can function as a digital preamp feeding powered speakers or external amplifiers.

Does the Matrix Audio TS-1 have analog input capability?
Yes, it provides an RCA analog input for connecting additional audio sources.

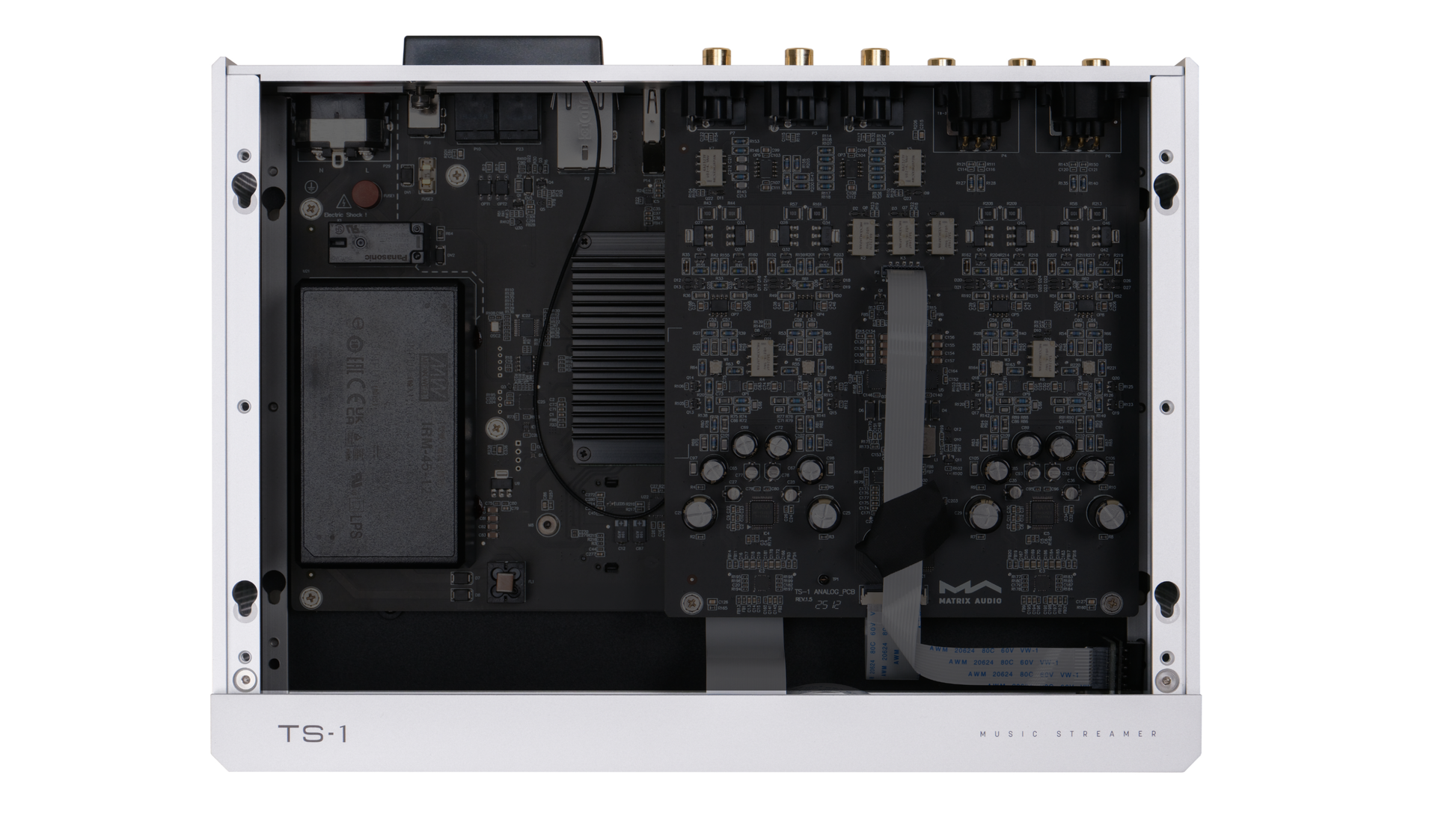

How does the Matrix Audio TS-1 isolate analog and digital stages?
Its internal layout physically separates digital and analog circuits to reduce interference and maintain signal purity.

Is the Matrix Audio TS-1 good for desktop audio setups?
Absolutely. Its compact footprint and headphone outputs make it perfect for high-resolution desktop listening.

What is the retail price of the Matrix Audio TS-1?
The Matrix Audio TS-1 typically retails around $2,499 USD and is always in stock at All Elite Audio.

Who can I contact for more information or purchase help?
For assistance or product questions, call to reach our team at All Elite Audio, your authorized Matrix Audio dealer in Maryland with a full home audio showroom.
