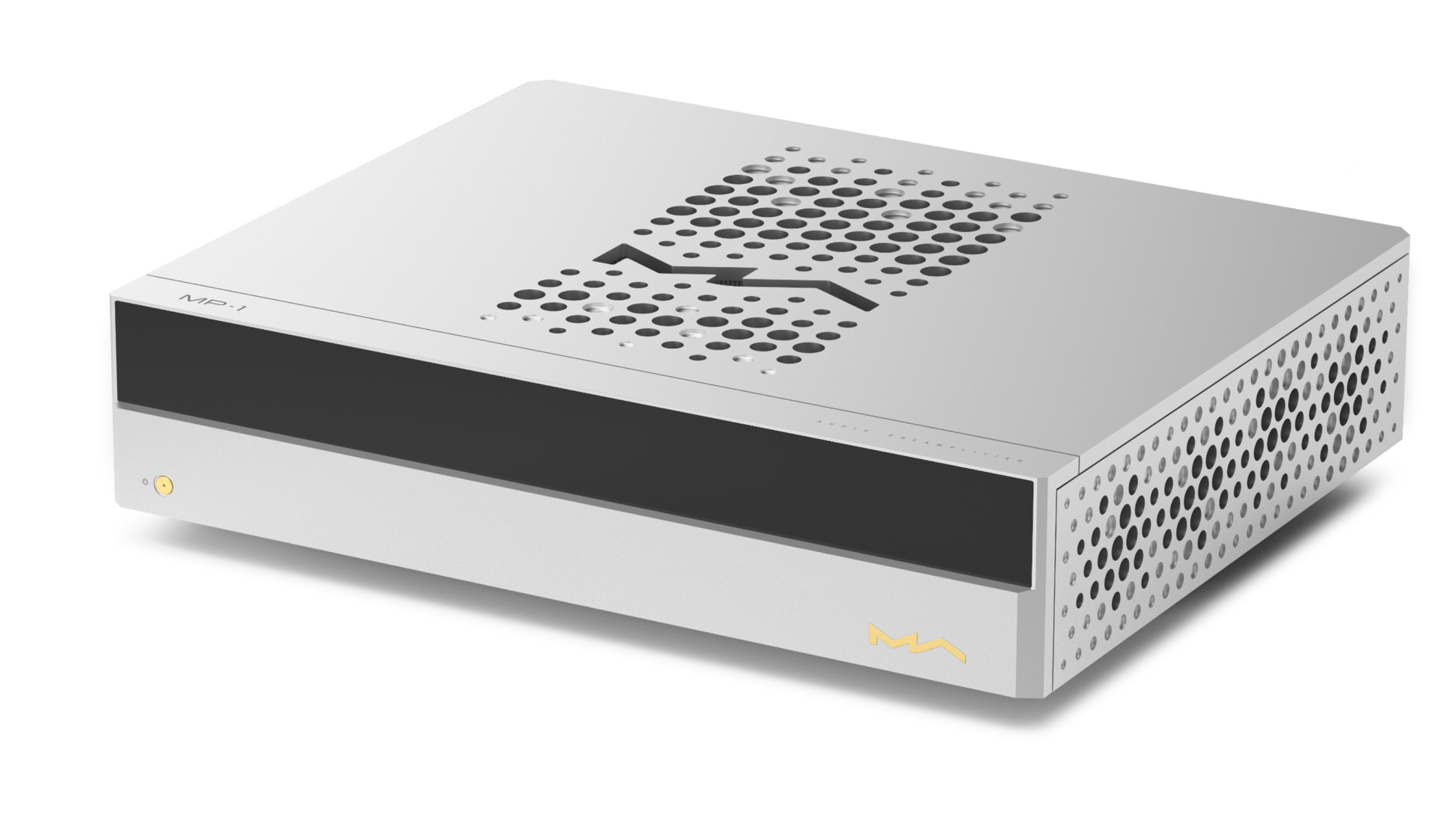

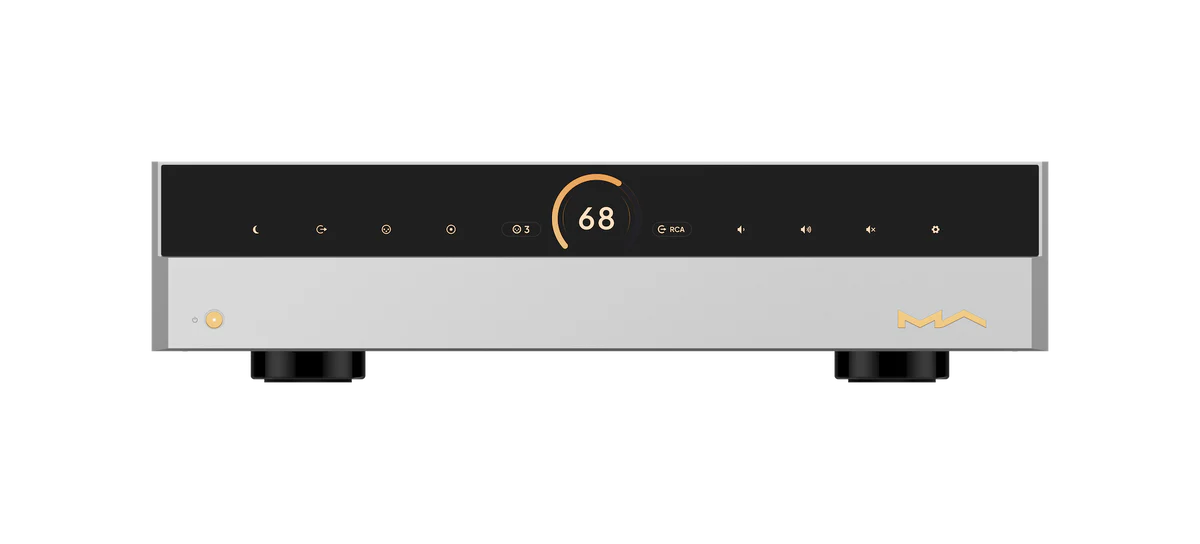

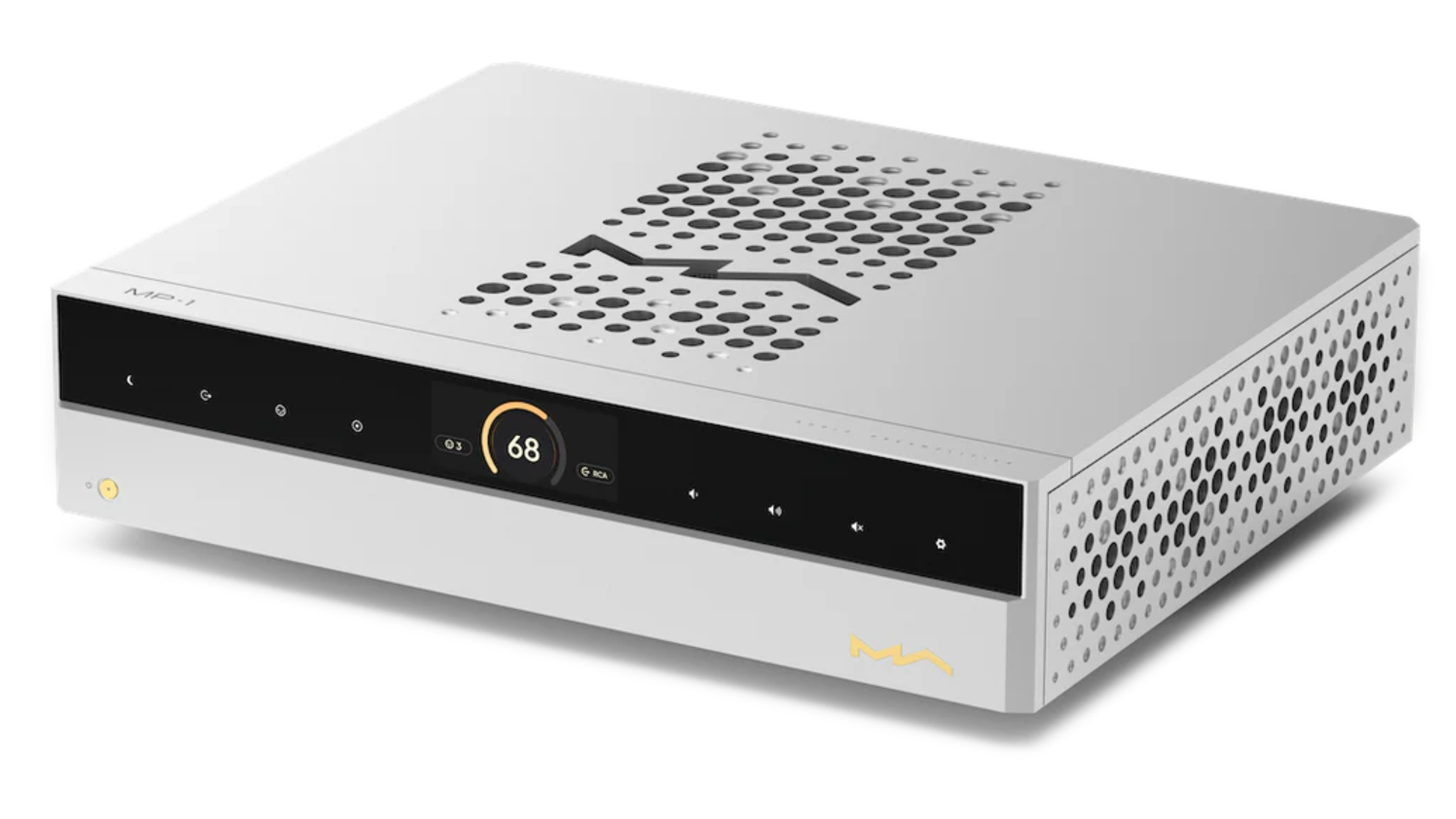

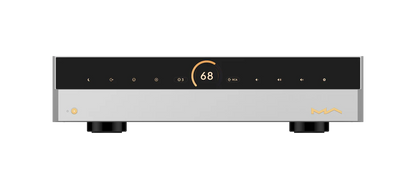

Matrix Audio MP-1 Flagship Preamplifier

Matrix Audio MP-1 Flagship Preamplifier

Ultra-high-end analog preamplifier designed to anchor the Matrix M-Series system with reference-grade transparency, dynamic control, and precision engineering.

The Matrix Audio MP-1 serves as the control center for the Matrix M-Series, pairing seamlessly with the MA-1 power amplifier and MS-1 network streamer. Built from the ground up as a no-compromise preamplifier, it uses a fully balanced dual-mono design, premium analog volume control circuitry, and meticulous isolation between signal paths to deliver absolute sonic purity. The MP-1 reveals every nuance of a recording while maintaining exceptional dynamic range and tonal realism.

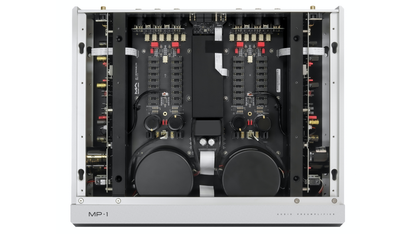

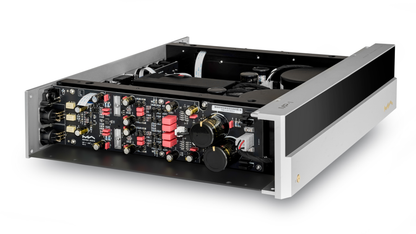

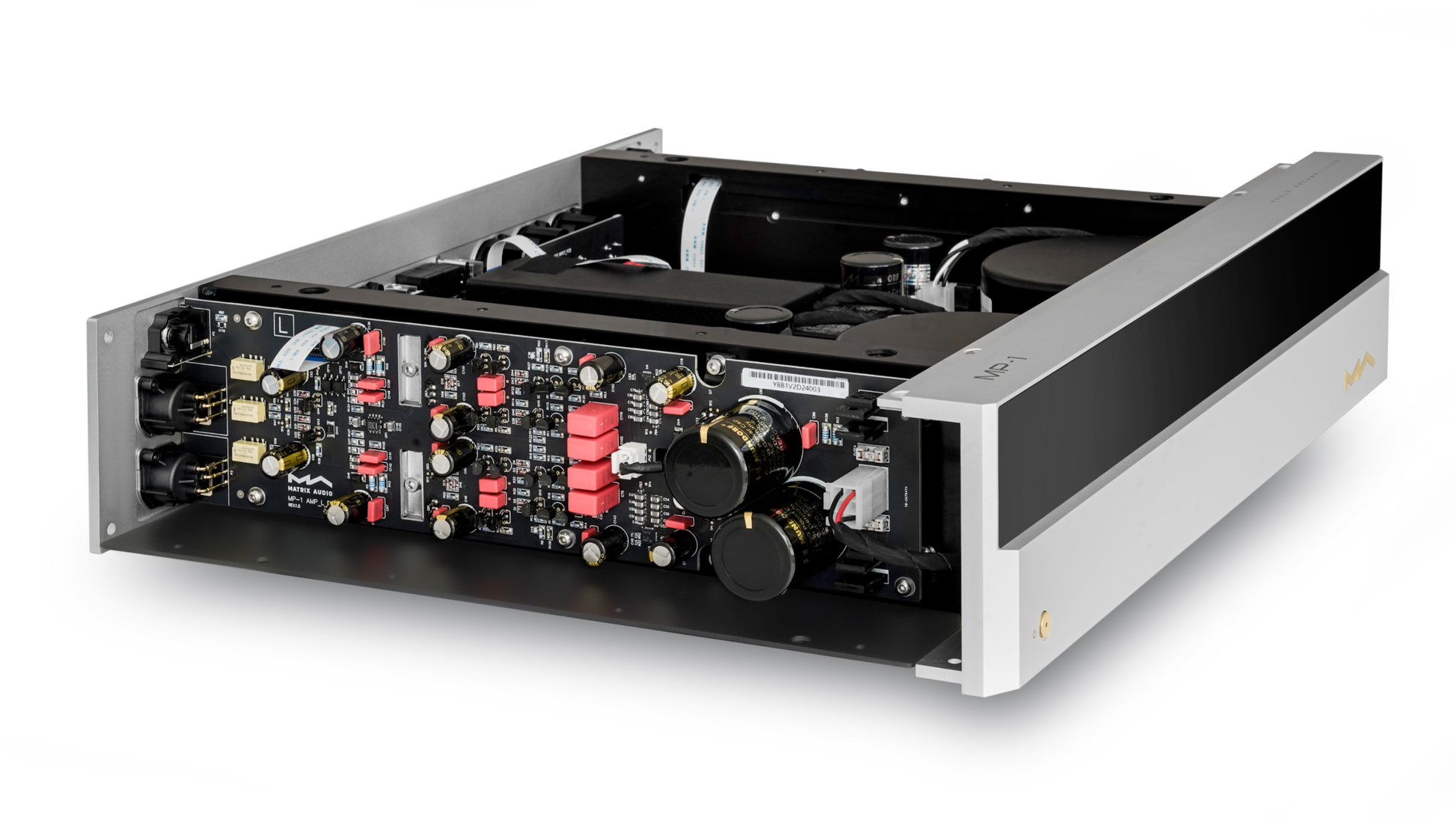

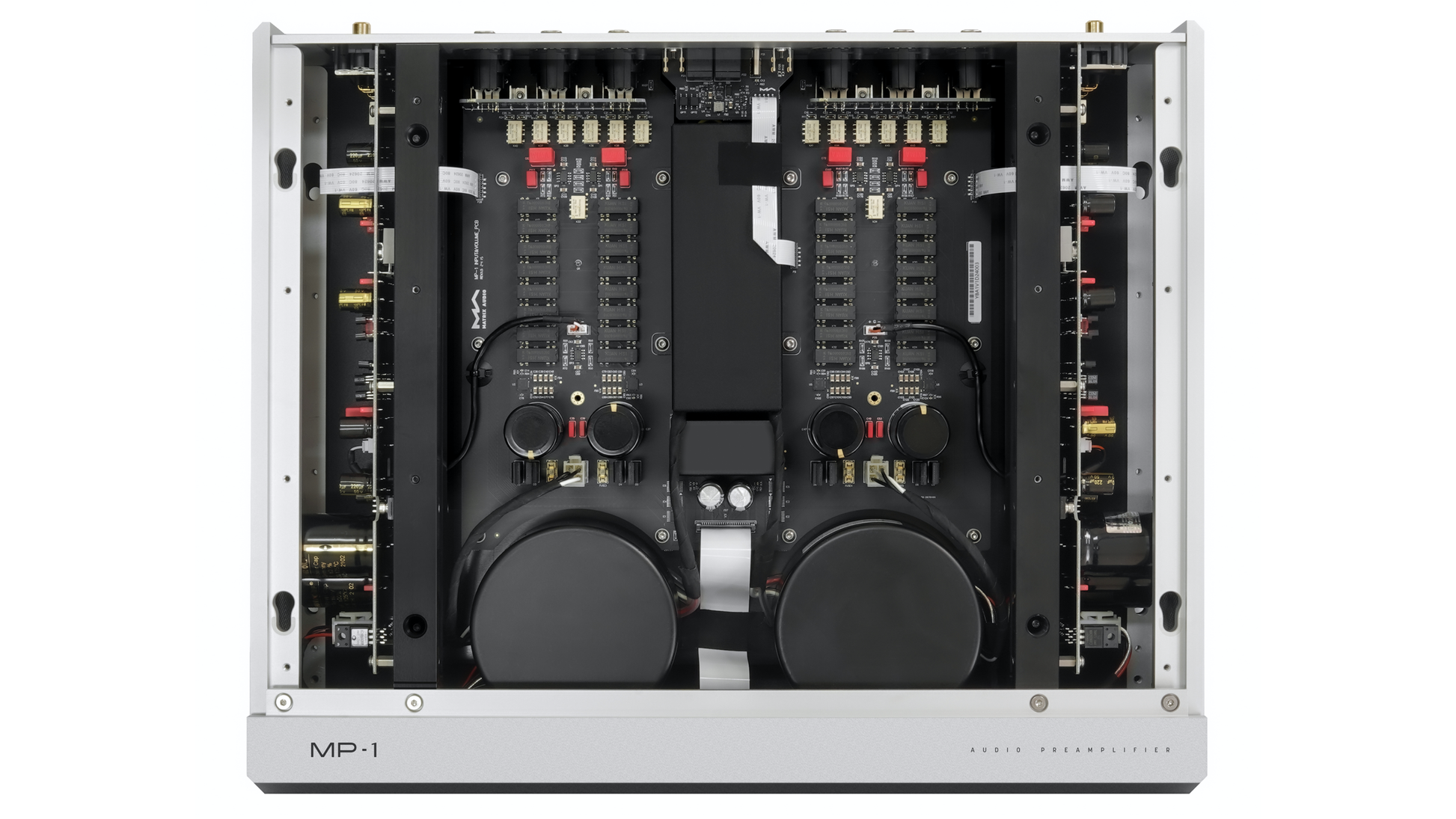

Internally, the Matrix Audio MP-1 employs an ultra-low-noise analog circuit with relay-based switching, discrete buffers, and custom op-amps optimized for transparency. Each channel operates independently, powered by dedicated linear supplies and encapsulated toroidal transformers for perfect channel separation. The stepped resistor volume network provides smooth, precise adjustment while preserving absolute channel balance. Gold-plated relays and fully balanced topology ensure a vanishingly low noise floor and distortion figures measured below 0.0003%.

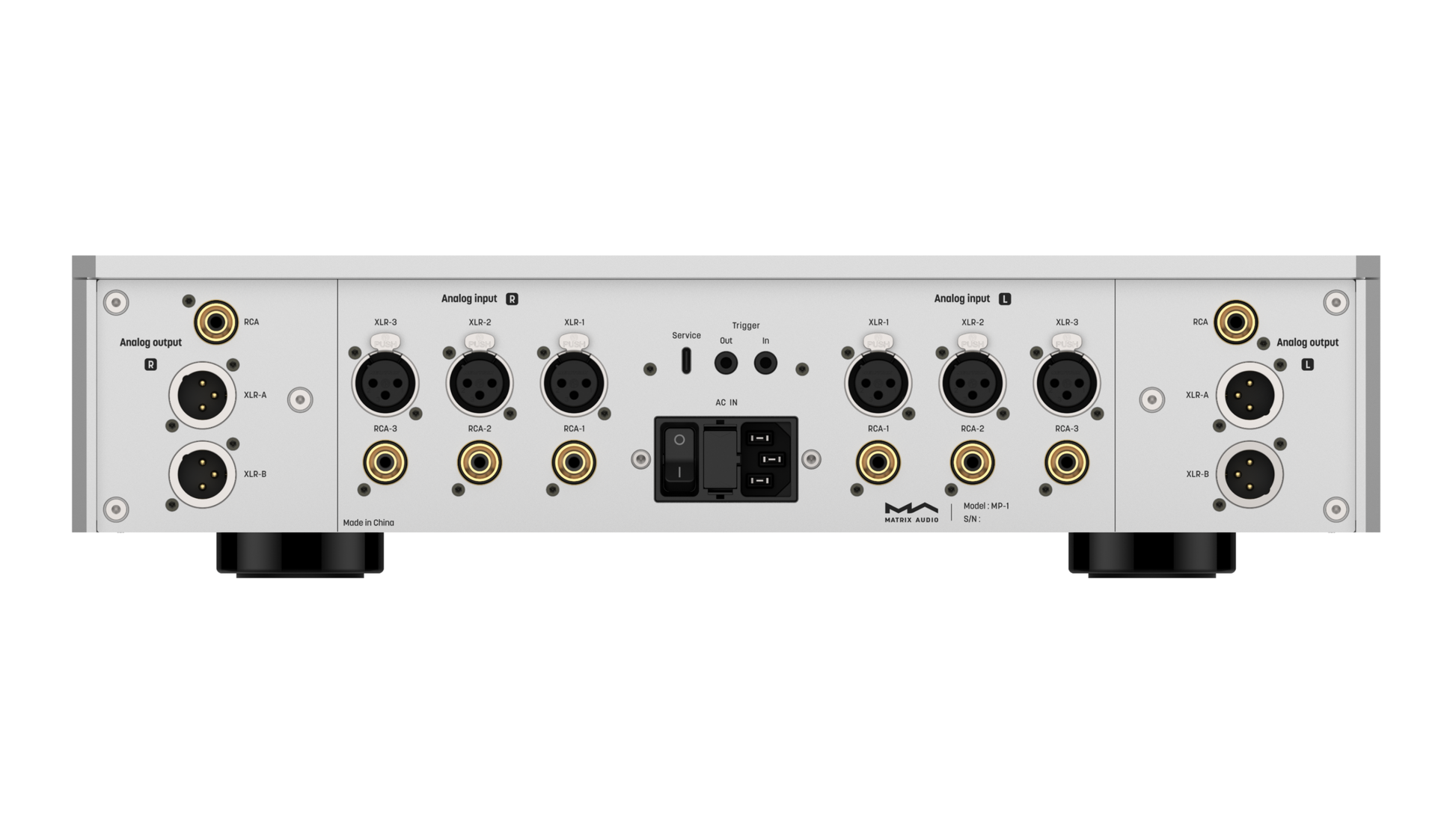

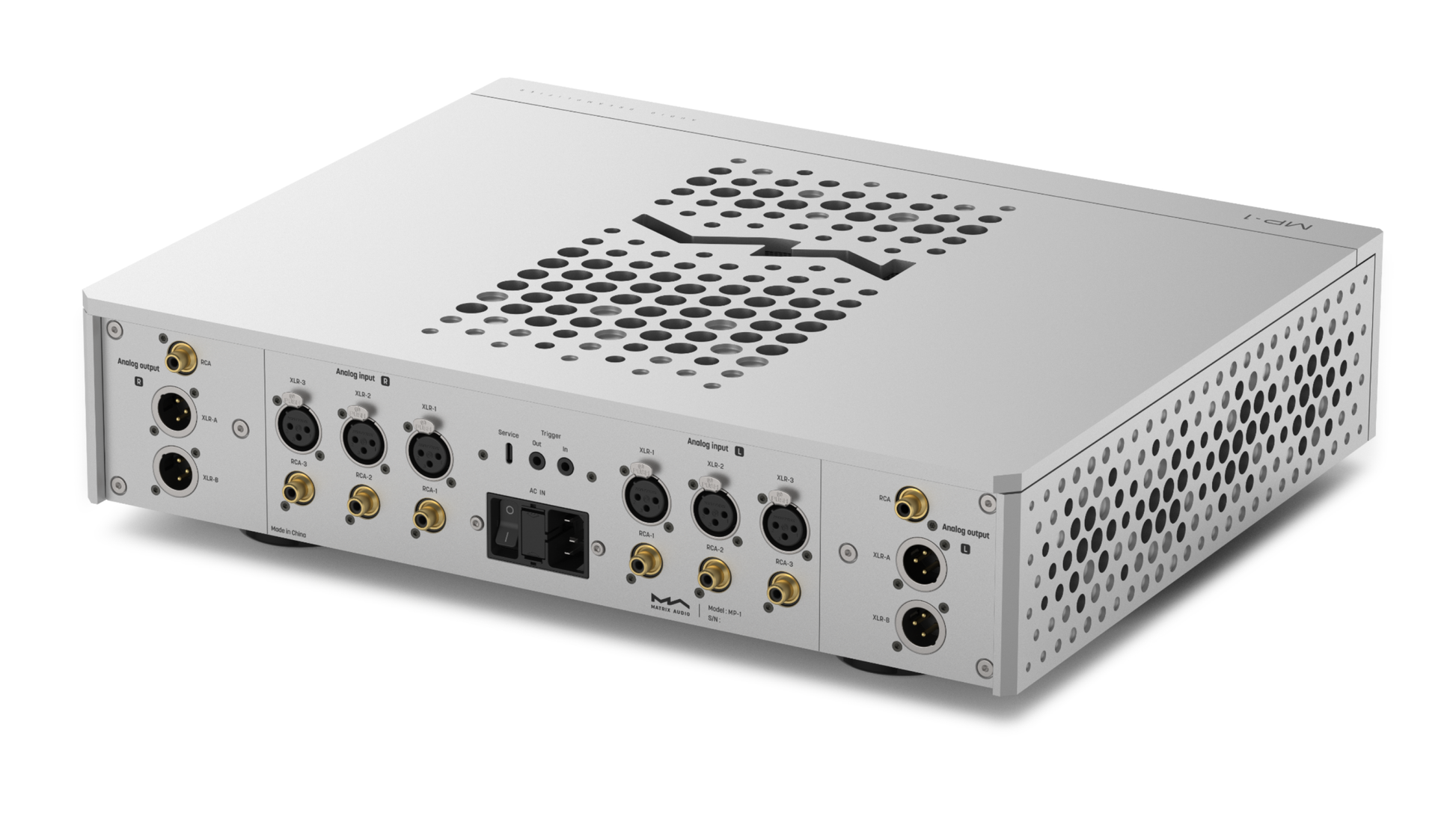

Connectivity is extensive: the Matrix Audio MP-1 includes four balanced XLR and four unbalanced RCA inputs, two balanced XLR and two RCA outputs, and a dedicated subwoofer output. Input assignments and output configurations are customizable through the large color display, with all functions accessible via the included aluminum remote control or trigger automation.

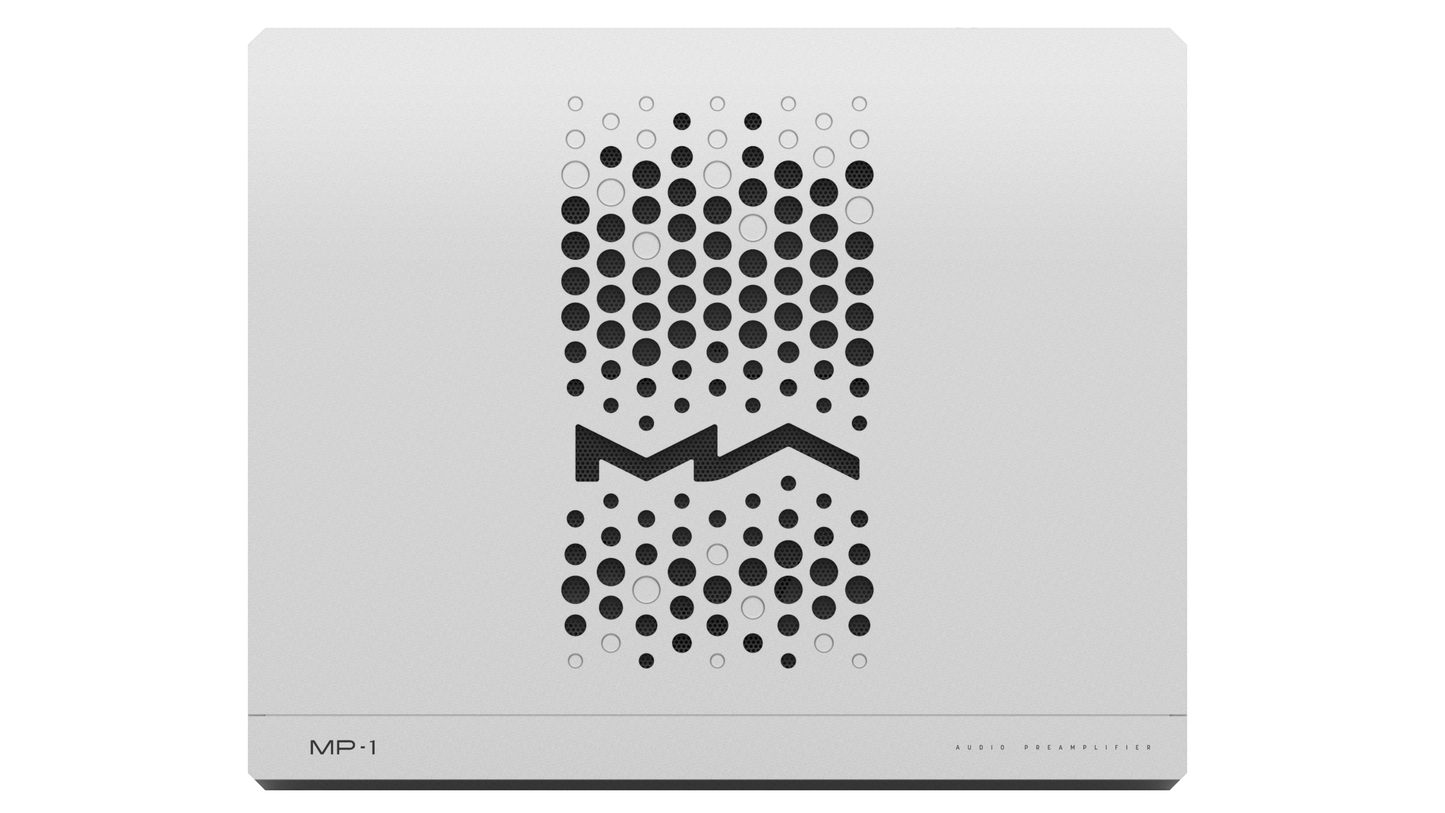

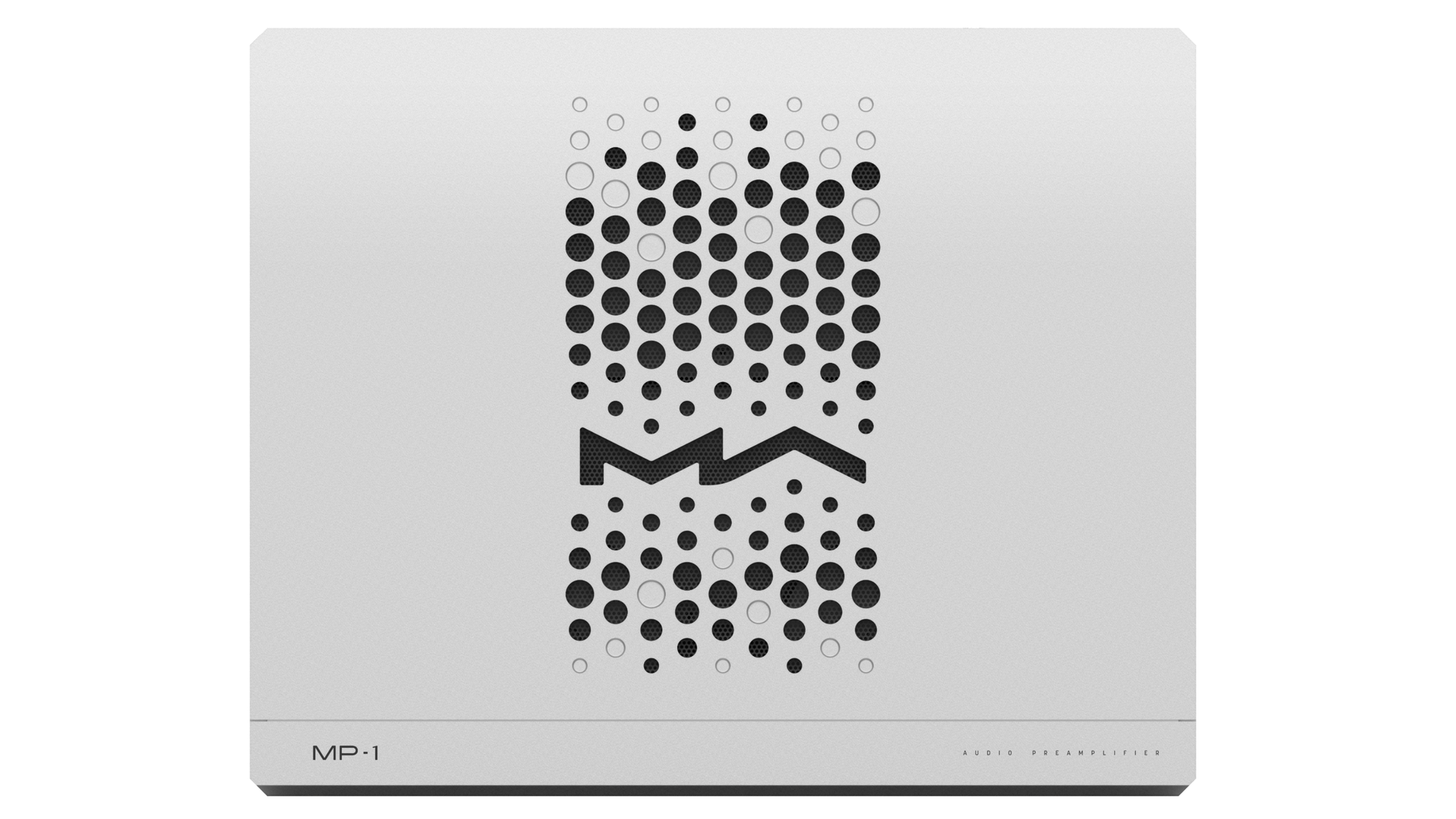

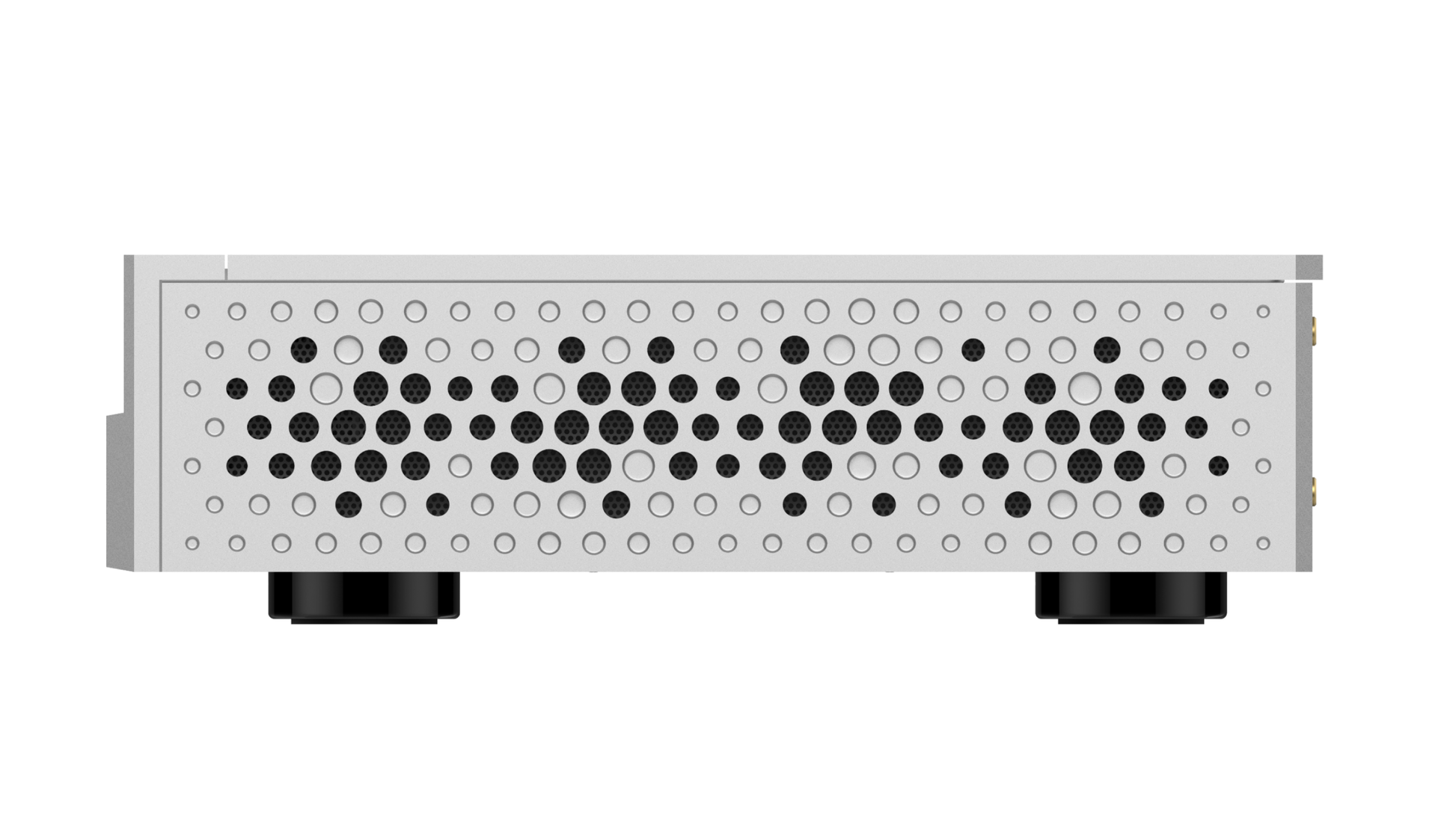

Machined from solid aluminum with a multilayer internal layout, the chassis shields sensitive analog circuits from EMI and vibration. The design reflects Matrix Audio’s meticulous approach to form and function — elegant, modern, and acoustically inert.

For the discerning listener building a reference-grade system, the Matrix Audio MP-1 delivers effortless transparency and natural realism, serving as the perfect complement to the MA-1 amplifier and MS-1 streamer.

For assistance or product questions, call 443-402-5055 or text 443-402-5064 to reach our team. All Elite Audio is an authorized dealer for Matrix Audio with a full home audio showroom.

Key Specifications — Matrix Audio MP-1

• Topology: Fully balanced, dual mono analog preamplifier

• Volume Control: Precision stepped resistor network with relay switching

• Inputs: 4 × XLR balanced, 4 × RCA unbalanced

• Outputs: 2 × XLR balanced, 2 × RCA unbalanced, 1 × RCA subwoofer out

• Gain: +14 dB (balanced), +8 dB (unbalanced)

• Frequency Response: 20 Hz – 100 kHz (±0.1 dB)

• THD + N: < 0.0003% (1 kHz, 2 Vrms output)

• SNR: > 130 dB (A-weighted)

• Channel Crosstalk: > 120 dB (1 kHz)

• Input Impedance: 100 kΩ (XLR), 50 kΩ (RCA)

• Output Impedance: 75 Ω (XLR), 50 Ω (RCA)

• Power Supply: Dual linear toroidal transformers, fully isolated for each channel

• Trigger: 12V trigger in/out for system integration

• Chassis: CNC-machined aluminum enclosure, multi-chamber internal layout

• Display: Full-color touchscreen interface

• Control: Remote control and MA control app

• Dimensions: 430 × 420 × 155 mm (W × D × H)

• Weight: Approx. 25 kg

Top 20 Questions About Matrix Audio MP-1

What is the Matrix Audio MP-1?
The Matrix Audio MP-1 is a fully balanced, dual-mono analog preamplifier designed for reference-grade audio performance as part of the Matrix M-Series.

How does the Matrix Audio MP-1 fit into the M-Series system?
It serves as the centerpiece preamp, pairing perfectly with the MA-1 power amplifier and MS-1 streamer for a complete high-end system.

What type of volume control does the MP-1 use?
It features a precision stepped resistor network controlled by relays, ensuring perfect channel matching and minimal signal degradation.

What are the available input connections?
The MP-1 provides four balanced XLR and four unbalanced RCA inputs to accommodate multiple source components.

What outputs does the MP-1 offer?
It includes two balanced XLR and two unbalanced RCA main outputs plus a dedicated RCA subwoofer output.

Is the Matrix Audio MP-1 fully balanced?
Yes. It maintains a fully balanced signal path from input to output, ensuring low noise and high dynamic range.

How quiet is the Matrix Audio MP-1?
With an SNR over 130 dB and THD + N below 0.0003%, the MP-1 operates at reference noise levels.

Does the MP-1 include tone or DSP controls?
No. It maintains a pure analog signal path with no digital processing to preserve sonic purity.

What kind of power supply is used?
Dual linear toroidal transformers power each channel separately to minimize crosstalk and interference.

Can the MP-1 control a subwoofer?
Yes. It includes a dedicated RCA subwoofer output with configurable settings.

Is the Matrix Audio MP-1 compatible with home automation systems?
Yes. It offers 12V trigger in/out for integration with power amplifiers and smart control systems.

Does the MP-1 have a display?
Yes. A large full-color touchscreen provides clear access to input selection, volume, and configuration menus.

Can I rename or customize inputs?
Yes. Each input can be renamed and configured independently through the front-panel interface.

What materials are used in the chassis?
The chassis is CNC-machined from solid aluminum and divided into isolated internal chambers to protect analog circuits.

How does the MP-1 minimize interference?
Shielded circuit chambers, isolated power sections, and careful grounding design reduce noise and distortion.

Is remote control included?
Yes. The MP-1 ships with an aluminum infrared remote for complete system control.

What gain does the MP-1 provide?
The MP-1 offers +14 dB for balanced and +8 dB for unbalanced output configurations.

How does the MP-1 compare to digital preamps?
It provides a purely analog signal path, avoiding digital conversion for those seeking maximum fidelity and transparency.

What is the retail price of the Matrix Audio MP-1?
The Matrix Audio MP-1 typically retails around $5,499 USD and is always in stock at All Elite Audio.

Who can I contact for more information or a purchase consultation?
For assistance or product questions, call 443-402-5055 or text 443-402-5064 to reach our team at All Elite Audio, your authorized Matrix Audio dealer in Maryland with a full home audio showroom.
