Matrix Audio Element X2 Music Streamer / Headphone Amplifier

Matrix Audio Element X2 Music Streamer / Headphone Amplifier

Flagship all-in-one streaming DAC, headphone amplifier, and preamplifier for serious listeners seeking uncompromised performance in a single, elegant chassis.

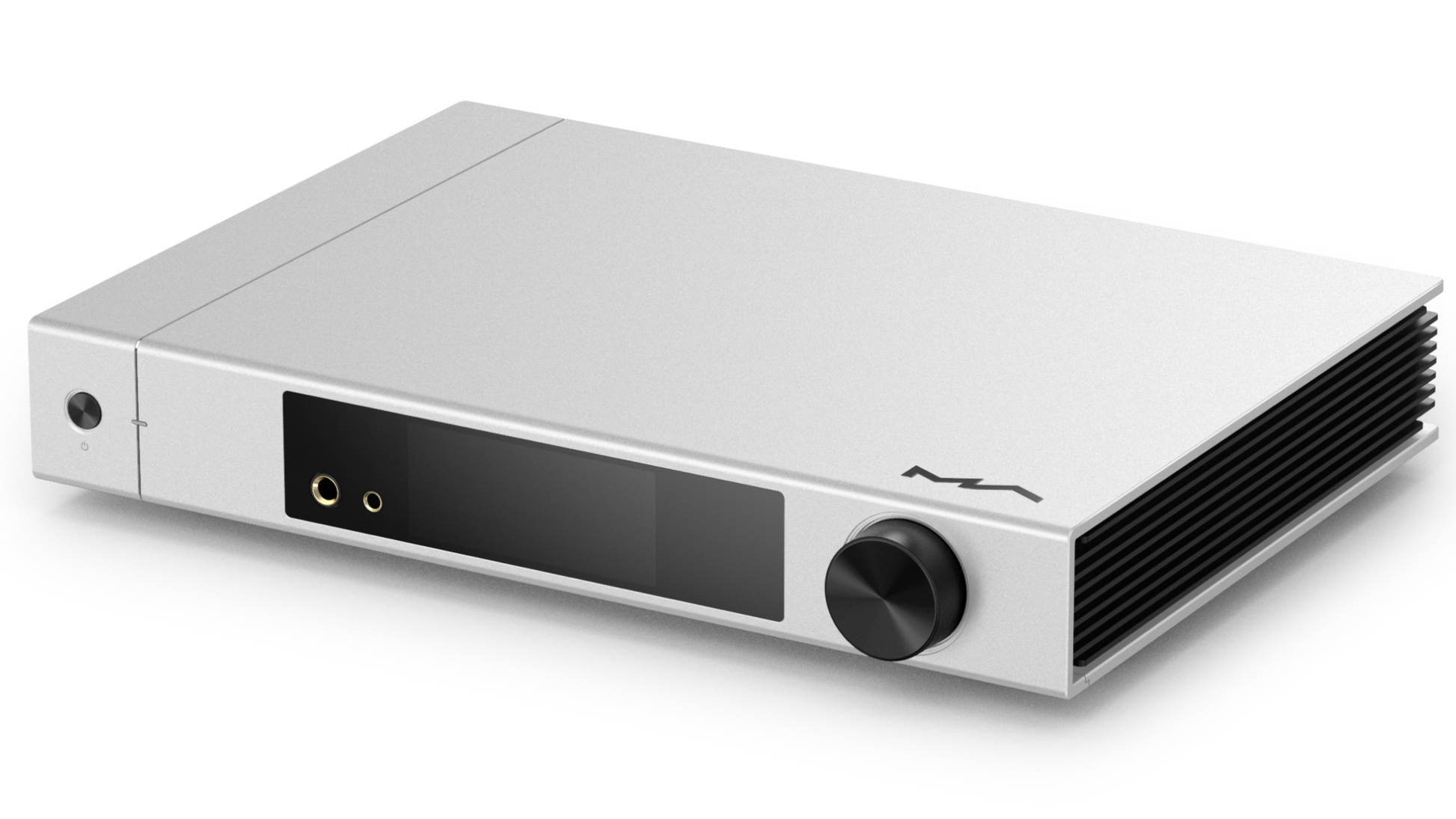

The Matrix Audio Element X2 is built for music lovers who demand the highest fidelity with minimal system complexity. It combines high-resolution streaming, precision DAC conversion, and a fully balanced headphone amplifier in one advanced enclosure. Designed as the centerpiece of a modern hi-fi or desktop setup, the Element X2 can directly drive both headphones and power amplifiers while managing network streaming and analog inputs effortlessly.

At its core, the Matrix Audio Element X2 employs an ESS ES9038PRO DAC, known for its exceptional linearity, dynamic range, and low distortion. The DAC section is paired with a Crystek CCHD-950 femtosecond clock, minimizing jitter for pristine digital-to-analog conversion. Its balanced headphone amplifier uses eight independent amplification units, arranged in parallel pairs to deliver both high output power and low noise. The analog preamplifier stage provides up to +10 dB gain, capable of outputting over 15 volts RMS from its XLR line outputs when enabled.

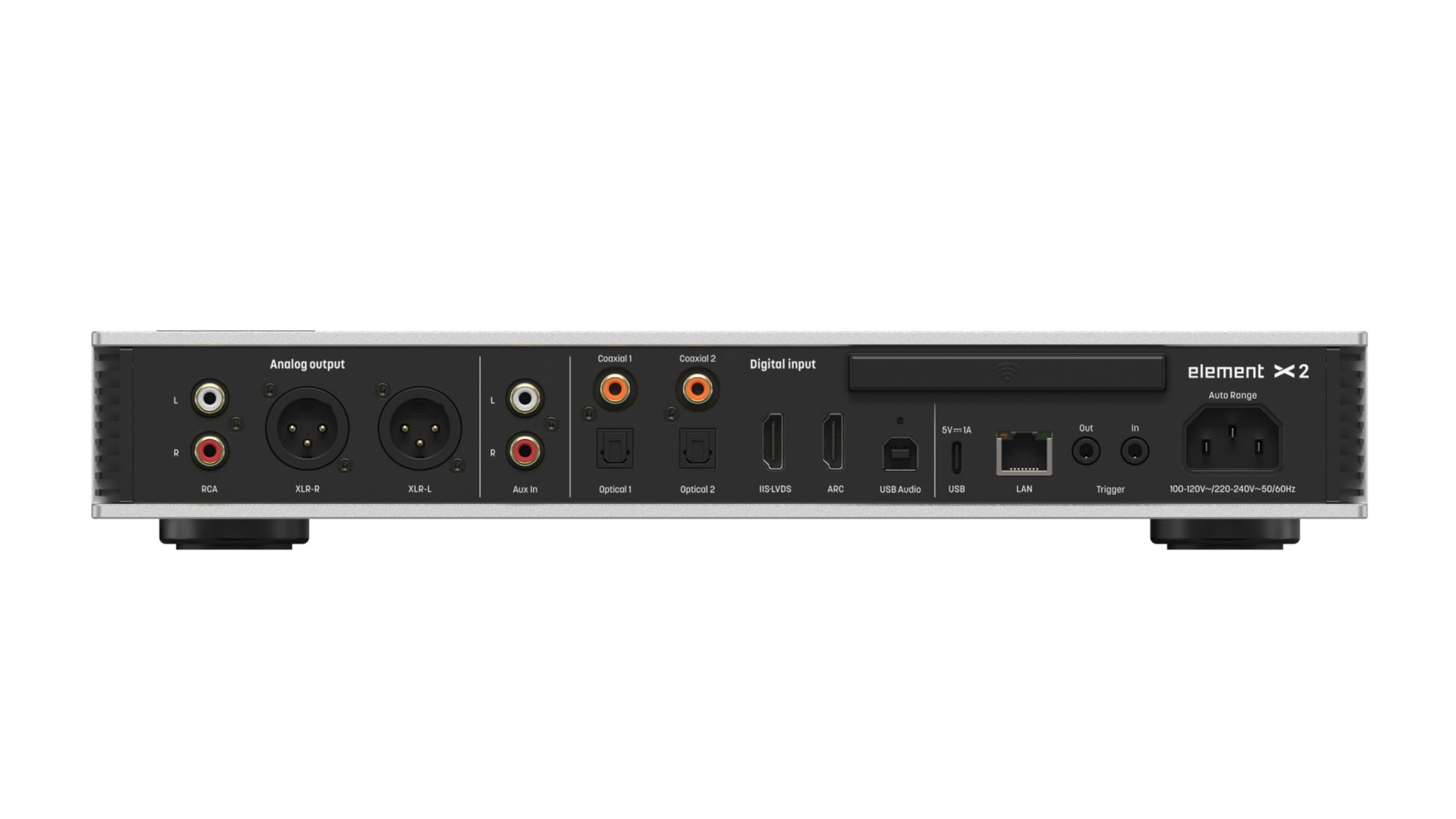

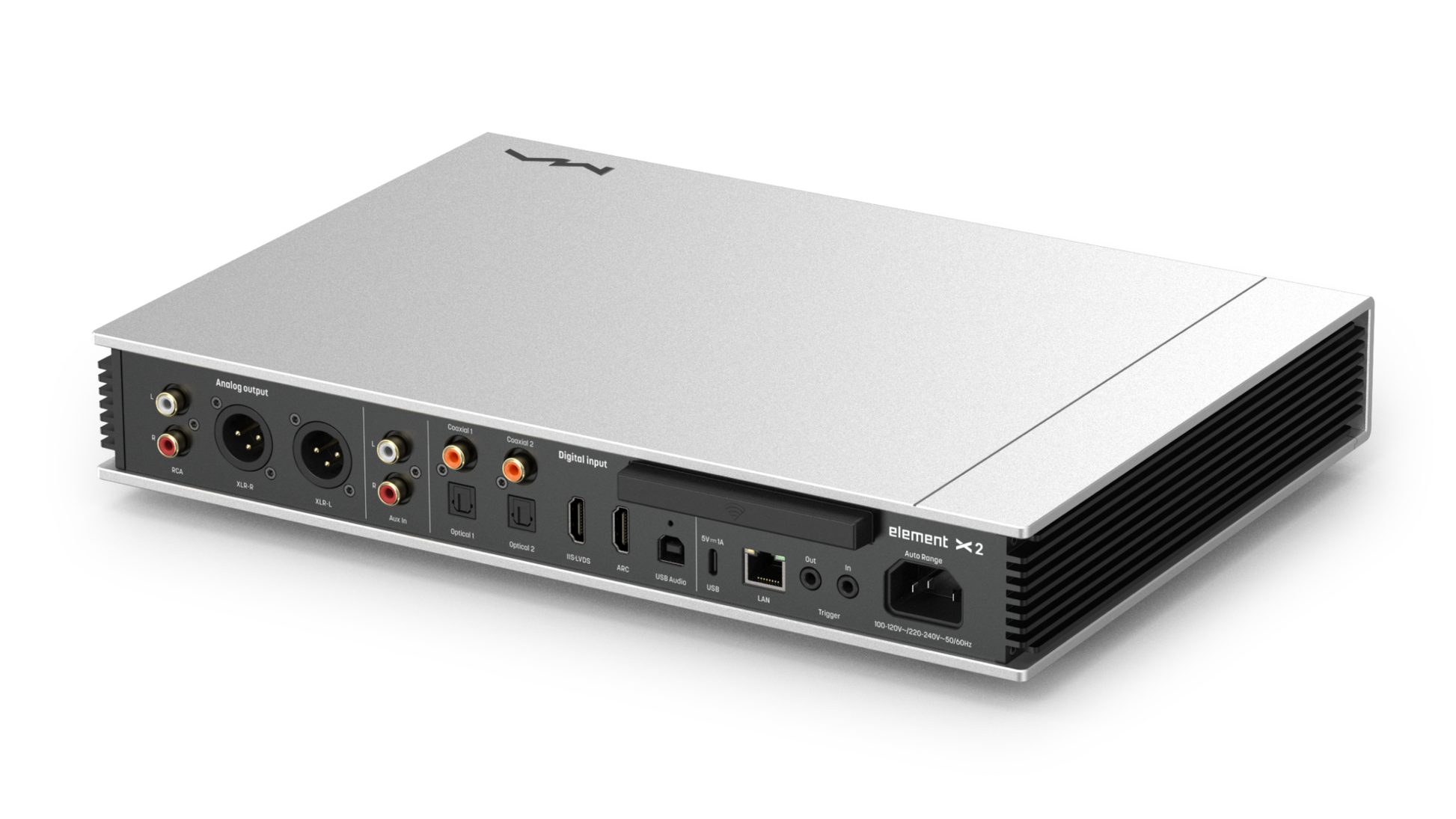

Connectivity is a major strength of the Element X2. It offers USB Audio, dual coaxial and optical inputs, I2S LVDS, HDMI ARC, RCA analog input, and balanced XLR and single-ended RCA outputs. Wireless and network options include dual-band Wi-Fi and gigabit Ethernet. The unit supports Roon Ready, TIDAL Connect, Spotify Connect, AirPlay 2, DLNA, and UPnP streaming for seamless integration into any digital ecosystem.

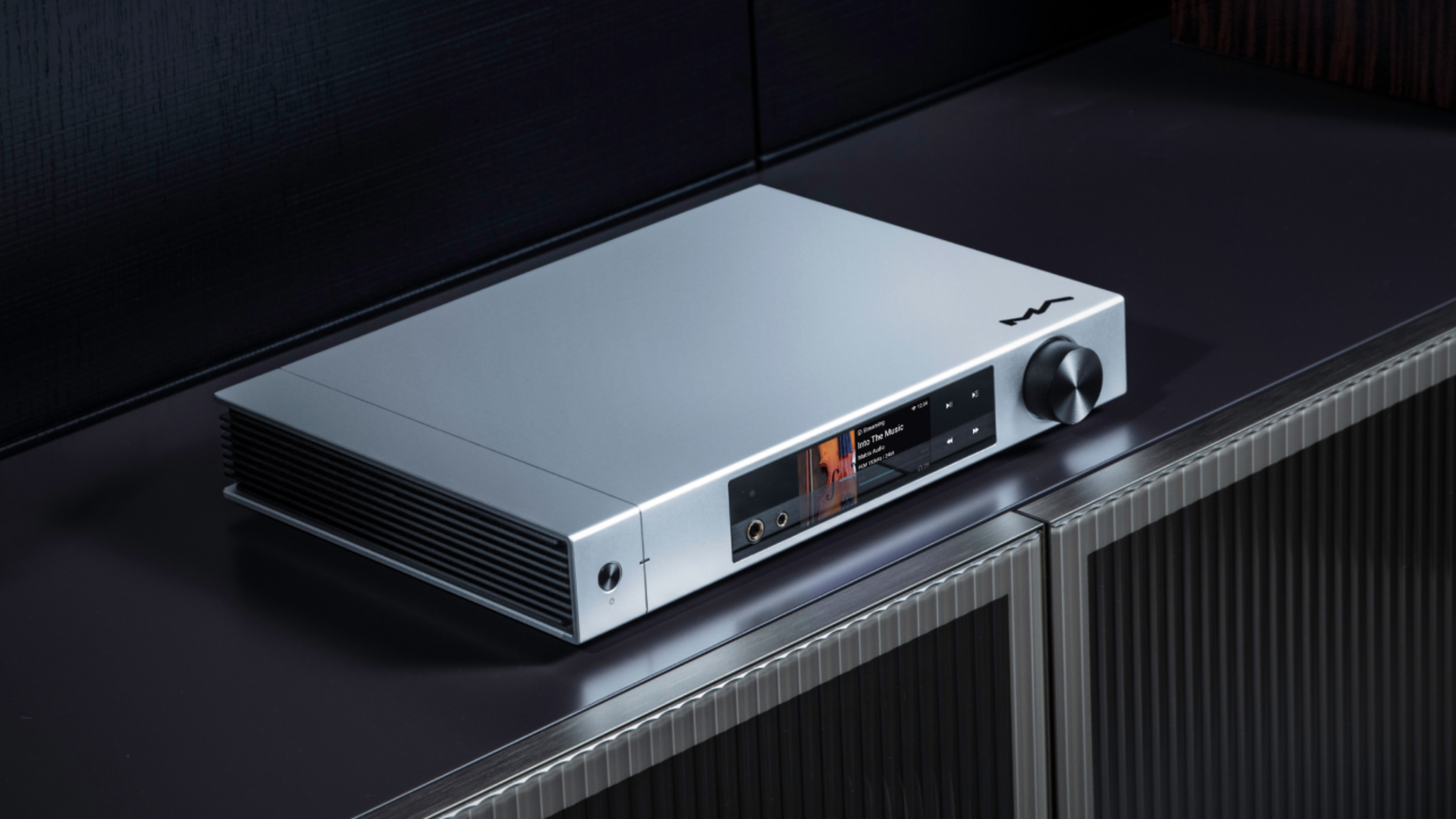

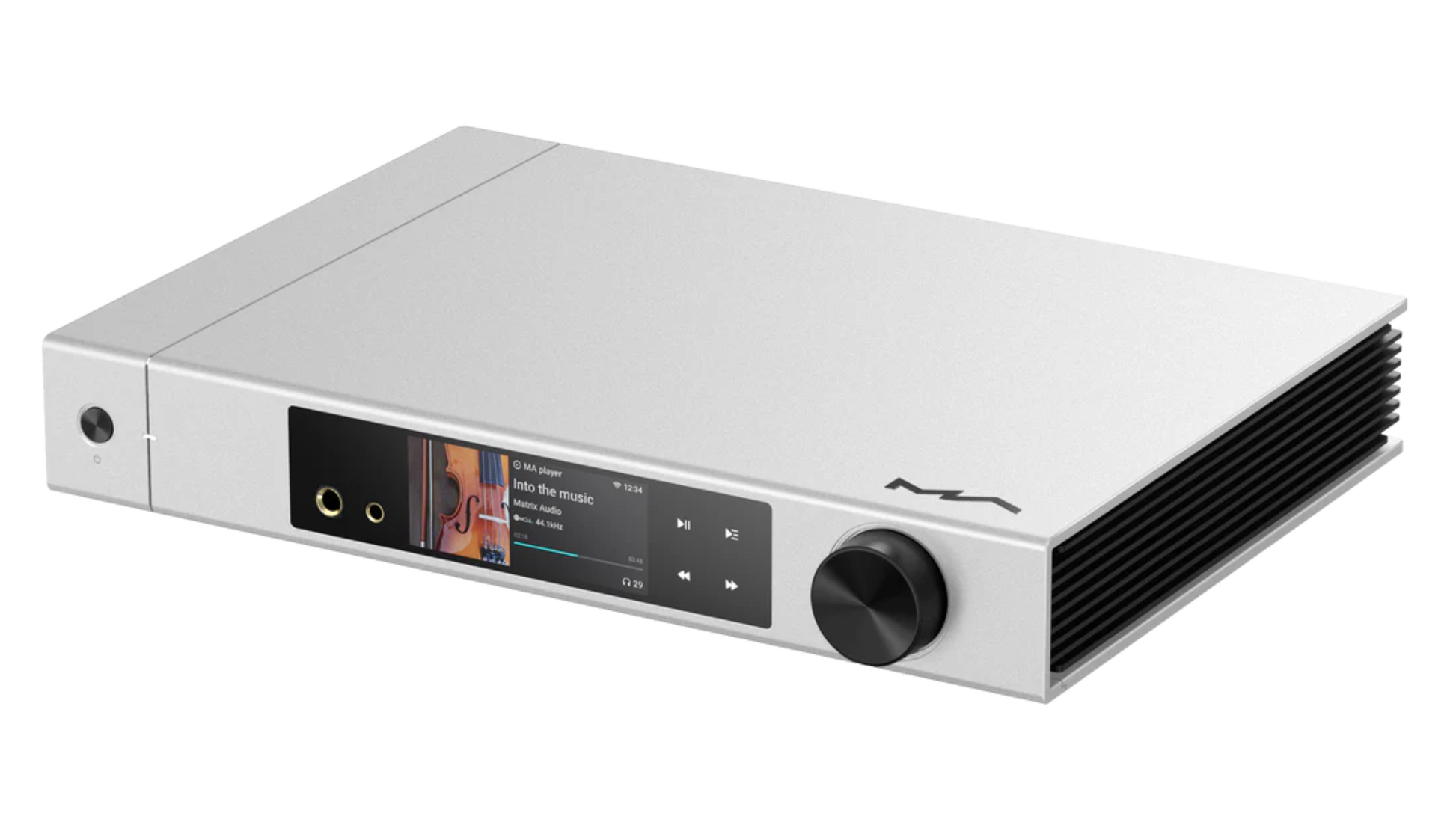

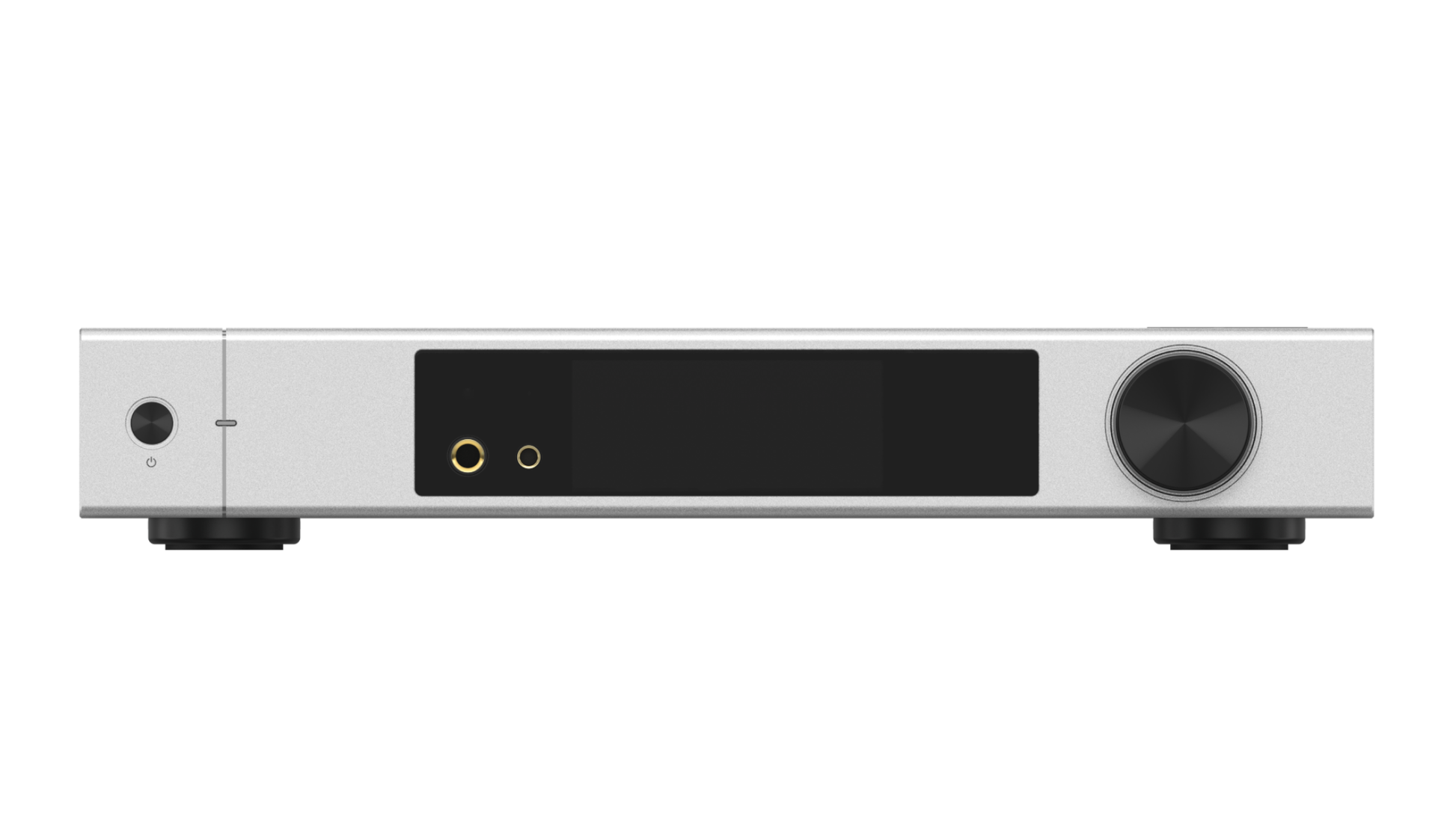

A high-resolution color touchscreen and precision volume knob allow direct control, while the MA Remote App provides full-featured wireless management. The chassis design isolates analog and digital circuits to reduce interference, powered by dedicated linear and switching supplies for optimal performance and stability.

For headphone enthusiasts, audiophiles, and minimalists alike, the Matrix Audio Element X2 delivers exceptional clarity, headroom, and functionality—truly a flagship all-in-one component.

Key Specifications — Matrix Audio Element X2

• DAC Chip: ESS ES9038PRO

• Clock: Crystek CCHD-950 femtosecond clock

• Headphone Amplifier: Fully balanced, eight-channel parallel output design

• Preamp Gain: +10 dB analog gain

• Digital Inputs: USB Audio, coaxial x2, optical x2, I2S LVDS, HDMI ARC

• Analog Input: RCA stereo

• Line Outputs: Balanced XLR and single-ended RCA

• Headphone Outputs: 4.4 mm balanced, 6.35 mm unbalanced

• Headphone Power: Approx. 2600 mW at 33 Ω (balanced), 1100 mW at 300 Ω

• Output Impedance: < 12 Ω balanced, < 6 Ω unbalanced

• Line Output Voltage: Up to 15.8 VRMS with gain enabled

• Streaming Support: Roon Ready, TIDAL Connect, Spotify Connect, AirPlay 2, DLNA, UPnP

• Network: Ethernet and dual-band Wi-Fi (2.4 GHz / 5 GHz)

• Control: Front touchscreen, volume knob, IR remote, MA Remote App

• Frequency Response: 20 Hz – 85 kHz (-3 dB)

• Signal-to-Noise Ratio: 131 dB (XLR line output)

• Dimensions: 340 mm × 259 mm × 58 mm

• Weight: Approximately 4 kg

Top 20 Questions About Matrix Audio Element X2

What is the Matrix Audio Element X2?
The Matrix Audio Element X2 is a high-end streaming DAC, headphone amplifier, and preamplifier that integrates all key audio functions into one device for uncompromised performance.

Which DAC chip does the Matrix Audio Element X2 use?
It features the ESS ES9038PRO DAC, known for its precision, high dynamic range, and ultra-low distortion.

Can the Matrix Audio Element X2 drive high-impedance headphones?
Yes. Its balanced output delivers over 1 watt into 300-ohm loads and can easily drive demanding headphones with authority and control.

Is the headphone amplifier balanced?
Yes. The headphone stage is fully balanced, using eight parallel amplifier modules for high current delivery and low distortion.

Does the Matrix Audio Element X2 include analog inputs?
Yes, it features RCA analog inputs for connecting external sources such as CD players or phono preamps.

What is the output level of the preamp section?
With the +10 dB gain setting engaged, XLR line outputs can deliver up to 15.8 VRMS for driving external power amplifiers.

Does the Matrix Audio Element X2 support HDMI ARC?
Yes. The HDMI ARC input allows seamless connection to televisions for high-quality audio playback.

What streaming services are supported?
The Element X2 supports Roon Ready, TIDAL Connect, Spotify Connect, AirPlay 2, DLNA, and UPnP streaming protocols.

How is jitter minimized in the Matrix Audio Element X2?
It uses a Crystek CCHD-950 femtosecond clock for ultra-precise timing, minimizing jitter across all digital sources.

Can the Element X2 be used as a standalone preamplifier?
Yes. It functions as a high-quality analog preamp capable of directly driving power amplifiers or active speakers.

Does it have both balanced and unbalanced outputs?
Yes. The Element X2 includes both XLR balanced and RCA unbalanced line outputs.

Can I control it with a mobile app?
Yes. The MA Remote App provides full control over streaming, playback, and device settings.

Is Wi-Fi connectivity built in?
Yes. The Element X2 supports dual-band Wi-Fi along with Ethernet for stable streaming.

Does the Matrix Audio Element X2 support DSD playback?
Yes. It supports DSD via both native and DoP formats up to DSD512.

How does it handle analog and digital isolation?
Separate circuit domains and power supplies isolate analog and digital paths for cleaner signal reproduction.

What is the frequency response of the Element X2?
The frequency response extends from 20 Hz to 85 kHz, maintaining flat performance across the audible range.

Can it be integrated into a TV system?
Yes. With HDMI ARC and volume control, it integrates easily into home theater setups.

Is the Matrix Audio Element X2 suitable for desktop systems?
Yes. Despite its power, the compact size and touchscreen make it perfect for premium desktop or nearfield listening setups.

Who should I contact for support or purchase questions?
For assistance or product questions, call 443-402-5055 or text 443-402-5064 to reach our team at All Elite Audio, your authorized Matrix Audio dealer in Maryland with a full home audio showroom.
