Marten Parker Quintet Diamond

Marten Parker Quintet Diamond Edition
Flagship Swedish floor-standing loudspeaker with pure diamond tweeter and ultimate musical precision.

The Marten Parker Quintet Diamond Edition represents the pinnacle of Marten’s Parker series, combining cutting-edge technology and luxurious craftsmanship. This Diamond Edition upgrade brings a pure diamond tweeter, Jorma Statement internal wiring, upgraded crossover components, and premium WBT Nextgen terminals for unmatched detail and refinement. Designed in Sweden, the Marten Parker Quintet Diamond Edition delivers an extraordinary blend of dynamics, texture, and realism that defines true high-end performance.

The 2.5-way floor-standing design uses four 7.5-inch ceramic mid/bass drivers and four 9-inch aluminum passive radiators for deep, controlled bass. The diamond tweeter provides incredible transparency and resolution across the top end, creating an expansive soundstage with exceptional imaging. Its 35 mm M-Board multi-layer cabinet construction, combined with Marten Isolator feet, minimizes resonance and vibration for pure, distortion-free playback.

With a sensitivity of 93 dB and a 4-ohm nominal impedance (minimum ~2.7 ohms), the Marten Parker Quintet Diamond Edition pairs beautifully with high-quality amplifiers. It can handle up to 350 watts, delivering commanding yet refined sound in large listening spaces. Available in elegant Piano Walnut, Matte Walnut, Piano Black, and Piano White finishes, this speaker blends precision audio performance with Scandinavian design sophistication.

For assistance or product questions, call 443-402-5055 or text 443-402-5064 to reach our team. All Elite Audio is an authorized Maryland dealer with a full home audio showroom.

---

Key Specifications:
• Type: 2.5-way floor-standing loudspeaker

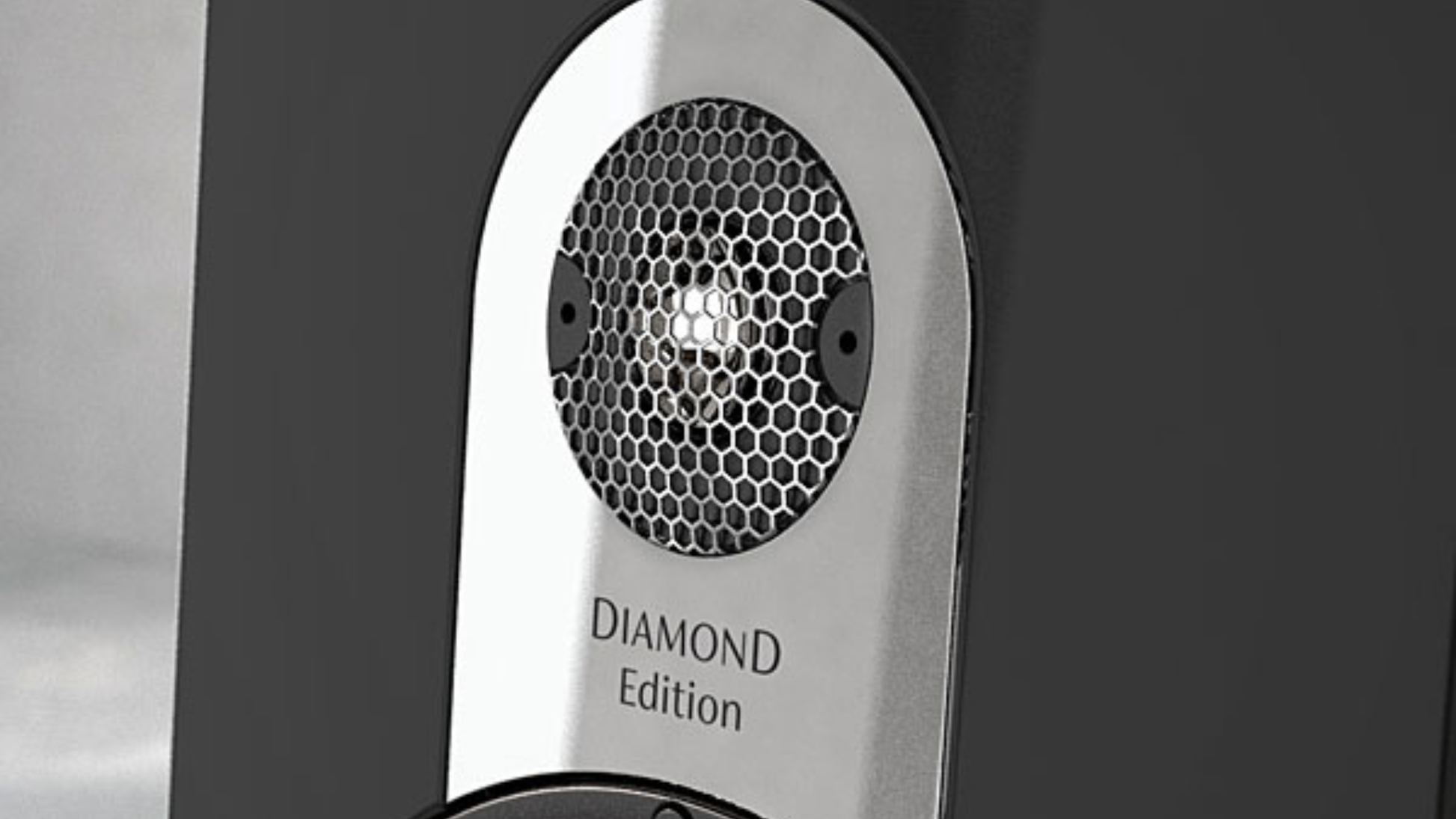

• Tweeter: 1" pure diamond dome (Diamond Edition upgrade)
• Mid/Bass Drivers: 4 × 7.5" ceramic
• Passive Radiators: 4 × 9" aluminum (rear)
• Frequency Range: 24 Hz – 40 kHz (±2 dB)
• Sensitivity: 93 dB (2.83 V, 1 m)
• Nominal Impedance: 4 Ω (minimum ~2.7 Ω)
• Power Handling: 350 W
• Crossover Frequency: ~2,200 Hz (multi-diverse order)
• Terminals: Single-wiring WBT Nextgen (upgraded in Diamond Edition)
• Internal Wiring: Jorma Statement
• Cabinet: 35 mm M-Board multi-layer, premium veneer finishes
• Dimensions (W×H×D): 24–33 × 117 × 54 cm (9.4”–13” × 46” × 21.3”)
• Weight: 60 kg (133 lbs) each
• Finishes: Piano Walnut, Matte Walnut, Piano Black, Piano White

---

Top 20 Questions About the Marten Parker Quintet Diamond Edition

What is the Marten Parker Quintet Diamond Edition?
The Marten Parker Quintet Diamond Edition is the upgraded version of the Parker Quintet, featuring a diamond tweeter and premium crossover and wiring components.

What makes the Diamond Edition different from the standard Parker Quintet?
The Diamond Edition adds a pure diamond tweeter, copper foil capacitors and inductors, Jorma Statement internal wiring, and upgraded WBT Nextgen terminals.

How efficient is the Marten Parker Quintet Diamond Edition?
It has a high sensitivity of 93 dB, making it efficient while still demanding quality amplification.

What is the nominal impedance of the Marten Parker Quintet Diamond Edition?
The nominal impedance is 4 ohms, with a minimum of about 2.7 ohms.

How much amplifier power does the Marten Parker Quintet Diamond Edition need?
It handles up to 350 watts and performs best with high-current amplifiers capable of stable output into 4 ohms.

What drivers are used in the Marten Parker Quintet Diamond Edition?
It uses a 1-inch pure diamond tweeter, four 7.5-inch ceramic mid/bass drivers, and four 9-inch aluminum passive radiators.

What kind of sound does the Marten Parker Quintet Diamond Edition deliver?
The sound is detailed, natural, and spacious, combining the speed and clarity of a diamond tweeter with deep, articulate bass.

Is the Marten Parker Quintet Diamond Edition suitable for large rooms?
Yes, it’s ideal for medium to large rooms where it can fully express its dynamic range and low-end authority.

What crossover design is used in the Marten Parker Quintet Diamond Edition?
It features a refined multi-diverse order crossover with upgraded copper foil capacitors and inductors.

What kind of internal wiring is used?
The Marten Parker Quintet Diamond Edition is internally wired with Jorma Statement cable for maximum signal purity.

What materials are used in the cabinet construction?
It uses 35 mm M-Board multi-layer construction for strength and vibration control, finished in luxury high-gloss or matte veneers.

What isolation technology does it use?
The speaker includes Marten Isolator feet developed with IsoAcoustics to reduce vibration and improve imaging.

Does the Marten Parker Quintet Diamond Edition use ports or radiators?
It uses passive radiators rather than ports for smoother, deeper bass response.

What finishes are available?
Finishes include Piano Walnut, Matte Walnut, Piano Black, and Piano White.

Can the Marten Parker Quintet be upgraded to the Diamond Edition?
Yes, standard Parker models can be factory upgraded to Diamond Edition specifications.

How heavy are the Marten Parker Quintet Diamond Edition speakers?
Each speaker weighs approximately 60 kg (133 lbs).

What is the frequency range of the Marten Parker Quintet Diamond Edition?
The frequency range is 24 Hz to 40 kHz (±2 dB).

What terminals are used for speaker connection?
The speakers use high-quality WBT Nextgen single-wiring terminals.

What is the warranty on the Marten Parker Quintet Diamond Edition?
It includes a 3-year manufacturer warranty when purchased through an authorized dealer.

How can I get expert help or arrange a demo of the Marten Parker Quintet Diamond Edition?
For assistance or product questions, call 443-402-5055 or text 443-402-5064 to reach our team at All Elite Audio, your authorized Maryland dealer with a full home audio showroom.
