EverSolo AMP-F2 Power Amplifier
EverSolo AMP-F2 Power Amplifier
Couldn't load pickup availability
Vigorous Output - Bridged Support
The AMP-F2 is equipped with Starke Sound's NS600 amplifier module, each channel can output a constant 250W RMS (42) @ 1% THD+N. When bridged, it can support up to 450W RMS (2) with THD+N still below 1%. This ability to handle extremely low-impedance loads ensures ample energy even in large and challenging speaker setups, particularly during high-dynamic low-frequency outputs.
Accurate Sound - Perfect Experience
The NS600 module employs PurePath™ Ultra-HD technology and advanced integrated feedback design, featuring high-speed gate driver error correction functions. This technology achieves ultra-low distortion across the entire audio frequency range, delivering perfect high-end audio quality.
Powerful Power Drive
Utilizing a 600W high-efficiency, low-ripple, low-EMI switch power supply, it delivers consistent and powerful output, extremely low noise, enhancing the overall dynamic performance of the system.
Environmentally Friendly Low Power Consumption
AMP-F2 has an extremely low standby power (0.5) and idle power consumption (14W), complying with the European Union ErP standards.
Aluminum Body Shielding Design
Complete self-protection and anti-interference design to avoid disturbances from various electrical environments.
One-Touch Activation - Seamless Control

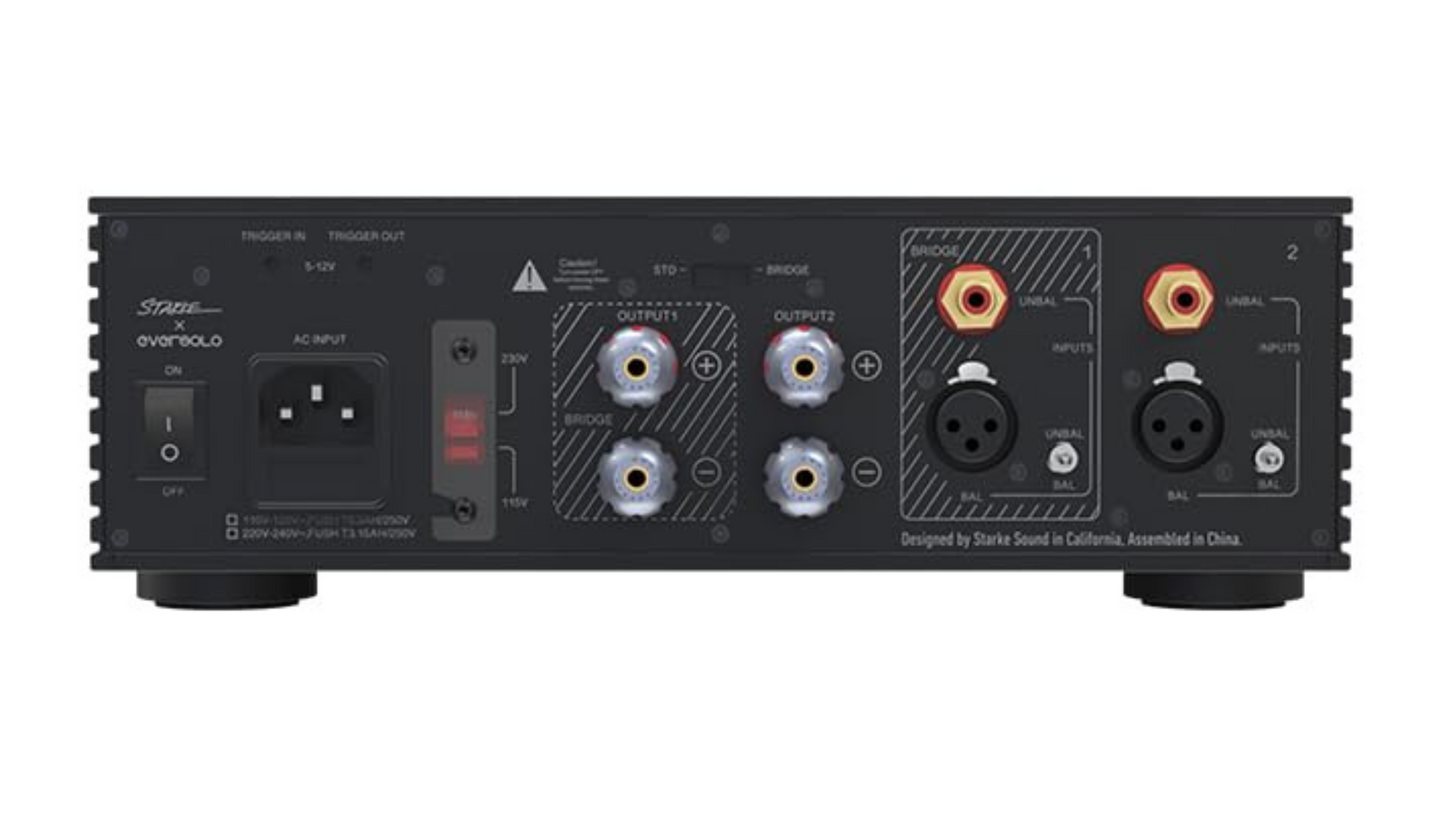

Equipped with a powerful 12V trigger on the AMP-F2 amplifier, this 3.5mm mini-jack connection allows you to create a simple network between all Eversolo products and AMP-F2, ensuring a seamless power on and standby experience. Once connected, it enables one Eversolo product to control the power supply of all other products in the system. When you power on a single device, the rest of the system will automatically turn on.
Details & Specs
Model | AMP-F2 |
---|---|
Output Power |
|
Gain | 21.5dB |
Channel Quantity | x 2 |
Amplifier Type | Class D |
Frequency Response | 10Hz-20KHz - 1dB |
Maximum Output Current Per Channel | 16.5A/33A(Bridge) |
Signal-To-Noise Ratio (SNR) | >110dB, "A" weighted at 4 ohm 250W |
THD | 0.003% 10W at 1KHz |
Input Terminals |
|
Input Impedance (RCA) | 11KQ |
Input Impedance (XLR) | 22K9 |
Input Sensitivity | 2.7V |
Output Terminals | 2 pairs beryllium copper binding post custom made by Starke Sound |
Output Impedance | 0.1362Ω(5 Hz to 100 kHz) |
Minimum Load Impedance | 0.80Ω |
True Balance Circuit | Yes |
Heat | 65 BTU / hr |
Power Consumption | Standby ≤0.5W Idle ≤14W (Maximum 900W) |
Control Option | 12V trigger input & output |
Cabinet | Aluminum (Black) |
Size | 270x228x80 (mm) |
