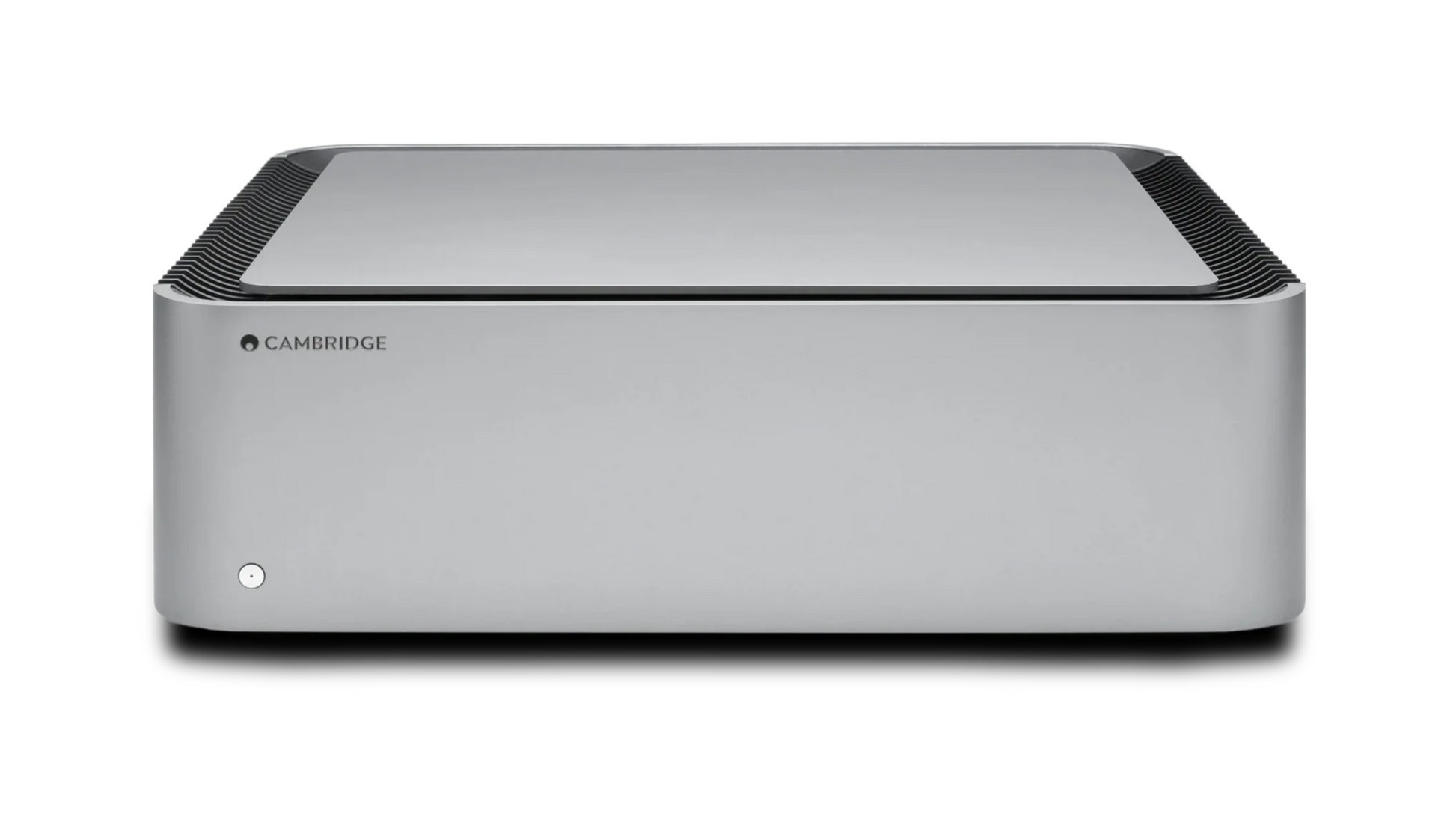

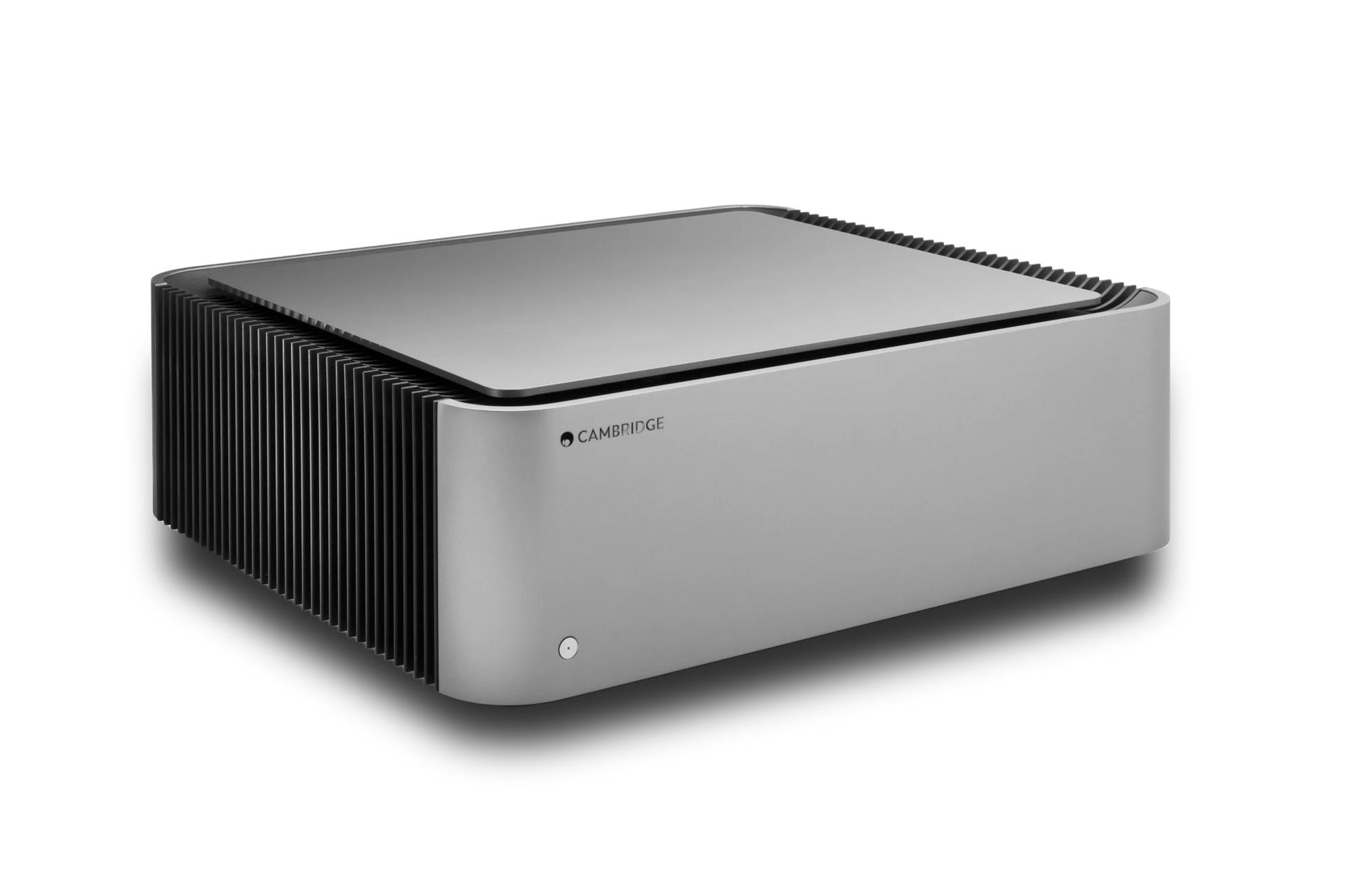

Cambridge Audio Edge W Power Amplifier

Cambridge Audio Edge W – Dual Mono Power Amplifier for Pure, Uncompromising Sound

The Cambridge Audio Edge W is the pinnacle of minimalist power amplifier design. Crafted to deliver pure musical performance with breathtaking clarity, control, and depth, the Edge W combines audiophile engineering, hand-selected components, and precision dual-mono construction to bring your music to life with absolute authenticity. It’s the ideal choice for those who want the cleanest possible power delivery in a no-compromise stereo setup.

 Ultra-Pure, High-Powered Amplification

 100W per Channel into 8Ω / 200W into 4Ω – Provides effortless control and dynamic headroom, driving even power-hungry speakers with authority and finesse.
 Class XA Amplification Technology – Eliminates crossover distortion by operating just outside traditional Class A, achieving the richness of Class A with higher efficiency and reduced heat.
 Dual Mono Design – Completely separate left and right channel amplification ensures perfect channel separation and an ultra-wide, clean soundstage.

 Hand-Selected Components for Sonic Transparency

 Short Signal Paths with No Capacitors in the Signal Chain – Maintains signal integrity from input to output, allowing the original source to shine without coloration.
 Toroidal Transformers with Opposing Windings – Two large, mirrored toroidal transformers cancel out electromagnetic interference, offering rock-solid power delivery with virtually no hum.

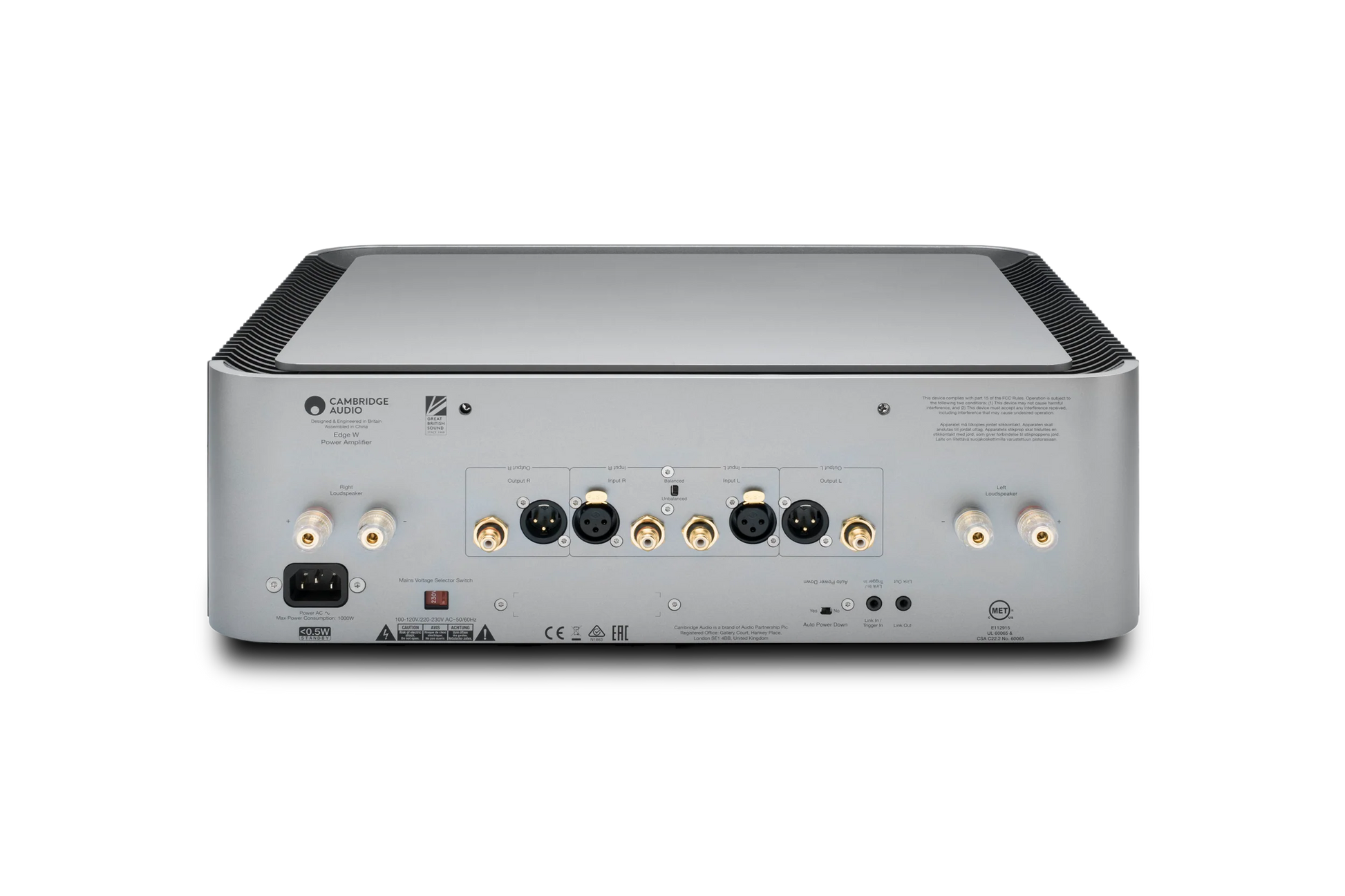

 Inputs & Outputs – Streamlined for Purity

 1 x Balanced XLR Input (Stereo Pair) – Provides superior signal integrity from balanced preamps or high-end DACs, perfect for revealing detail and dynamics.
 1 x Unbalanced RCA Input (Stereo Pair) – Allows connection to conventional analog preamps or integrated control units.
 1 x Pair of Premium 5-Way Binding Post Speaker Outputs – Heavy-duty, gold-plated terminals accept banana plugs, spades, or bare wire for versatile and secure speaker connections.
 1 x Trigger Input / Output (3.5mm jack) – Enables synchronized power control with compatible components in your system.
1 x RS232 Port – For custom integration and control in advanced installations.

 Build Quality & Design Excellence

 Thick Aluminum Chassis with Floating Top Plate – Provides excellent vibration damping and a sleek industrial aesthetic that complements any high-end system.
 Dual-Layer Side Panels – Enhance rigidity while suppressing mechanical and airborne vibration that could affect delicate signal circuitry.

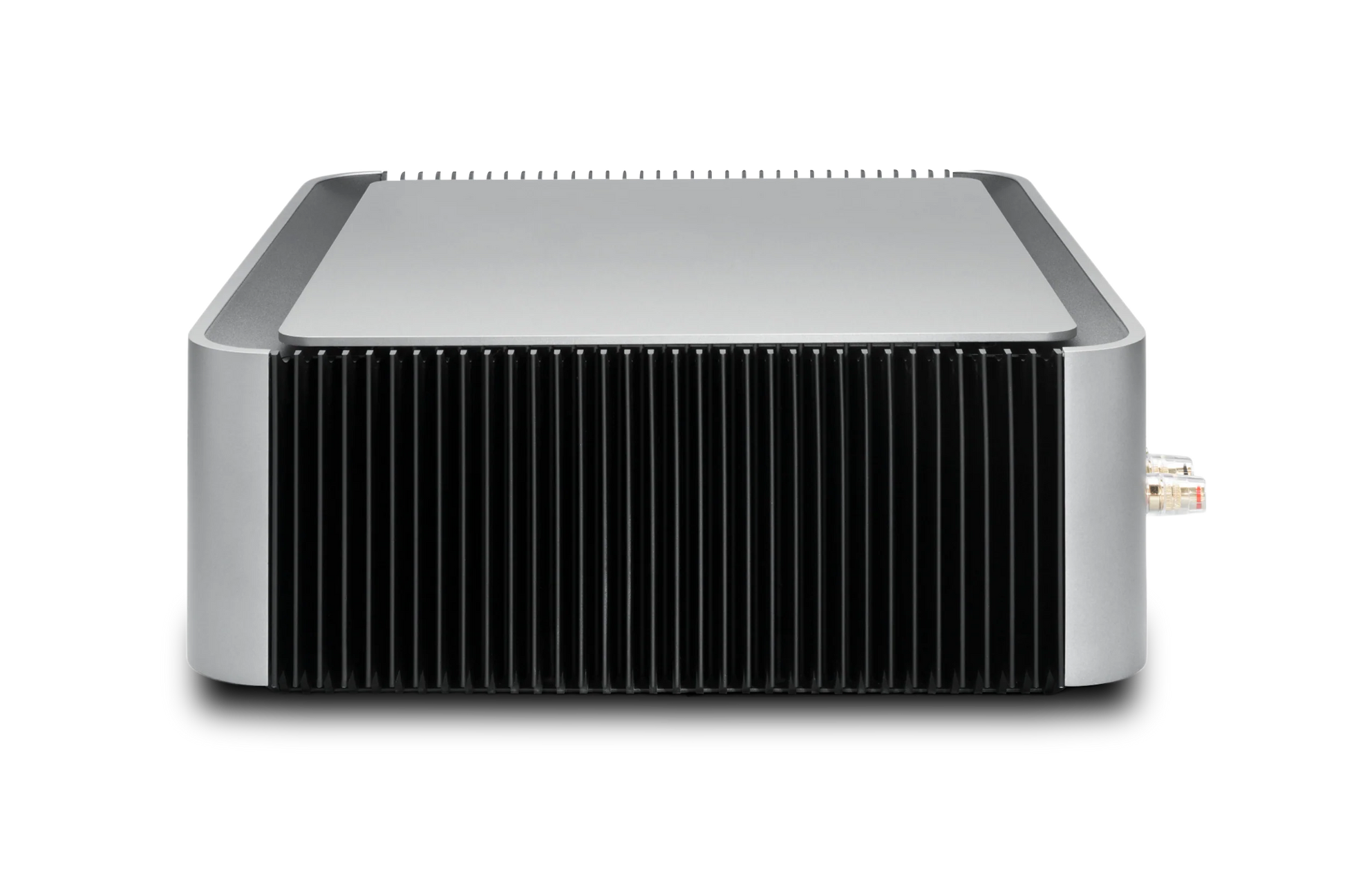

 No Internal Fans – Passive Cooling Design – Eliminates fan noise completely while ensuring optimal thermal performance through smart heat-sinking.

 Technical Specifications

Power Output: 100W RMS per channel (8Ω), 200W RMS per channel (4Ω)

Frequency Response: <3Hz–80kHz ±1dB

THD (Total Harmonic Distortion): <0.002% (1kHz @ rated power)

Signal-to-Noise Ratio: >103dB (unweighted)

Inputs: 1 x RCA stereo pair, 1 x XLR balanced stereo pair

Outputs: 1 pair speaker binding posts, 12V trigger in/out, RS232

Dimensions (W x H x D): 460 x 150 x 405 mm (18.1" x 5.9" x 15.9")

Weight: 23.6 kg (52 lbs)
