AudioQuest PowerQuest 909 20-Amp Power Conditioner

AudioQuest PowerQuest 909 20-Amp Power Conditioner

The flagship of the PowerQuest series — 20-amp conditioning with Transient Power Correction, ultra-linear filtering, and non-sacrificial surge protection.

The AudioQuest PowerQuest 909 is a flagship-tier 20-amp AC power conditioner designed for high-end two-channel and home theater systems where power quality directly affects performance. It delivers wide-bandwidth differential and common-mode ultra-linear filtering across 12 hospital-grade outlets — four variable/high-current outlets for amplifiers and four each of linear-filtered outlets for source components and displays — backed by a 45-amp peak Transient Power Correction circuit, non-sacrificial surge protection rated to withstand repeated 6000V/3000A surges, and Extreme Voltage Shutdown that activates in under a quarter second. It ships with the AudioQuest PQ-920 power cable, a 2m 20A (C19) Monsoon-level cable built with Perfect-Surface Copper+ conductors and ZERO-Tech and RF/ND-Tech technologies. At $2,499.95 it is the most capable product in the PowerQuest family and the appropriate foundation for any serious high-performance system.

Available now at All Elite Audio, your authorized AudioQuest dealer in Timonium, Maryland — with in-store demos, expert guidance, and nationwide shipping.

20-Amp Capacity and Transient Power Correction — 45 Amps Peak on Demand

The PowerQuest 909 is rated for 20 amps RMS continuous current — a 20A C19 inlet, not the standard 15A IEC C14 found on most power conditioners and consumer components. This 20-amp capacity is not simply a safety margin: it ensures the PQ-909 itself never becomes a bottleneck for high-draw components like power amplifiers and active subwoofers during demanding musical passages.

Beyond the 20A continuous rating, the PQ-909's Transient Power Correction (TPC) circuit provides a current reservoir of 45 amps peak for up to 25 milliseconds — on demand. Power amplifiers are notoriously current-hungry during loud musical transients: the sudden demands of a kick drum, orchestral climax, or cinematic explosion can momentarily exceed what the wall outlet can supply cleanly, causing the amplifier to compress dynamically. The TPC circuit holds a reservoir of charge that the amplifier draws on during these brief peaks, ensuring the low-impedance current delivery the amplifier needs for uncompressed dynamic contrasts, deep bass extension, and precise control. This is the PowerQuest 909's most significant performance advantage for amplifier-driven systems.

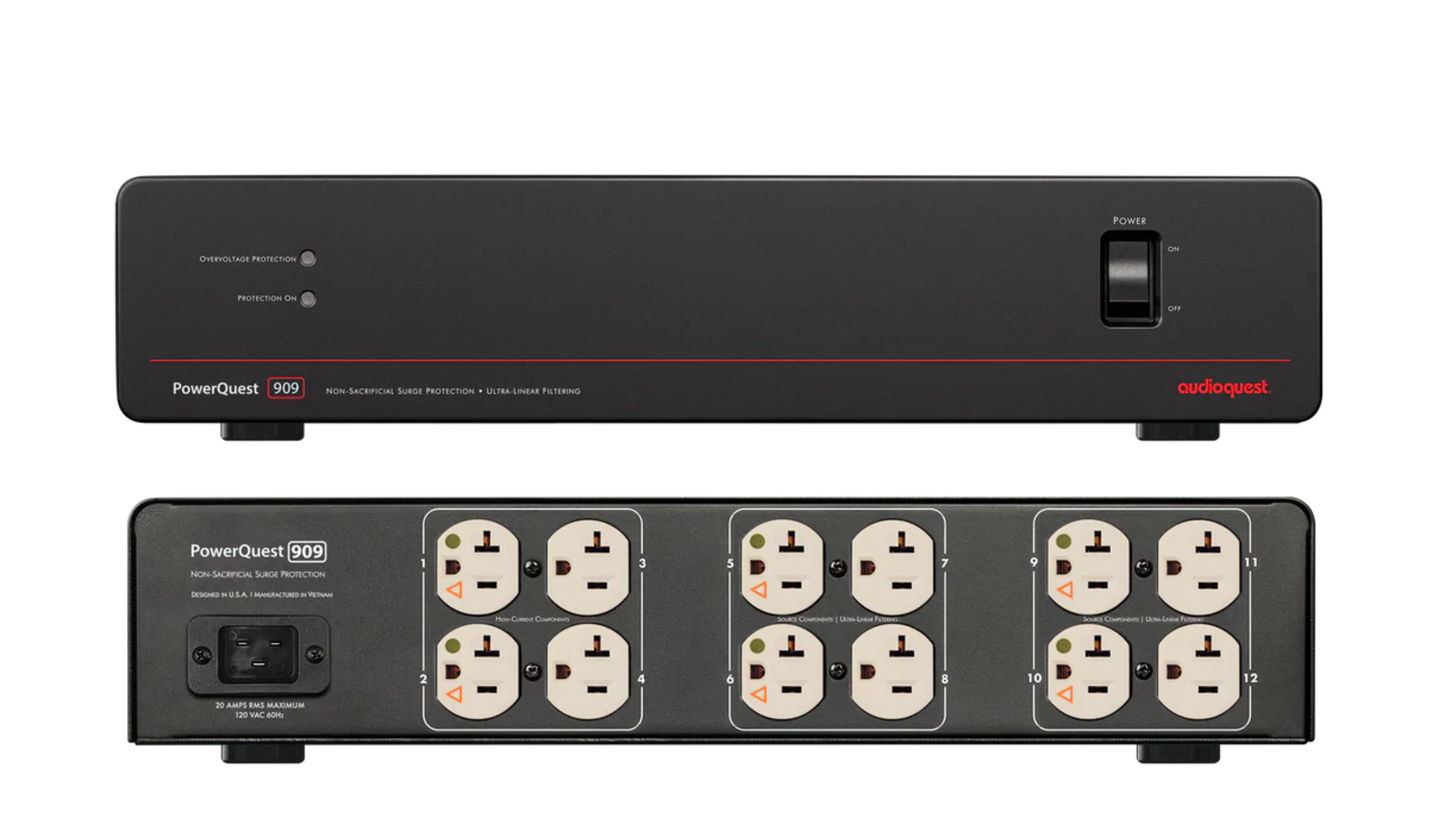

12 Hospital-Grade Outlets — Two Types for Two Jobs

The PQ-909's 12 outlets are divided into two functionally distinct groups, and understanding the difference matters for proper setup. Four outlets are designated High/Variable-Current for amplifiers — these provide unrestrained current delivery with minimal filtering impedance, allowing power amplifiers and powered subwoofers to draw the instantaneous current peaks they require without restriction. Eight outlets are Linear-Filtered/Constant-Current for source components and displays — these provide the wide-bandwidth ultra-linear filtering that reduces noise on the power lines feeding DACs, streamers, preamplifiers, displays, and other source equipment. All 12 outlets are hospital-grade for secure, low-resistance contact.

Connecting a power amplifier to a filtered source outlet — or a sensitive DAC to a high-current amplifier outlet — does not use either outlet type to its intended advantage. The correct practice is to identify which components in your system are amplifiers or high-current devices, connect them to the four high-current outlets, and connect everything else to the eight filtered source outlets.

Wide-Bandwidth Differential and Common-Mode Ultra-Linear Filtering

The PQ-909's filtering system addresses AC power noise in two modes simultaneously. Differential-mode noise appears between the live and neutral conductors and includes hash and interference generated by switching power supplies, motor loads, and other electronics on the same circuit. Common-mode noise appears equally on both live and neutral conductors relative to ground and includes RF interference from wireless devices, computers, and broadcast sources. By filtering both modes with wide-bandwidth ultra-linear circuits — AudioQuest describes this as the widest bandwidth filtration in the PowerQuest family — the PQ-909 removes the contamination that raises the noise floor of sensitive audio components, contributes to listener fatigue, and masks low-level musical detail.

Non-Sacrificial Surge Protection — Unlimited Joule Rating

Most surge protectors use Metal Oxide Varistors (MOVs) that absorb surge energy by degrading — each large surge event reduces their remaining capacity until eventually they stop protecting and must be replaced, often without any visual indication that protection has been lost. The PowerQuest 909 uses a non-sacrificial surge protection design with an unlimited joule rating that withstands repeated transient power surges and spikes up to 6000V or 3000A — the maximum level that can pass through a building's electrical panel — without being consumed or degraded. The protection does not diminish over time and does not need replacement after surge events. This is not a feature you set and periodically check — it is genuinely set-and-forget.

Extreme Voltage Shutdown — Automatic at 140VAC

The PQ-909 monitors incoming AC voltage and automatically opens the main power relay if voltage exceeds 140VAC, protecting connected equipment from dangerous overvoltage conditions in under 0.25 seconds. When incoming voltage returns to safe levels, the relay resets automatically and power is restored to connected equipment without requiring manual intervention. This protection addresses scenarios such as a failed voltage regulator at the utility level, a wiring fault in the building's electrical panel, or other conditions that can send damaging voltage to audio components.

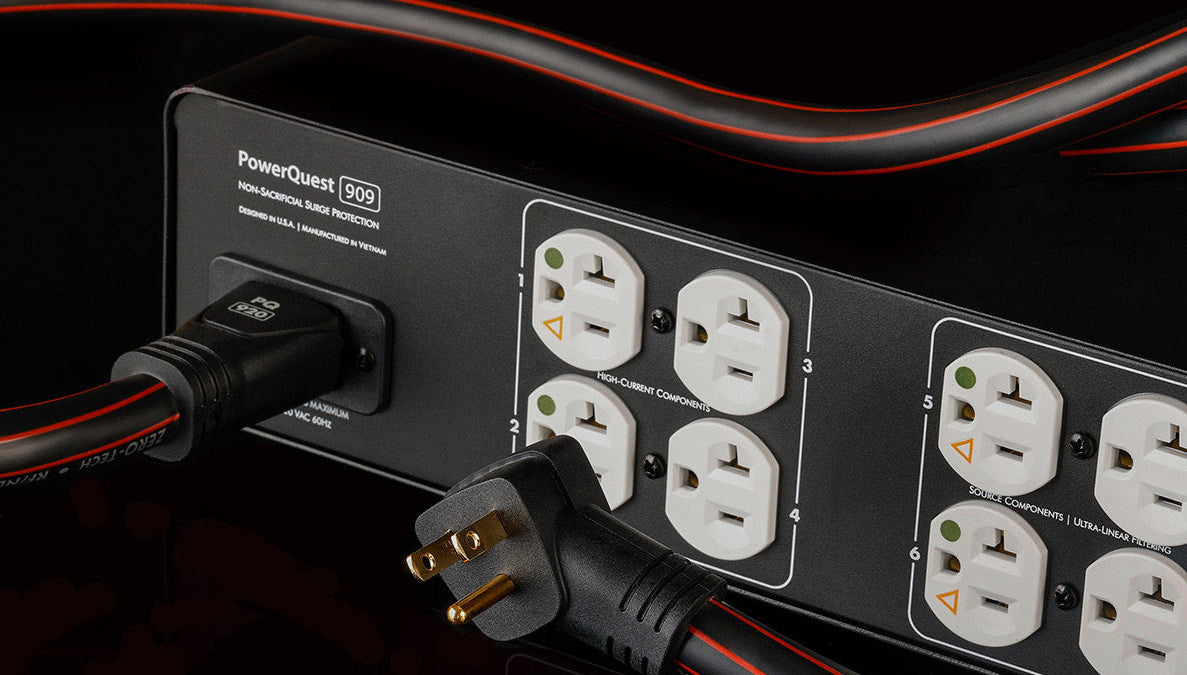

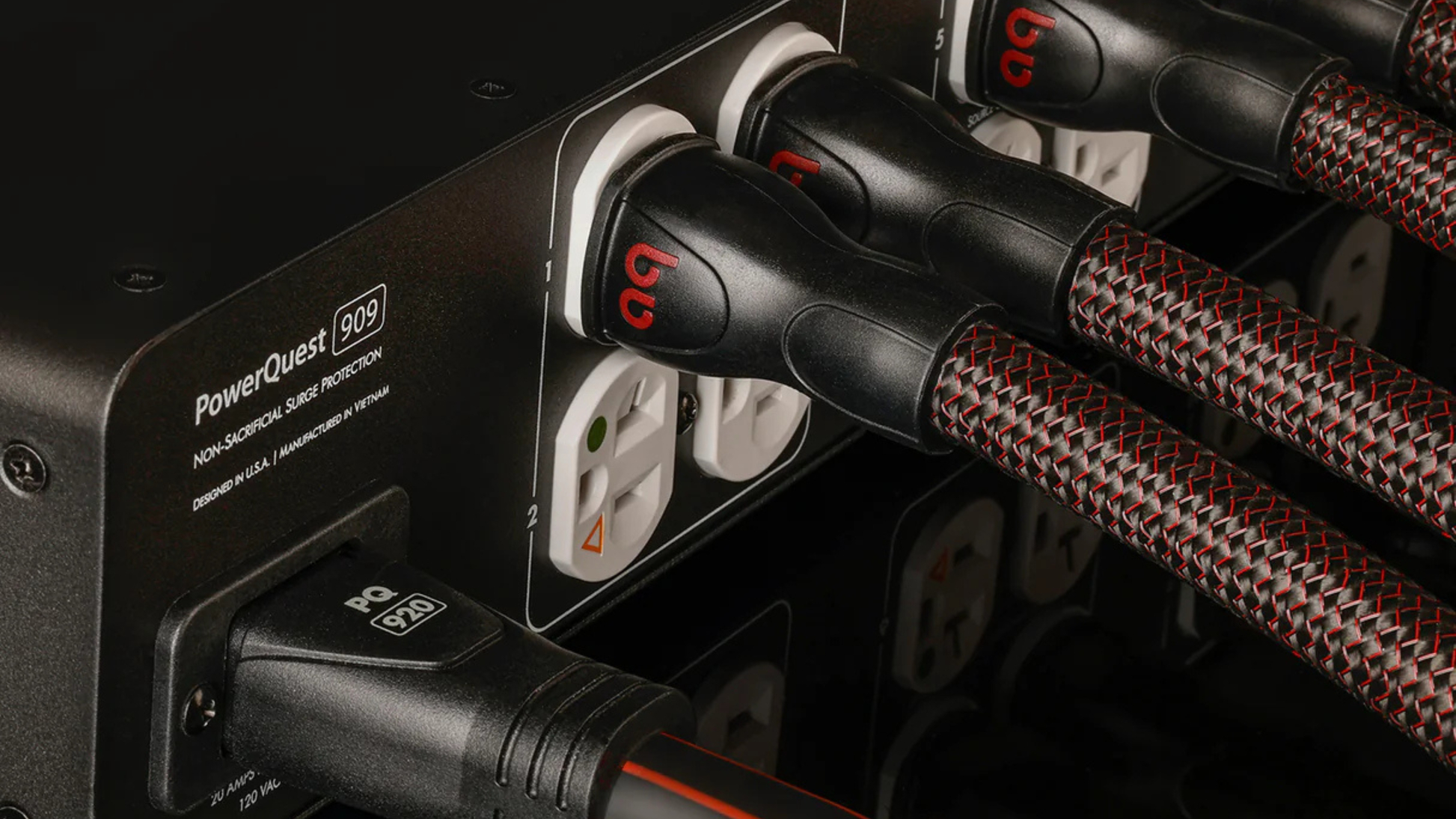

Included PQ-920 Power Cable — Monsoon-Level With PSC+ and ZERO-Tech

The PowerQuest 909 ships with a 2-meter PQ-920 power cable — a Monsoon-level AudioQuest power cable built with Perfect-Surface Copper+ (PSC+) conductors, ZERO-Tech for uncompressed current transient delivery, and RF/ND-Tech for ground-noise dissipation. The cable uses a 20A C19 IEC connector at the equipment end to match the PQ-909's 20A inlet, and a flat-to-wall 45°/90° adjustable male plug at the wall end to ease installation in tight spaces behind equipment racks. Most power conditioners at this price include a basic OEM power cable — the PQ-909's inclusion of a genuine Monsoon-level cable is a meaningful addition to the value proposition.

A 2-RU rack-mounting kit is also included for installation in dedicated audio or home theater equipment racks.

Key Specifications

Type: AC power conditioner with non-sacrificial surge protection and ultra-linear filtering Maximum Current Capacity: 20 amps RMS Transient Power Correction (TPC): 45 amps peak, up to 25ms; low-impedance current reservoir for amplifiers Filtration: Wide-bandwidth differential and common-mode ultra-linear filtering; widest bandwidth in PowerQuest family Total Outlets: 12 hospital-grade High/Variable-Current Outlets: 4 — for power amplifiers and subwoofers; unrestrained current delivery Linear-Filtered/Constant-Current Outlets: 8 — for source components and displays; ultra-linear filtered Non-Sacrificial Surge Protection: Withstands repeated 6000V/3000A surges; unlimited joule rating; no degradation or replacement required Extreme Voltage Shutdown: Activates at 140VAC; main relay opens in less than 0.25 seconds; resets automatically when voltage stabilizes Inlet: 20A C19 IEC Included Power Cable: AudioQuest PQ-920 — 2m, 20A C19, Monsoon-level; Perfect-Surface Copper+ (PSC+) conductors; ZERO-Tech; RF/ND-Tech; flat-to-wall 45°/90° male plug Rack Mounting: 2-RU rack-mounting kit included Weight: Approximately 7.7 kg (16.9 lbs) North America only

Why Buy From All Elite Audio

All Elite Audio is an authorized AudioQuest dealer located in Timonium, Maryland. We carry the full AudioQuest PowerQuest lineup alongside AudioQuest cables, interconnects, and accessories. Our team can advise on proper outlet allocation for your specific system — which components belong on the high-current outlets and which belong on the filtered source outlets — and can demonstrate the difference power conditioning makes in a real listening environment.

We offer in-store demos, expert guidance before and after purchase, and nationwide shipping.

Call: 443-402-5055 Text: 443-402-5064 Visit: 1921 York Rd, Timonium, MD 21093

Frequently Asked Questions — AudioQuest PowerQuest 909

What is the AudioQuest PowerQuest 909 and what does it do? The PowerQuest 909 is a 20-amp AC power conditioner with wide-bandwidth ultra-linear filtering, 45-amp peak Transient Power Correction, non-sacrificial surge protection rated to 6000V/3000A, and Extreme Voltage Shutdown. It distributes clean, stable, protected AC power to 12 hospital-grade outlets across two outlet types — four high-current outlets for power amplifiers and powered subwoofers, and eight linear-filtered outlets for source components, DACs, streamers, and displays — and ships with the AudioQuest PQ-920 Monsoon-level power cable and a 2-RU rack-mounting kit.

What is Transient Power Correction and why does it matter for amplifiers? Transient Power Correction is a low-impedance current reservoir built into the PQ-909 that holds 45 amps peak available for up to 25 milliseconds on demand. Power amplifiers require sudden bursts of current during loud transients — kick drums, orchestral peaks, cinematic explosions — that can momentarily exceed what the wall outlet delivers cleanly, causing the amplifier to compress the dynamics of the recording. The TPC circuit provides that current instantly from its reservoir, ensuring the amplifier receives the uncompressed current it needs for full dynamic contrasts, deep bass extension, and precise control at all listening levels.

What is the difference between the high-current and filtered source outlets? The four High/Variable-Current outlets deliver power to amplifiers and high-current devices with minimal filtering impedance, allowing them to draw instantaneous current peaks without restriction. The eight Linear-Filtered/Constant-Current outlets deliver ultra-linear filtered power to source components — DACs, streamers, preamplifiers, displays, disc players — where the priority is removing noise from the power supply rather than providing unrestricted current. Amplifiers connected to filtered source outlets may experience current restriction during transients; source components connected to high-current outlets lose the benefit of the ultra-linear filtering. Using the outlets as intended is important for getting the best performance from the PQ-909.

What does "non-sacrificial" surge protection mean? Standard surge protectors use Metal Oxide Varistors that absorb surge energy by degrading — each large surge reduces their remaining capacity until they stop protecting, often without visible indication. The PQ-909's non-sacrificial design has an unlimited joule rating and withstands repeated surges up to 6000V/3000A without being consumed or degraded. Protection does not diminish over time and the unit never needs replacement due to surge events.

What is Extreme Voltage Shutdown and when does it activate? Extreme Voltage Shutdown monitors incoming AC voltage and opens the main power relay in under 0.25 seconds if voltage exceeds 140VAC — protecting connected equipment from dangerous overvoltage conditions such as utility faults or wiring failures. When voltage returns to normal levels, the relay resets automatically and restores power without manual intervention.

Does the PQ-909 require a 20-amp circuit or a special outlet? The PowerQuest 909 has a 20A C19 IEC inlet and ships with a 20A PQ-920 cable. A standard household 15A wall outlet uses a different connector and will not accept the included cable's C19 plug directly. To use the PQ-909 with a standard 15A outlet you would need a C19-to-standard adapter, though doing so limits the available current to 15 amps and negates the 20-amp design intent. For best results — particularly for power amplifier use with the TPC circuit — a dedicated 20-amp circuit with a 20A NEMA 5-20 outlet is recommended. Our team at All Elite Audio can advise on installation considerations for your specific setup.

What power cable is included with the PowerQuest 909? The PQ-909 includes the AudioQuest PQ-920 — a 2-meter Monsoon-level power cable with a 20A C19 IEC connector, built with Perfect-Surface Copper+ (PSC+) conductors, ZERO-Tech for uncompressed current transient delivery, and RF/ND-Tech for ground-noise dissipation. The wall plug is a flat-to-wall design with 45°/90° adjustment to ease installation in tight spaces behind racks. This is a genuine performance-grade included cable, not a basic OEM accessory.

Can the PowerQuest 909 be rack-mounted? Yes. A 2-RU rack-mounting kit is included with the PQ-909 for installation in standard 19-inch audio or home theater equipment racks.

What warranty does the AudioQuest PowerQuest 909 include? The AudioQuest PowerQuest 909 carries AudioQuest's standard manufacturer warranty. All Elite Audio is a fully authorized AudioQuest dealer, ensuring your warranty is valid and supported.

Where can I buy the AudioQuest PowerQuest 909 and get expert advice? All Elite Audio is an authorized AudioQuest dealer with a full home audio showroom at 1921 York Rd, Timonium, Maryland 21093. We carry the full AudioQuest power accessory lineup and can advise on proper system setup and outlet allocation. Call us at 443-402-5055 or text 443-402-5064. We also ship nationwide.
