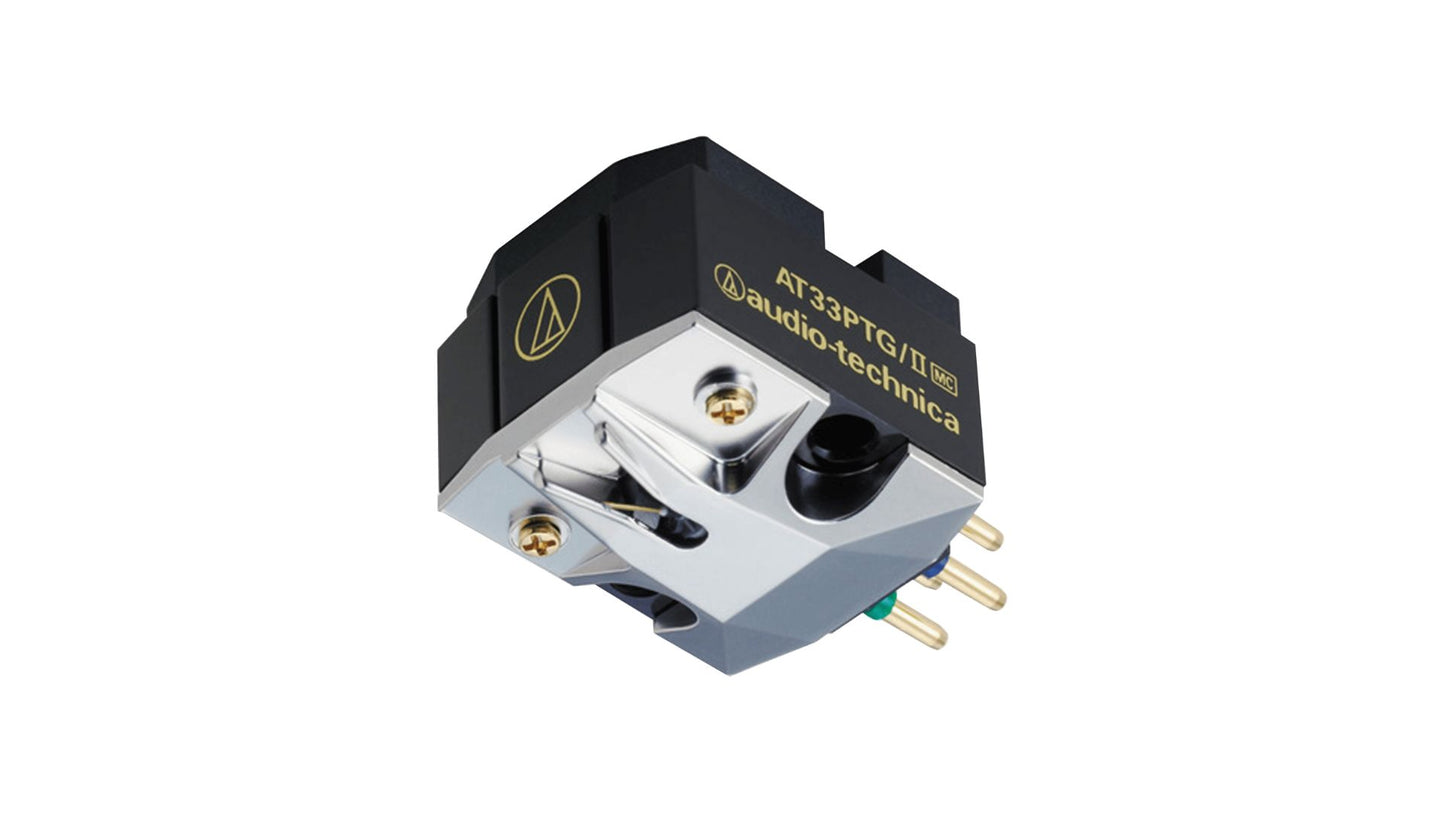

Audio Technica AT33PTG/2 Dual Moving Coil Cartridge

Audio Technica AT33PTG/2 Dual Moving Coil Cartridge

$599.00 USD
$599.00 USD $599.00 USD
SALE Sold Out
Shipping calculated at checkout.

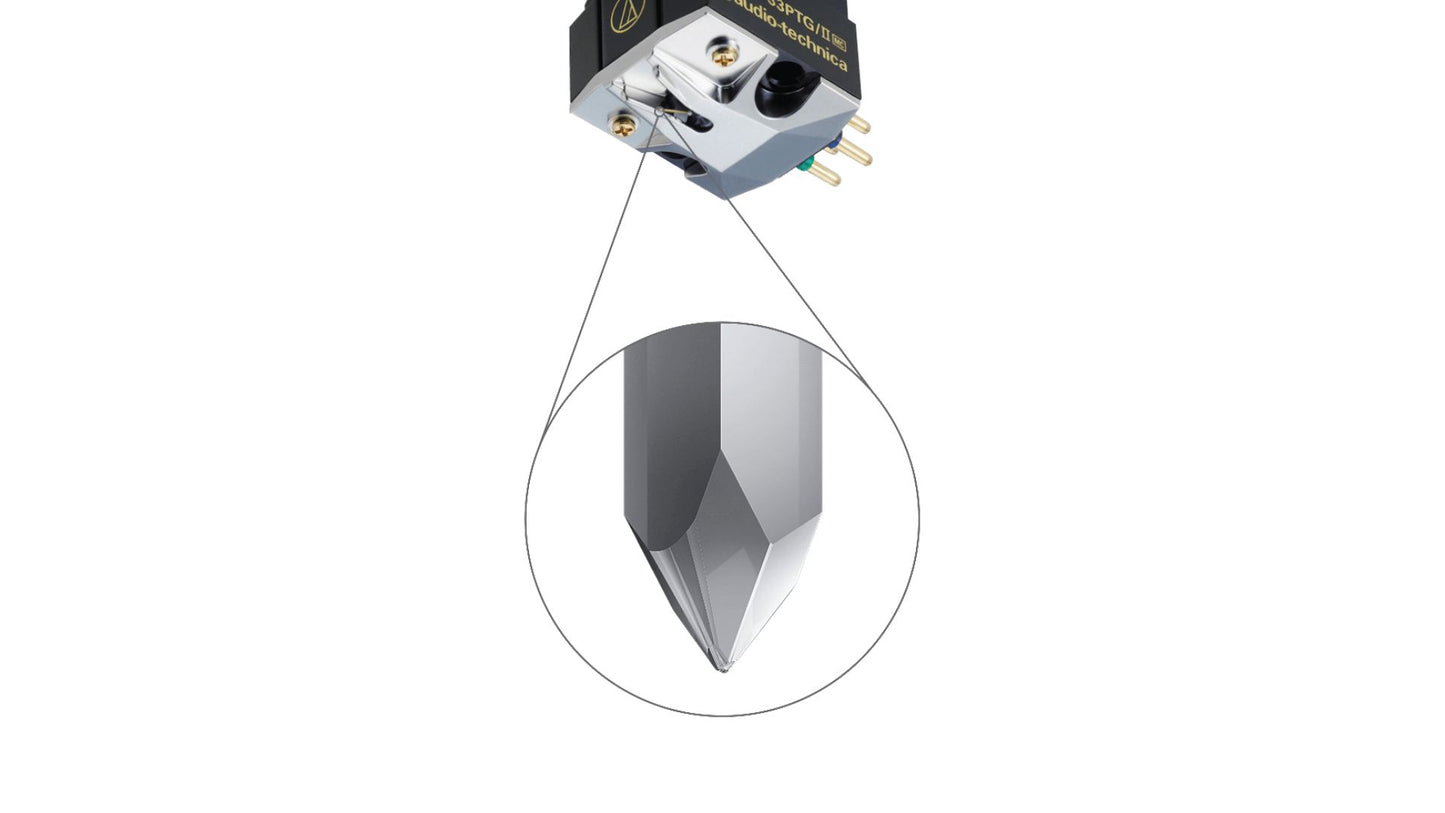

The AT33PTG/II dual moving coil cartridge features a Microlinear stylus that, with its small curvature radius, delivers low-distortion, high-range performance, even when playing the inner circumference of a record. The Microlinear stylus, which has an average life span of around 1,000 hours, is mounted on a nude tapered boron cantilever with a double damper for reduced weight and better audio quality.

The cartridge’s two coils provide excellent channel separation and are affixed within a strong, lightweight mold made of hard resin to greatly reduce unwanted vibration. The cartridge uses a neodymium magnet and a permendur yoke for dramatically enhanced magnetic energy. The PCOCC (Pure Copper by Ohno Continuous Casting) coils ensure pure audio transmission.

Features

    • Moving coil cartridge with Microlinear stylus delivers exquisite, full-range audio reproduction

    • Advanced tapered boron cantilever and reduced coil weight improve the audio quality, particularly in the higher frequencies

    • Neodymium magnet and permendur yoke dramatically enhance the magnetic energy

    • PCOCC (Pure Copper by Ohno Continuous Casting) coil enables pure signal transfer

    • High-separation, wide-response dual moving coil

    • Strong, rigid housing limits unnecessary vibration

    • Precision-cast hard aluminum alloy body enhances rigidity and the signal-to-noise ratio

    Please Note: AT33PTG/2’s stylus assembly is not field-replaceable, but Audio-Technica offers a fee-based Moving Coil Exchange Program to properly service your moving coil cartridge.

        Specifications

        Cartridge & Stylus
        Frequency Response 15-50,000 Hz
        Channel Separation 30 dB (1 kHz)
        Vertical Tracking Angle 23°
        Vertical Tracking Force 1.8-2.2 g (2.0 g standard)
        Recommended Load Impedance More than 100 ohms (when head amplifier is connected)
        Coil Impedance 10 ohms (1 kHz)
        DC Resistance 10 ohms
        Coil Inductance 22 µH (1 kHz)
        Output Voltage 0.3 mV (at 1 kHz, 5 cm/sec)
        Output Channel Balance 0.5 dB (1 kHz)
        Stylus Shape Microlinear
        Cantilever Gold-plated nude tapered boron
        Static Compliance 40 x 10-6 cm/dyne
        Dynamic Compliance 10 x 10-6 cm/dyne (100 Hz)
        Mounting Half-inch
        Dimensions 16.0 mm (0.63") H × 16.6 mm (0.65") W × 26.5 mm (1.04") D
        Accessories Included Non-magnetic screwdriver; 2 washers; 2 nuts; cartridge installation screws (13 mm × 2, 19 mm × 2); plastic protector; brush; PCOCC lead wire set
        Mounting Feature Half-inch mount
        Stylus Curvature Radius 2.2 x 0.12 mil
        Stylus Size Nude square shank
        Weight 6.9 g (0.24 oz)
        Notes Note: Moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
