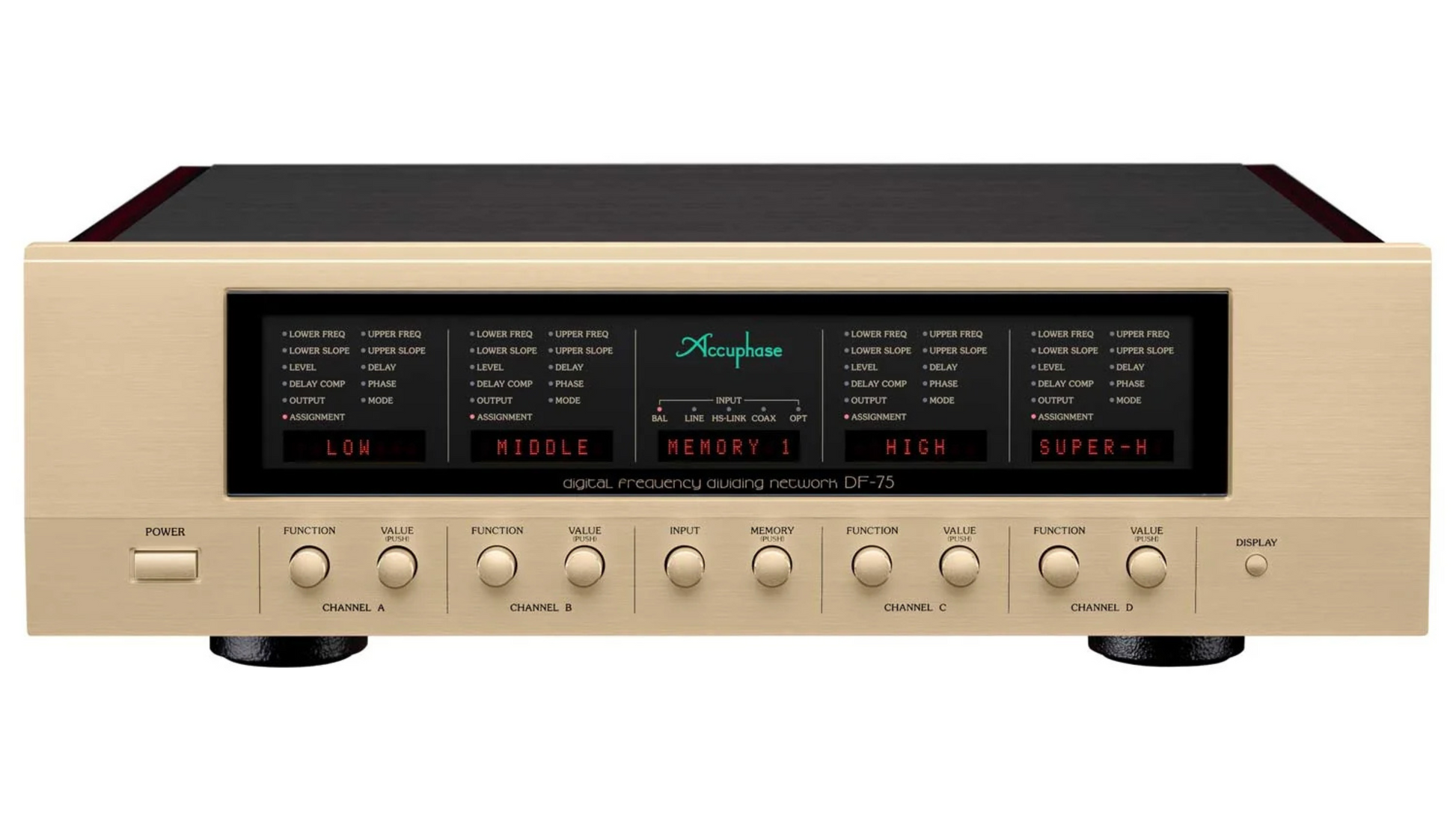

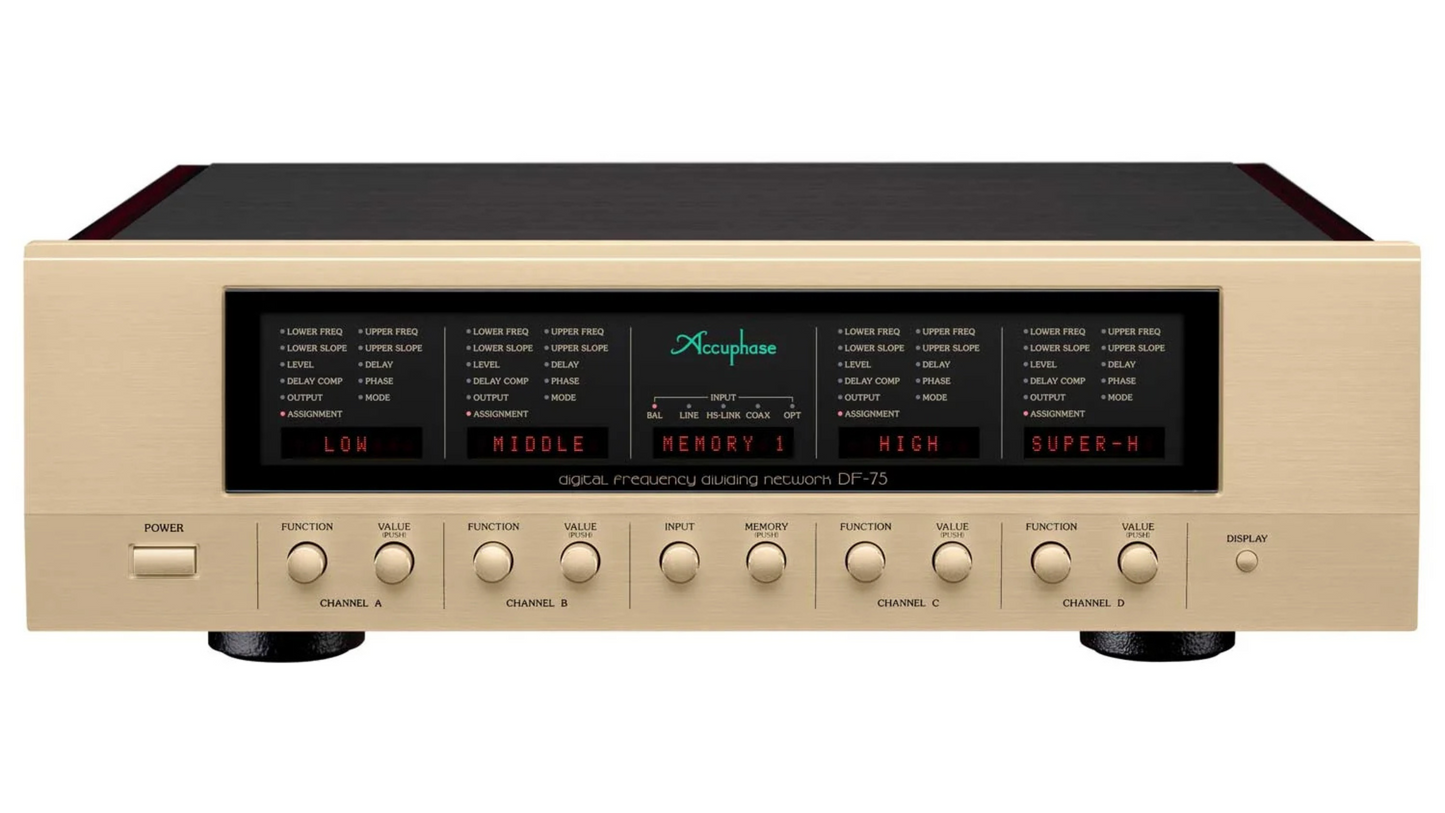

Accuphase DF-75 Digital Frequency Dividing Network
Accuphase DF-75 Digital Frequency Dividing Network
Accuphase DF-75 Digital Frequency Dividing Network
High-end 4-way digital crossover for multi-amplified systems requiring supreme precision, timing control, and flexibility.
The Accuphase DF-75 Digital Frequency Dividing Network is a state-of-the-art active crossover designed for audiophiles who demand ultimate control and transparency in multi-amplified systems. Using advanced 64-bit floating-point DSP technology, the Accuphase DF-75 delivers precision crossover management with ultra-fine adjustments for frequency, slope, level, delay, and phase alignment.
With support for up to four channels in a 4-way configuration, the DF-75 offers an extraordinary 3,101 selectable crossover frequency points, far surpassing conventional designs. Filter slopes are adjustable from gentle 6 dB/octave to an extremely steep 96 dB/octave, allowing seamless integration between amplifiers and speaker drivers.
Time alignment is handled with precision delay control in 0.5 cm increments, plus an intelligent delay compensator that automatically corrects signal timing between channels. This ensures perfect phase coherence and imaging accuracy in complex audio systems.
Equipped with both analog and digital connectivity, including balanced XLR outputs and high-performance ANCC A/D and MDS+ D/A conversion, the Accuphase DF-75 fits perfectly into hybrid or fully digital setups. Its engineering and component quality uphold Accuphase’s reputation for precision, purity, and long-term reliability.
For assistance or product questions, call 443-402-5055 or text 443-402-5064 to reach our team. All Elite Audio is an authorized Maryland dealer with a full home audio showroom.
Key Specifications
• System Type: Digital Frequency Dividing Network (Active Crossover)
• Configuration: 4-way, 4-channel support
• Cutoff Frequencies: 3,101 selectable crossover points
• Filter Slopes: 6, 12, 18, 24, 48, or 96 dB/octave
• Time Alignment: Adjustable in 0.5 cm steps with automatic delay compensation
• Frequency Response: 2 Hz – 120 kHz (+0 / -3 dB)
• THD + Noise: 0.0007% (20 Hz–20 kHz)

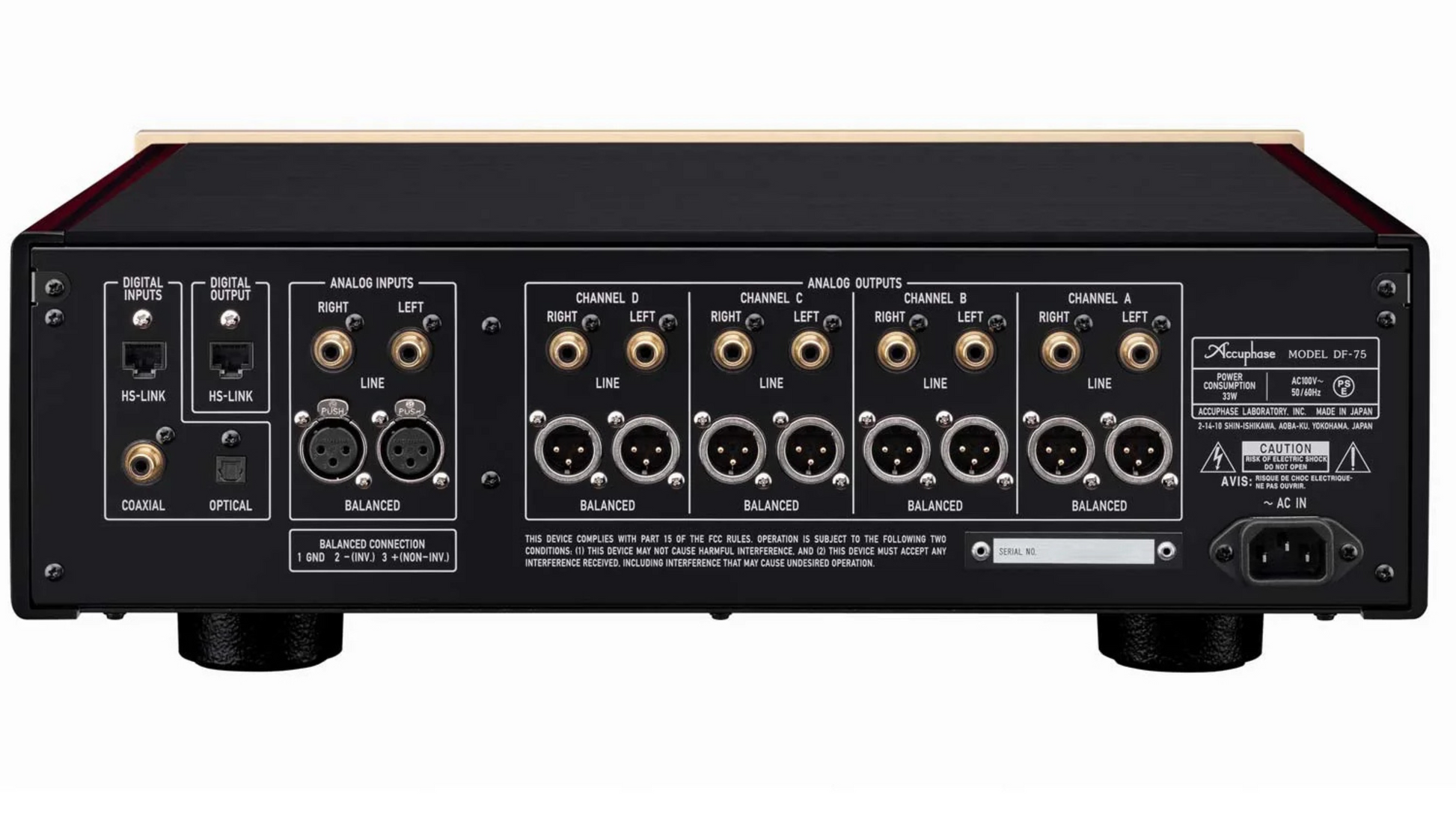

• Analog Outputs: Balanced XLR / Unbalanced line
• Digital Conversion: ANCC A/D and MDS+ D/A circuits
• Dimensions (W×H×D): 465 × 151 × 396 mm
• Weight: 15.1 kg
• Power: 36 W
• In Stock
Top 20 Questions About the Accuphase DF-75 Digital Frequency Dividing Network
What is the Accuphase DF-75?
The Accuphase DF-75 is a high-precision digital active crossover designed for use in multi-amplified audio systems requiring fine control and accuracy.
How many channels does the Accuphase DF-75 support?
The Accuphase DF-75 supports up to 4 channels for full 4-way system configurations.
What makes the DF-75 different from analog crossovers?
It operates entirely in the digital domain using a 64-bit DSP, providing more precise crossover points, slopes, and delay correction than analog circuits.
How many crossover points can be selected?
The DF-75 allows an impressive 3,101 selectable crossover frequency points, offering unmatched tuning flexibility.
What filter slopes are available on the DF-75?
The Accuphase DF-75 offers slopes of 6, 12, 18, 24, 48, or 96 dB per octave.
Does the DF-75 include delay compensation?
Yes, it includes automatic delay compensation to correct time alignment between drivers.
What kind of inputs and outputs does it have?
The DF-75 includes balanced XLR and unbalanced analog outputs, as well as digital input/output options for integration with digital audio systems.
What is the THD + Noise level of the DF-75?
The total harmonic distortion plus noise is a very low 0.0007% from 20 Hz to 20 kHz.
Can the DF-75 be used with home audio or professional systems?
It’s ideal for high-end home audio systems with active crossovers, but also suitable for professional installations.
What is the warranty on the Accuphase DF-75?
The Accuphase DF-75 comes with a manufacturer’s limited warranty through authorized dealers such as All Elite Audio.
Does the DF-75 improve sound imaging?
Yes. Its precision time alignment and phase correction dramatically improve imaging and soundstage accuracy.
What frequency range does the DF-75 handle?
The frequency response extends from approximately 2 Hz to 120 kHz, maintaining linearity across the audible range.
How does the DF-75 handle phase alignment?
The unit’s digital filters and delay compensation align the phase between multiple drivers for coherent sound.
Is the DF-75 compatible with both analog and digital systems?
Yes, it can interface with either via its balanced, unbalanced, and digital I/O.
What kind of digital processing power does it use?
The DF-75 uses a 64-bit floating-point DSP for ultra-precise crossover and signal management.
What is the ideal application for the DF-75?
It’s perfect for high-end multi-amp systems where drivers and amplifiers need individually tuned crossover and delay settings.
Does the DF-75 convert analog signals to digital?
Yes. The built-in ANCC A/D and MDS+ D/A stages ensure exceptional transparency for both analog and digital paths.
Where is the DF-75 manufactured?
The Accuphase DF-75 is built in Japan with meticulous craftsmanship.
What is the output configuration on the DF-75?
It provides four discrete output channels that can be used to feed separate amplifiers in an active setup.
