Cambridge Audio Edge NQ Preamplifier Network Player

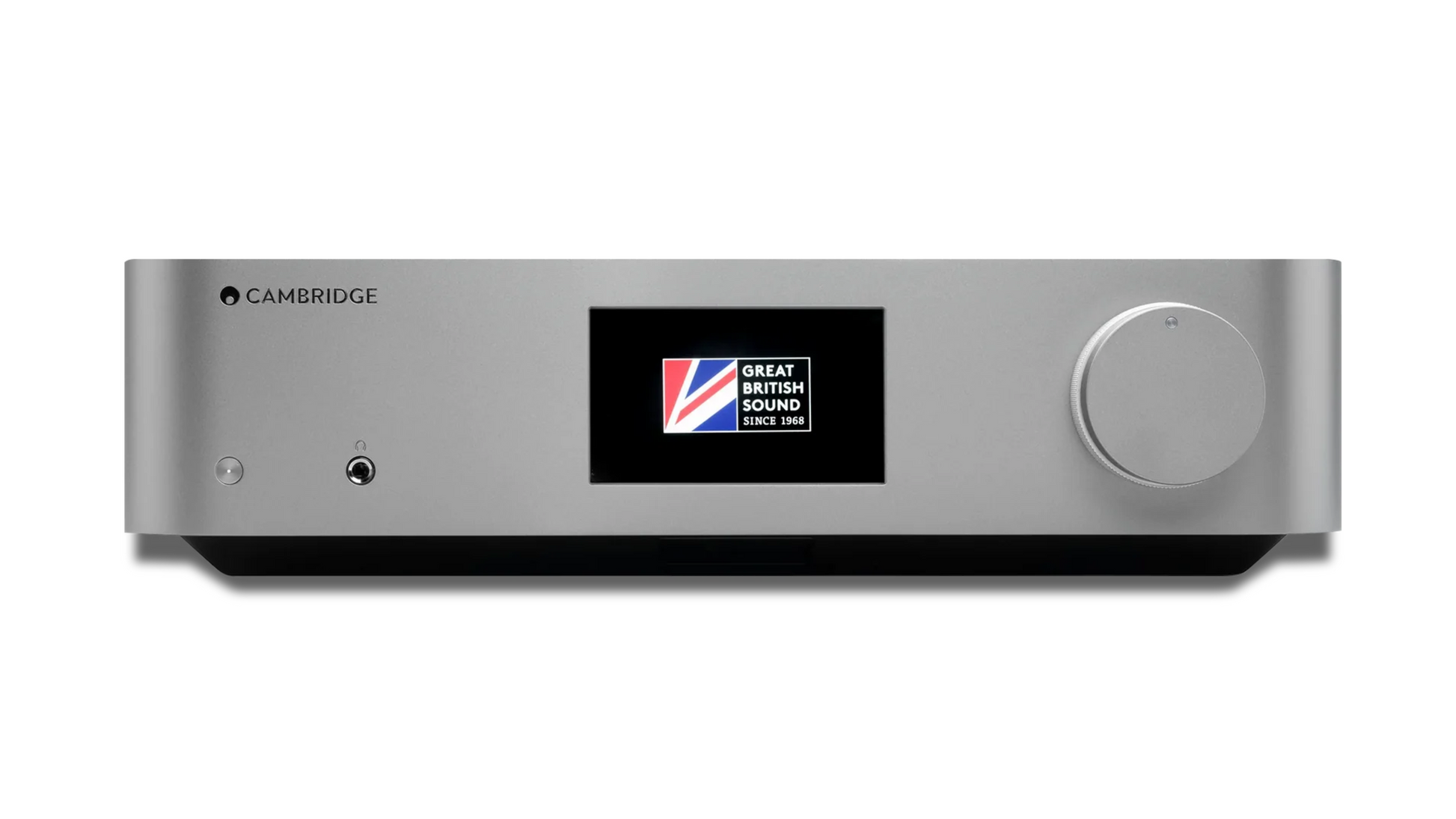

Cambridge Audio Edge NQ – High-End Preamplifier and Network Streamer

The Cambridge Audio Edge NQ is a reference-class preamplifier and network player that combines elegant industrial design, impeccable audio engineering, and cutting-edge digital streaming technology. Designed for audiophiles seeking uncompromising sound and modern connectivity, the Edge NQ delivers breathtaking clarity and precision whether you're streaming high-resolution audio, spinning CDs, or integrating with a complete hi-fi system.

 Pure Audio Performance

 Class A Preamp Design with Solid-State Precision
Utilizes a fully balanced signal path and Class A topology to eliminate crossover distortion and preserve sonic detail, ensuring the cleanest, most natural sound reproduction.

Precision Volume Control
Employs an analog volume control using a relay-based resistor ladder for ultra-precise attenuation with minimal signal degradation, enhancing low-volume resolution and stereo imaging.

 ES9038K2M SABRE DAC
A flagship 32-bit DAC offering ultra-low jitter and superior dynamic range, capable of decoding high-resolution PCM up to 32-bit/384kHz and native DSD256, delivering breathtaking detail and clarity.

 Advanced Streaming & Connectivity

 StreamMagic Platform
Cambridge Audio’s proprietary streaming architecture enables ultra-stable, high-resolution playback from networked sources, AirPlay 2, Chromecast built-in, Internet Radio, Spotify Connect, TIDAL, Qobuz, and more.

 Bluetooth aptX HD
Supports high-resolution wireless audio streaming with minimal latency and improved fidelity over Bluetooth.

 UPnP and Roon Ready Support
Enjoy seamless playback of locally stored music or integrate easily into a multi-device high-resolution Roon ecosystem.

 Inputs & Outputs Overview

 Analog Inputs:

1x XLR (balanced)

2x RCA (unbalanced line-level)

 Digital Inputs:

1x TOSLINK Optical

1x Coaxial S/PDIF

1x USB Audio (Type B, up to 32-bit/384kHz and DSD256)

1x USB (Type A for flash drives and updates)

1x HDMI ARC (for connecting TVs with volume sync)

 Streaming & Network:

1x Ethernet (RJ45)

Dual-band Wi-Fi

Bluetooth 4.1 (aptX HD)

AirPlay 2 and Chromecast built-in

Spotify Connect, TIDAL, Qobuz, Roon Ready

 Outputs:

1x XLR (balanced pre-out)

1x RCA (unbalanced pre-out)

1x 3.5mm headphone output (front panel)

1x USB (5V charging only)

1x Trigger out

 Build & Design

 Floating Top Panel and Sculpted Chassis
Machined aluminum exterior with curved side panels and a seamless, floating top plate enhance structural integrity while minimizing unwanted vibration.

 Dual Toroidal Transformers
One transformer for digital and one for analog stages ensures electrical isolation, cleaner power delivery, and reduced crosstalk.

 Large Volume Dial with Tactile Feedback
A hallmark of the Edge design, the oversized knob provides intuitive, analog-style control over volume and menu navigation.

 Technical Specifications

- DAC: ESS Sabre ES9038K2M
- Supported Formats: WAV, FLAC, AIFF, ALAC, MP3, AAC, WMA, OGG, DSD64/128/256
- Max Sample Rate: 32-bit/384kHz PCM, DSD256
- Frequency Response: 20Hz – 20kHz (+/-0.1dB)
- THD: < 0.0008%
- Signal-to-Noise Ratio: > 103 dB (unweighted)
- Headphone Amp Output Impedance: < 1Ω
- Dimensions: 460 x 120 x 405mm (W x H x D)
- Weight: 10.2kg / 22.5 lbs
