AT-VMx760SL - Special Line MM Phono Catridge

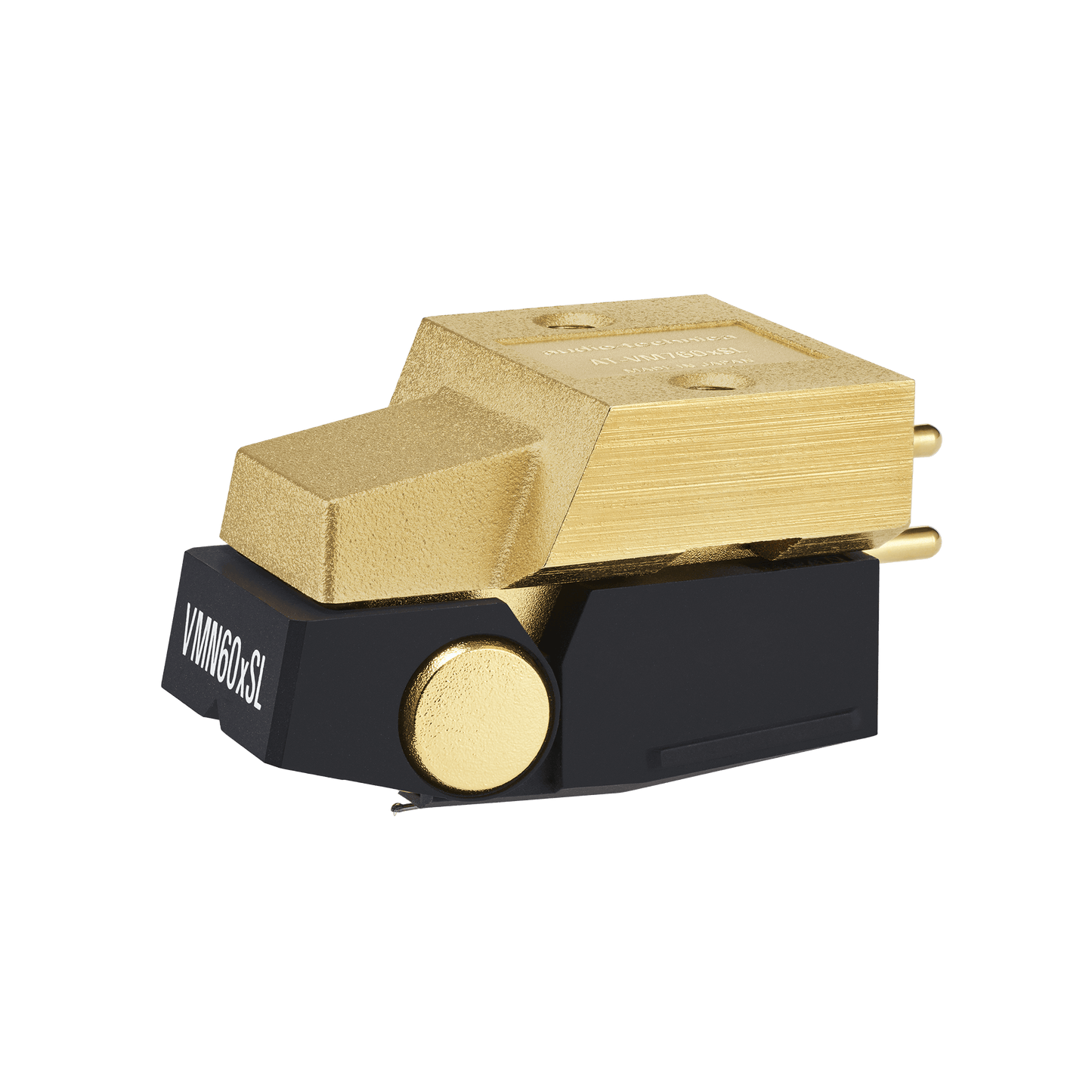

Audio-Technica AT-VM760xSL – Flagship Dual Moving Magnet Cartridge with Solid Boron Cantilever and Special Line Contact Stylus

The AT-VM760xSL represents the peak of Audio-Technica’s VMx series, delivering ultra-high fidelity sound, exceptional stereo imaging, and lifelike dynamic response. Featuring a nude special line contact stylus, solid boron cantilever, and PCUHD coil construction, this cartridge offers unmatched resolution and tracking accuracy—designed for serious audiophiles who demand top-tier performance from their vinyl setup.

🔹 Elite Stylus & Cantilever Design for Ultimate Detail Retrieval

• Special Line Contact Stylus (1.5 × 0.28 mil) – Offers superior groove contact and frequency response, reproducing delicate details and spatial cues with stunning clarity and accuracy.

• Solid Boron Cantilever (0.28 mm) – Ultra-rigid and lightweight, boron ensures fast, precise transmission of groove vibrations, making it ideal for revealing dynamic musical expressions.

• Tracking Force Range: 1.8 – 2.2 g (2.0 g recommended)

🔹 Premium Dual Magnet Generator with High-Efficiency Coil Design

• Vertical Dual Magnet Configuration – Mimics the geometry of the record cutting head, providing outstanding channel separation, stereo accuracy, and tracking precision.

• Paratoroidal PCUHD Coils – Pure Copper Ultra High Drawability coils arranged for optimal magnetic efficiency, delivering dynamic responsiveness and refined tonal balance.

• Center Shield Plate – Reduces crosstalk between channels, preserving pinpoint stereo focus and wide soundstage depth.

🔹 Engineered for Stability, Low Resonance & Easy Mounting

• Die-Cast Aluminum Body – Enhances mechanical stability and suppresses vibrations for clean, resonance-free output.

• Threaded Mounting Holes – Compatible with any 1/2" tonearm or headshell, with tool-free installation using just two screws.

• V-Cut Stylus Guard – Stylus protector includes a visual guide to help accurately cue the needle.

🔹 Interchangeable Stylus & Broad Compatibility

• Swappable Stylus Design – Compatible with most AT-VMx series styli (excluding mono models), giving you flexibility to experiment with sonic profiles or stylus upgrades.

• Fits All Standard 1/2" Mount Turntables – Universally compatible with tonearms and headshells that support half-inch cartridge mounting.

🔹 Technical Specifications

• Type: Dual Moving Magnet (VMx)

• Frequency Response: 20 – 30,000 Hz

• Output Voltage: 3.7 mV (1 kHz, 5 cm/sec.)

• Channel Separation: 26 dB (1 kHz)

• Output Balance: 1.0 dB (1 kHz)

• Coil Impedance: 3.2 kΩ (1 kHz)

• DC Resistance: 750 Ω

• Load Impedance: 47 kΩ

• Load Capacitance: 150 – 250 pF

• Cantilever: 0.28 mm solid boron

• Static Compliance: 17.5 × 10⁻⁶ cm/dyne

• Dynamic Compliance: 7 × 10⁻⁶ cm/dyne (100 Hz)

• Vertical Tracking Angle: 20°

• Dimensions (H x W x D): 29.0 mm × 18.3 mm × 17.5 mm

• Weight: 8.8 g

• Replacement Stylus: AT-VMN60xSL

The AT-VM760xSL is the flagship of the VMx series, merging cutting-edge material science with Audio-Technica’s precision engineering. It delivers a reference-grade analog experience, combining powerful resolution, minimal distortion, and pinpoint imaging—all in one remarkably engineered cartridge.
