Accuphase DP-570 MDS SA-CD Player
Accuphase DP-570 MDS SA-CD Player
Accuphase DP-570 MDS SA-CD Player
Reference-class SA-CD/CD player with ultra-low noise, advanced MDS+ digital conversion, and precision engineering for audiophile performance.

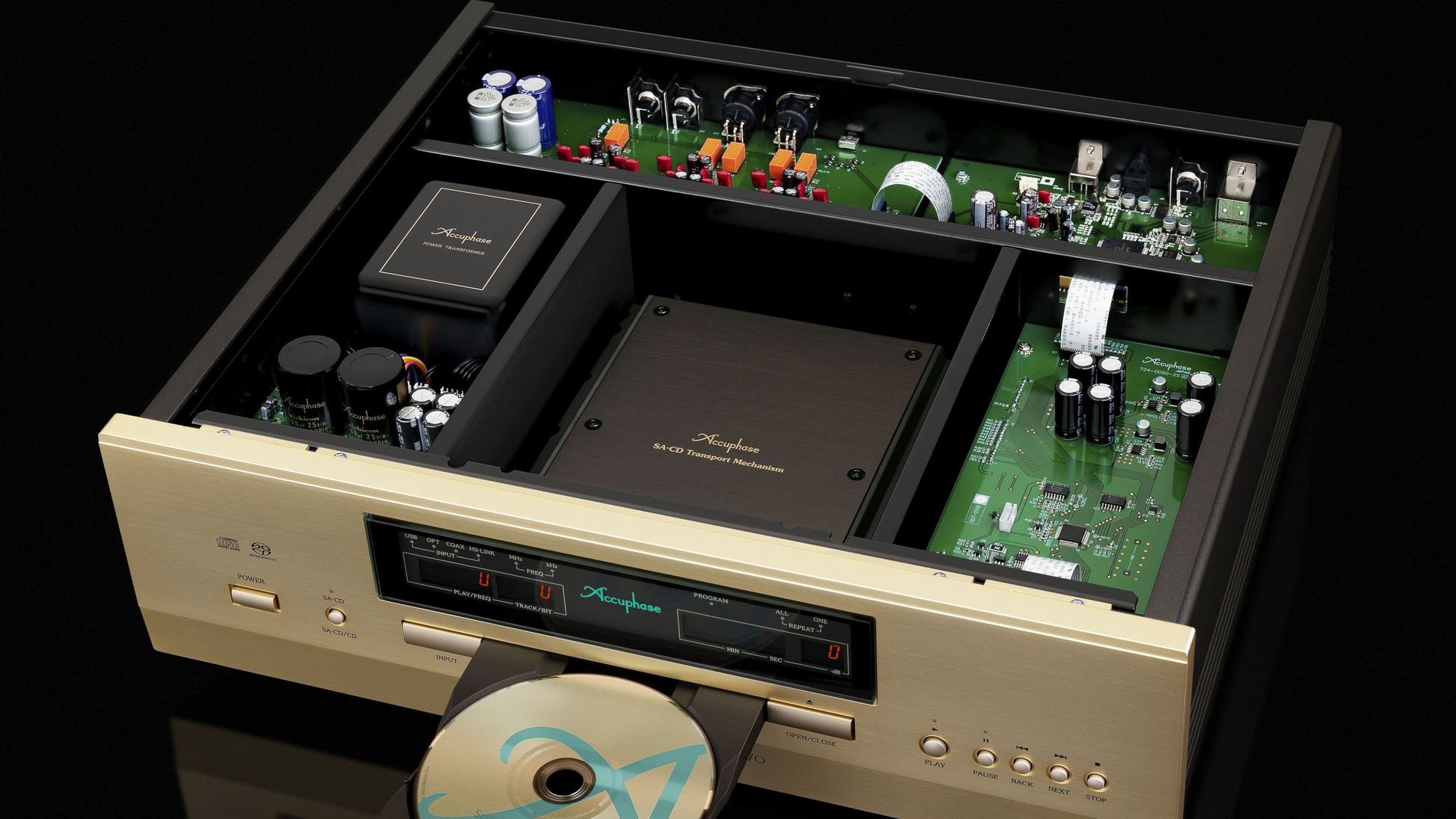

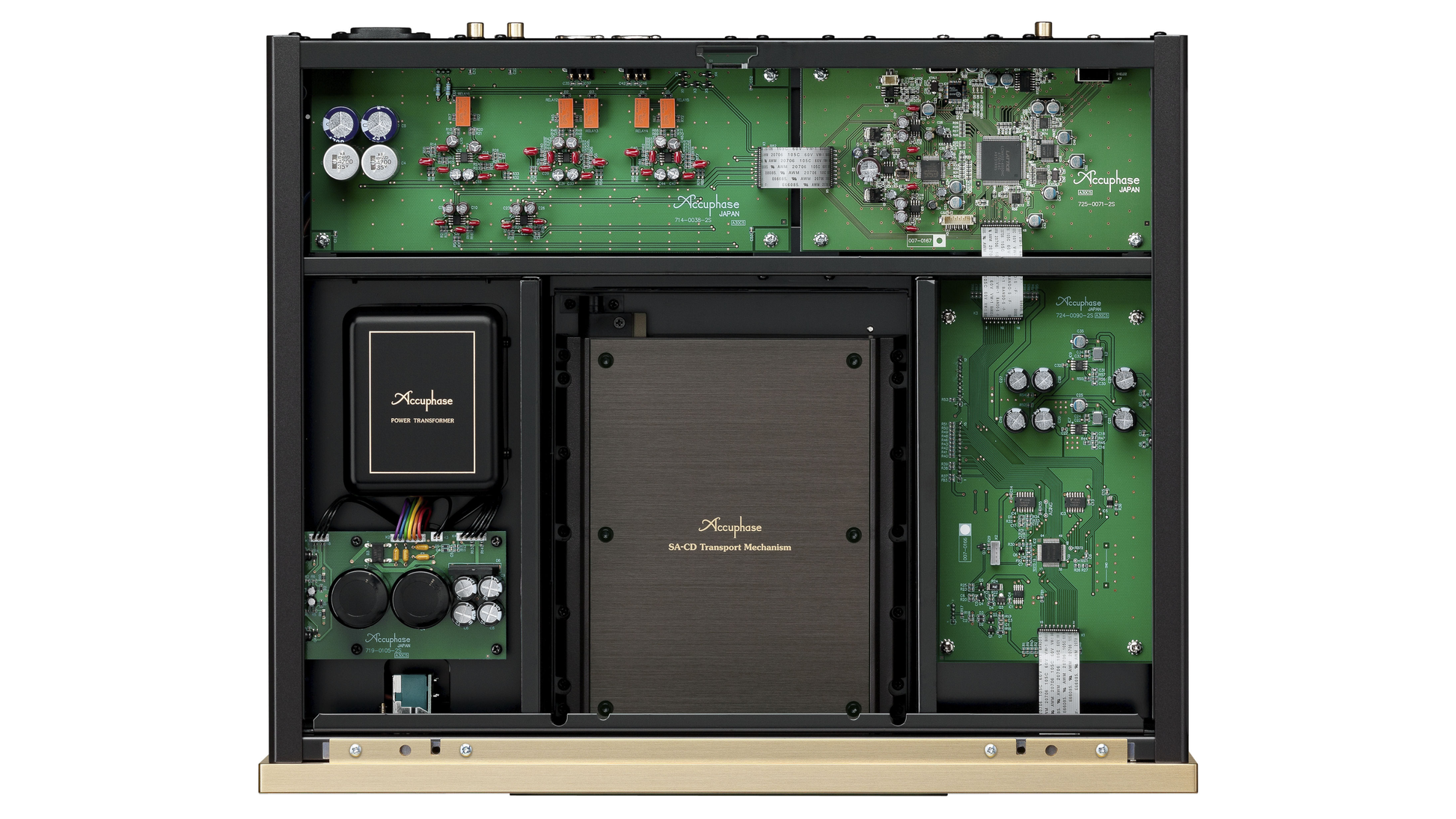

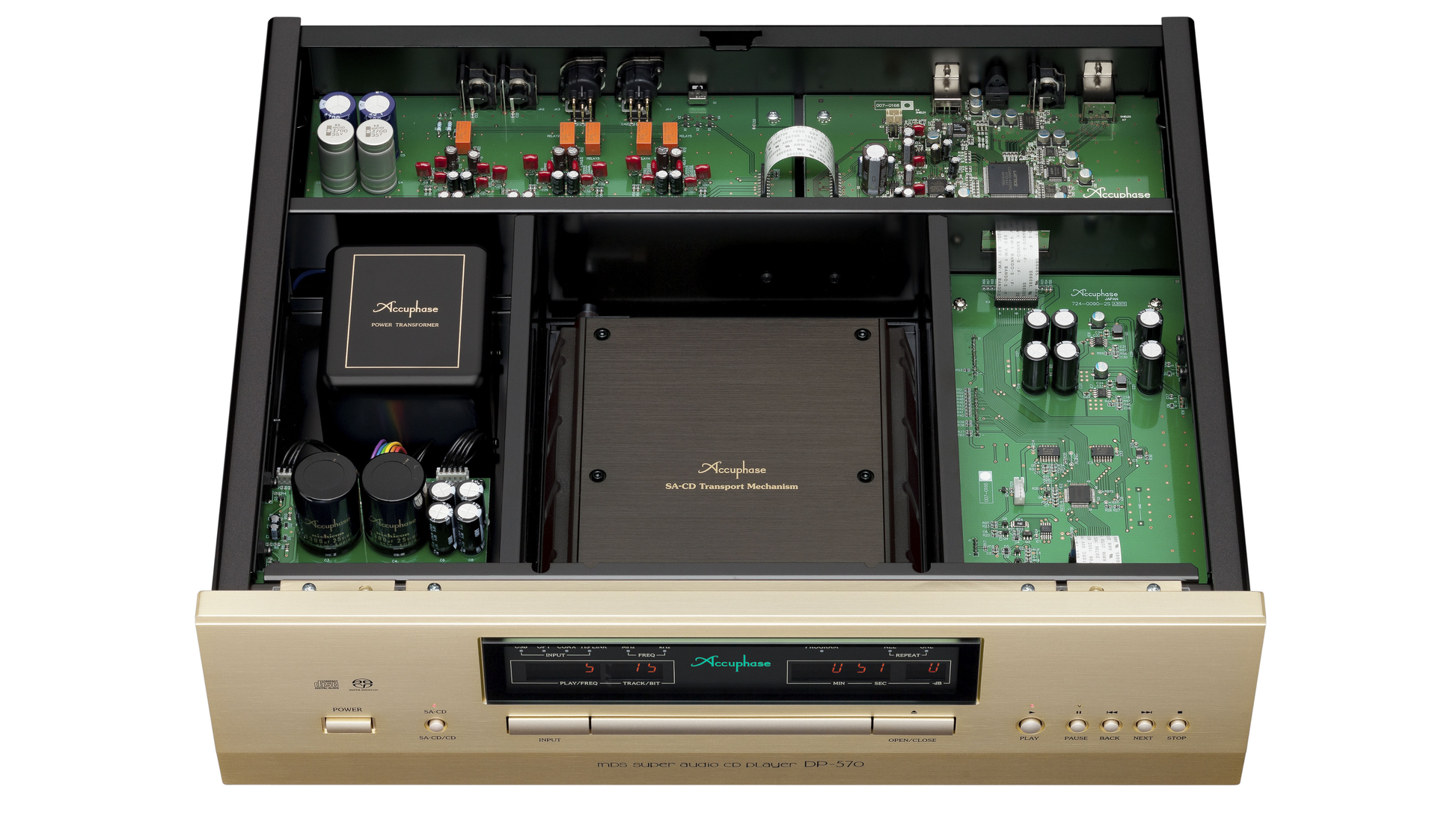

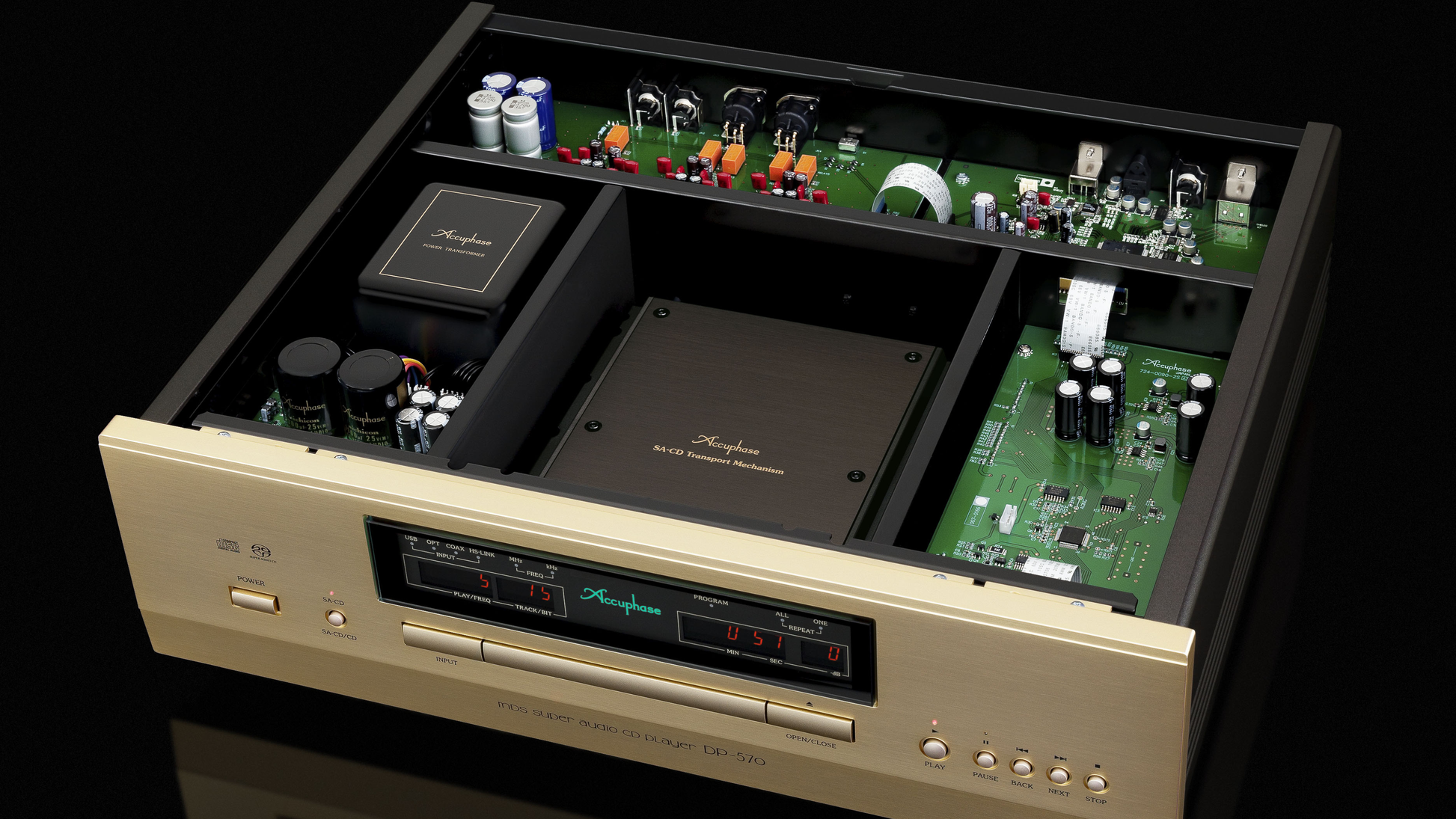

The Accuphase DP-570 MDS SA-CD Player represents the next generation of high-end disc playback from one of Japan’s most respected audio manufacturers. Designed for discerning listeners, the Accuphase DP-570 delivers unmatched fidelity and tonal balance when playing both SA-CDs and standard CDs. Its robust transport mechanism is precision-mounted in a vibration-damped chassis to ensure silent operation and impeccable data retrieval.
At the heart of the Accuphase DP-570 is the MDS+ (Multiple Delta Sigma) digital-to-analog converter, using four parallel DAC circuits per channel to dramatically lower distortion and noise. This technology provides smooth, natural sound with exceptional musical transparency. The player also includes Direct Balanced Filter circuitry, giving true differential balanced and unbalanced signal paths for uncompromised performance.
Beyond disc playback, the Accuphase DP-570 functions as a fully featured standalone DAC. With USB, optical, coaxial, and HS-LINK inputs, it supports PCM up to 384 kHz and DSD up to 11.2 MHz. This versatility allows seamless connection to high-resolution streamers, servers, or computers. Every detail—from the smooth drawer action to the elegant aluminum construction—reflects Accuphase’s commitment to precision and beauty in audio design.
For assistance or product questions, call 443-402-5055 or text 443-402-5064 to reach our team. All Elite Audio is an authorized Maryland dealer with a full home audio showroom.
Key Specifications
Disc Compatibility: SA-CD, CD, CD-R/RW, Data Discs (WAV, FLAC, DSF, DSDIFF)
DAC System: MDS+ with 4 parallel circuits per channel
Frequency Response: 0.5 Hz – 50,000 Hz (+0 / -3 dB)
THD + Noise: 0.0006% (20 Hz–20 kHz)
Signal-to-Noise Ratio: 120 dB (SA-CD)
Dynamic Range: 117 dB

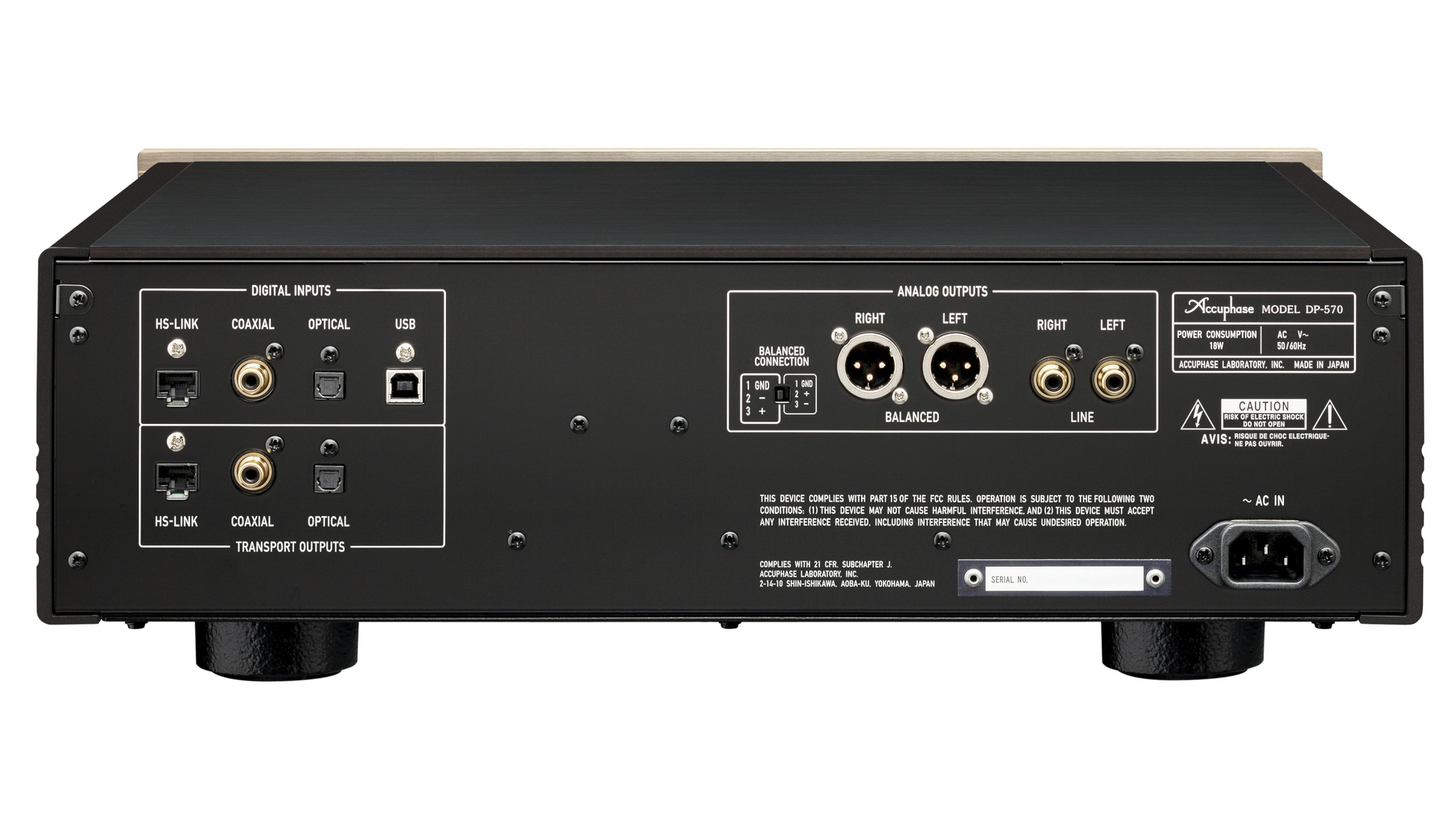

Analog Outputs: Balanced (XLR) and Unbalanced (RCA) 2.5 V
Digital Inputs: USB (up to 384 kHz PCM / DSD 11.2 MHz), Coaxial, Optical, HS-LINK
Output Level Control: 0 dB to -80 dB in 1 dB steps
Dimensions (W × H × D): 465 × 151 × 393 mm
Weight: 19 kg
In Stock
Top 20 Questions About the Accuphase DP-570 MDS SA-CD Player
What is the Accuphase DP-570?
The Accuphase DP-570 is a high-end SA-CD/CD player and digital-to-analog converter built for exceptional musical reproduction.
What formats can the Accuphase DP-570 play?
It plays SA-CDs, CDs, CD-R/RW, and high-resolution data discs containing WAV, FLAC, DSF, or DSDIFF files.
What DAC design does the Accuphase DP-570 use?
It uses the MDS+ (Multiple Delta Sigma) converter with four DAC circuits per channel for outstanding linearity and detail.
Can the Accuphase DP-570 function as a DAC?
Yes, it includes USB, coaxial, optical, and HS-LINK digital inputs for external digital sources.
What is the maximum resolution supported via USB?
The USB input supports up to 384 kHz PCM and DSD 11.2 MHz playback.
Does the Accuphase DP-570 have both balanced and unbalanced outputs?
Yes, it provides XLR balanced and RCA unbalanced outputs.
What is the output level from the analog connections?
The output level is 2.5 V for both balanced and unbalanced outputs.
How low is the distortion of the Accuphase DP-570?
It achieves an incredibly low total harmonic distortion of 0.0006%.
What is the signal-to-noise ratio of the Accuphase DP-570?
The signal-to-noise ratio is 120 dB, ensuring quiet and transparent playback.
Does the Accuphase DP-570 allow output level adjustment?
Yes, the digital output level can be adjusted from 0 dB to -80 dB in 1 dB steps.
Can the Accuphase DP-570 act as a transport only?
Yes, it provides digital outputs for use with an external DAC or digital processor.
What makes the DP-570’s transport mechanism special?
It features a precision SA-CD/CD drive mounted on a low-center-of-gravity chassis with vibration control for stability and accuracy.
What is the frequency response of the Accuphase DP-570?
It ranges from 0.5 Hz to 50,000 Hz, offering extended high-frequency detail and bass depth.
What is the dynamic range of the Accuphase DP-570?
The player achieves a dynamic range of 117 dB for lifelike dynamics and quiet backgrounds.
What is the physical size of the DP-570?
The unit measures 465 mm wide, 151 mm high, and 393 mm deep.
How much does the Accuphase DP-570 weigh?
It weighs approximately 19 kilograms.
Does the Accuphase DP-570 offer phase switching?
Yes, the balanced output features a phase selector switch for system matching.
Can the Accuphase DP-570 play files from data discs?
Yes, it can read and play high-resolution files from data discs.
What is the warranty on the Accuphase DP-570?
The Accuphase DP-570 includes a manufacturer’s warranty. Contact All Elite Audio for specific warranty details.
How can I get help or schedule a demo for the Accuphase DP-570?
For assistance or product questions, call 443-402-5055 or text 443-402-5064 to reach our team at All Elite Audio, your authorized Maryland dealer with a full home audio showroom.
