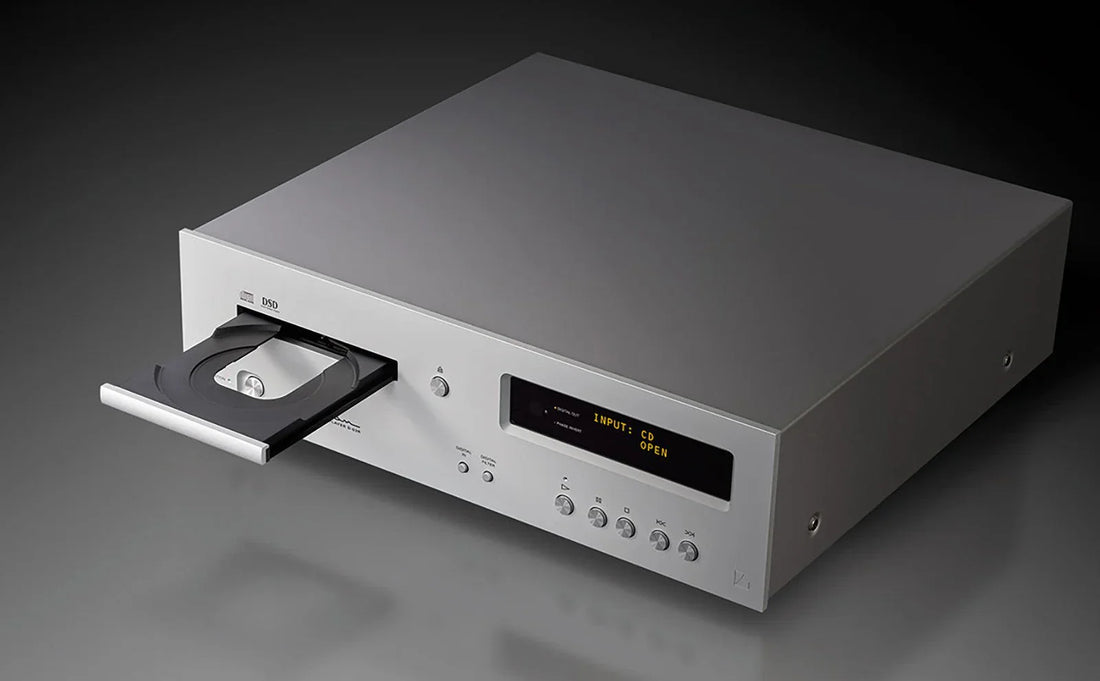

Luxman D-03R vs. D-03X: A Digital Masterpiece Refined
For years, the Luxman D-03X has been one of the most admired players in its category—a combination CD player and digital hub that brought Luxman’s rich, analog-like sound into the digital era. Its dual Texas Instruments PCM1795 DACs, robust chassis, and beautifully musical presentation made it a favorite for listeners who wanted a luxurious but approachable entry into Luxman’s digital lineup.
Now, Luxman introduces the D-03R, a new generation that takes everything the D-03X did so well and elevates it with carefully engineered refinements. This isn’t a replacement that makes its predecessor irrelevant—the D-03X remains an outstanding machine—but rather a statement of how far Luxman can push digital playback when given the opportunity to evolve.
A Leap Forward in Digital Architecture
At the heart of the D-03R lies a significant upgrade: dual ROHM BD34352EKV DACs paired with a newly developed ultra-low phase noise clock. This modern architecture allows selectable PCM and DSD filters, MQA bypass, and dramatically reduced jitter. Compared to the D-03X’s PCM1795 chips, the improvement isn’t just technical—it’s audible.
The result is a more precise soundstage, with instruments and vocals locked in place, a cleaner treble response that avoids digital glare, and an organic, flowing presentation that feels closer to live music. For those who enjoy experimenting, the filter options add flexibility, tailoring the sound to match both recording and system.
Built Like a Vault
Luxman has long understood that digital playback isn’t just about ones and zeros—it’s also about mechanical stability. The D-03X featured a solid aluminum mechanism base, but the D-03R advances this with a 3.2mm thick steel mounting base and a rigid box frame construction. This robust foundation minimizes vibration and enhances disc reading accuracy, allowing the music to emerge with greater clarity and ease.
Holding the D-03R in person, the difference is tangible. At 13.2 kg, it weighs nearly a kilo and a half more than the D-03X, and much of that comes from the reinforced chassis and beefed-up power supply.
Power and Stability Redefined
One of the less visible but most important changes is in the power supply. Luxman has doubled the capacitor reservoir for the DAC section to 6,600µF × 2, ensuring ultra-stable current delivery and headroom. This seemingly subtle adjustment translates directly into the listening experience: bass lines hit with more authority, orchestral crescendos have greater impact, and quiet passages are presented against a darker, more silent background.
It’s the kind of change that reveals itself not in the first few seconds of listening, but over time, as the player consistently delivers music with unwavering composure.
Balanced for the Future
While the D-03X offered a refined analog stage, the new D-03R goes further with a fully balanced output amplifier circuit. This design lowers output impedance, improves drive capability, and provides perfect symmetry across the signal path. For systems that take advantage of balanced connections, this means lower noise and a cleaner, more powerful presentation. Even in single-ended setups, the improvements to the analog stage contribute to a sense of effortlessness and refinement.
A More Engaging Interface
Luxman hasn’t overlooked the human side of ownership. Where the D-03X provided a traditional Luxman display, the D-03R introduces a high-resolution OLED screen with zoom, multiple dimming levels, and MQA status indicators. It’s elegant, easy to read, and provides useful feedback about playback format and status. This small detail makes living with the player every day that much more satisfying.
Connectivity and Software That Keep Pace
Both the D-03X and D-03R offer versatile connectivity, including USB, optical, coaxial, RCA, and XLR inputs and outputs. The difference lies in execution: the D-03R uses gold-plated RCA jacks with ideal 18mm spacing and professional-grade Neutrik XLR connectors for maximum reliability.
On the software side, the D-03R debuts with an updated Luxman Audio Player that incorporates Bulk Pet USB transfer technology. This reduces CPU load on connected computers and results in smoother, more natural USB playback. It’s a subtle but valuable refinement for those who integrate computer-based sources into their systems.
Numbers That Tell the Story
The measured improvements of the D-03R are clear:
-
Signal-to-noise ratio rises from 107–110 dB in the D-03X to 110–118 dB.
-
Total harmonic distortion drops from 0.003% to as low as 0.001% depending on input.
-
Weight increases from 11.9 kg to 13.2 kg, reflecting the more robust construction and larger power reserves.
On paper, these changes may seem incremental. In practice, they translate to a presentation that is more transparent, more dynamic, and more emotionally engaging.
Why Upgrade?
If you already own a D-03X, you know how musical and satisfying it can be. But the D-03R is not simply a small refresh—it’s a thoughtfully engineered leap forward. With its new ROHM DACs, reinforced chassis, expanded power supply, balanced output stage, and OLED display, it provides a digital playback experience that is unmistakably more refined.
For someone stepping into Luxman digital for the first time, the D-03R represents the pinnacle of what a modern disc player and DAC can deliver at this level. For existing Luxman owners, it offers the opportunity to hear familiar recordings anew, with greater nuance, power, and realism.
Conclusion: The Next Step in Digital Musicality
The Luxman D-03X will always be remembered as the player that set a high standard for performance and value in the Luxman lineup. But the D-03R is the evolution—a statement of what Luxman’s relentless pursuit of perfection can achieve. It is more than an upgrade; it is a reimagining of what a digital source can bring to a high-end system.
For those ready to experience the finest in modern digital playback while keeping Luxman’s legendary warmth and musicality, the D-03R is not just a player. It is an investment in years of deeper, more rewarding listening.
